Installation - Lower

  1. Position lower torque strut into mounting locations.
  2. Install mounting bolts and perform torque strut adjustment procedure (Refer to ENGINE TORQUE STRUT ADJUSTMENT ).
  3. Install pencil strut and tighten nuts to 58 N.m (43 ft. lbs) (Fig 1).

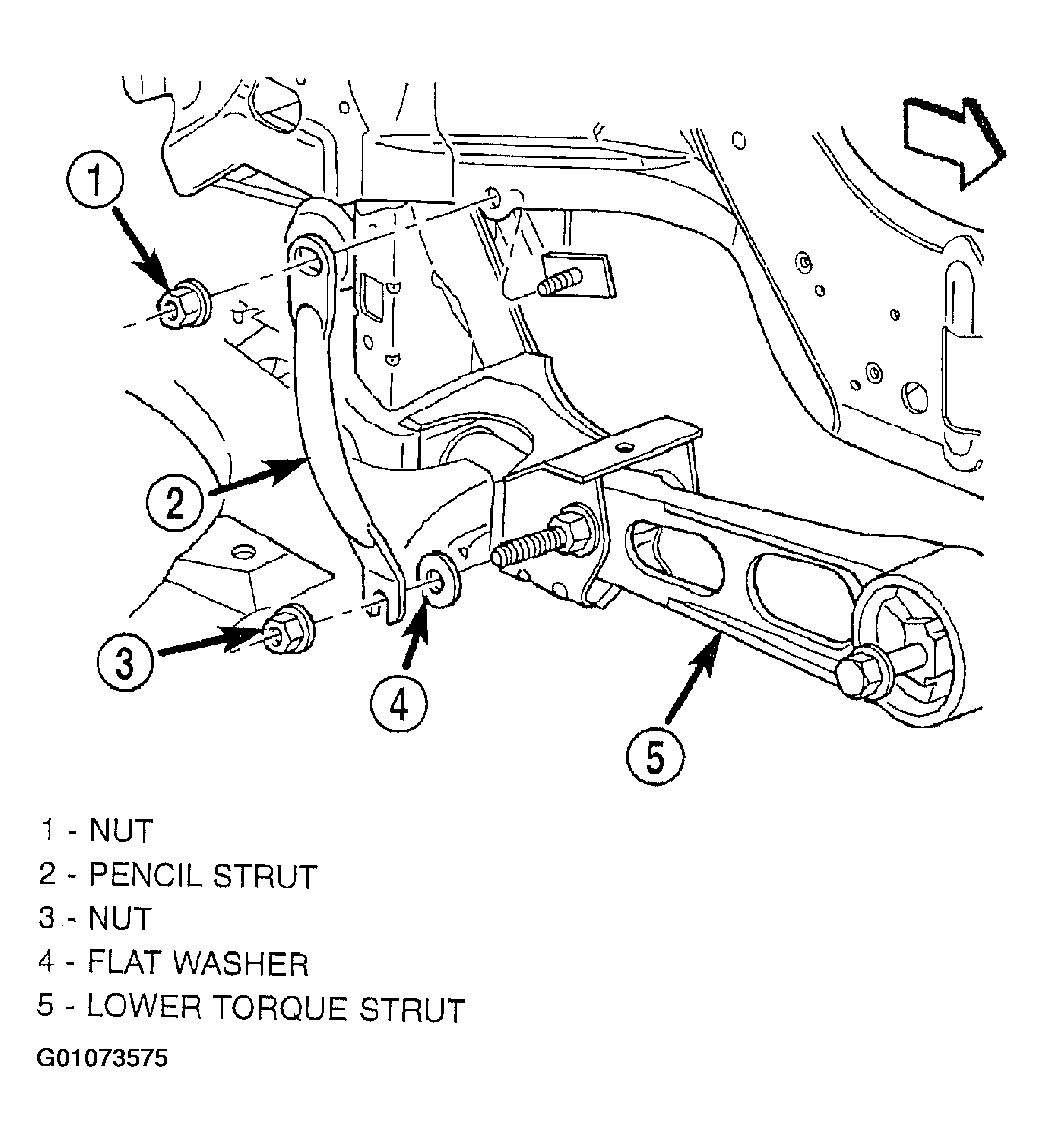

    Fig 1: Installing Pencil Strut
    G01073575Courtesy of DAIMLERCHRYSLER CORP.

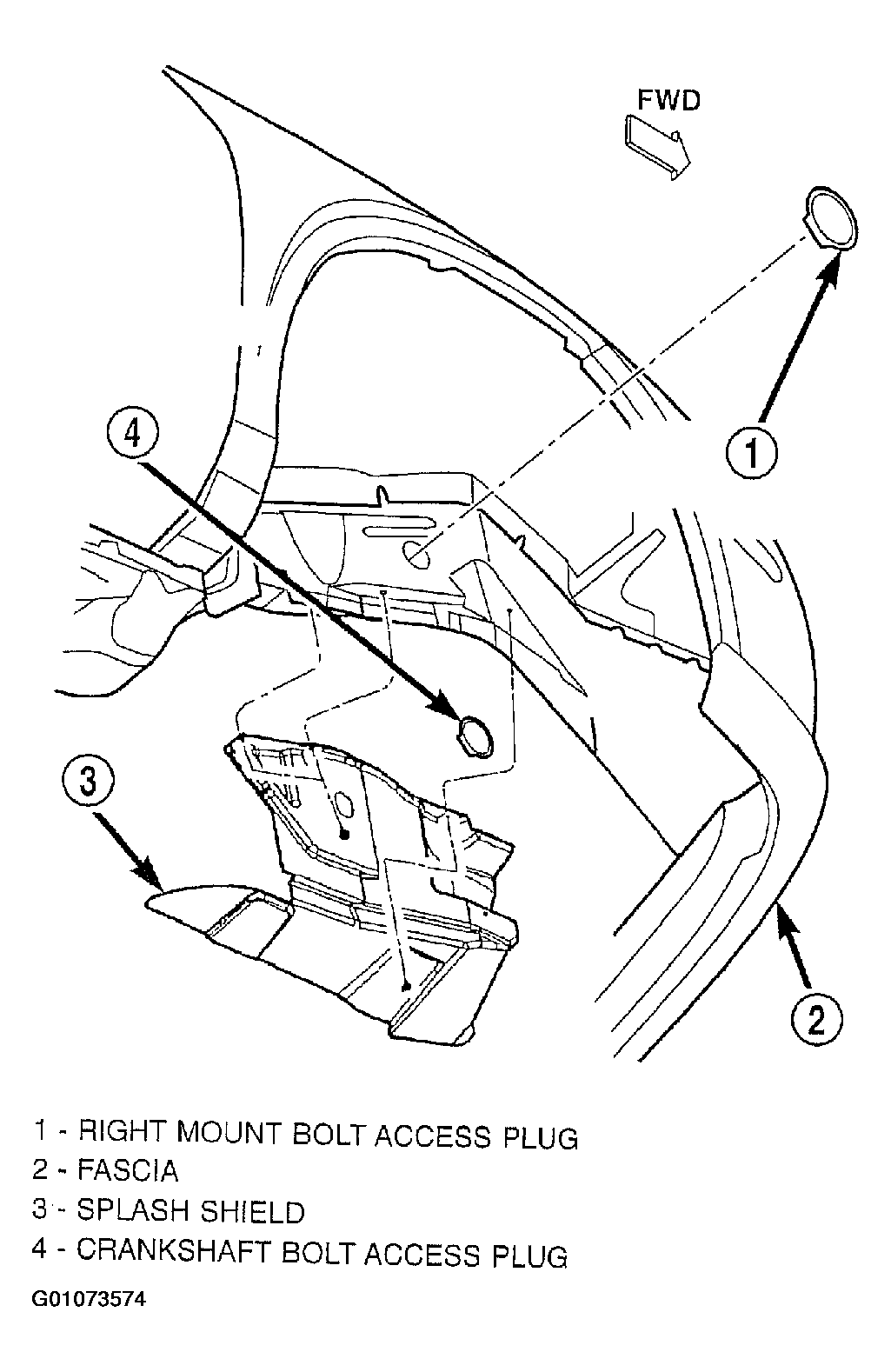

  4. Install accessory belt splash shield (Figure) and lower vehicle.
