Speed Control Servo (2.0L/2.4L) Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Speed Control Servo (2.0L/2.4L) Connector End View

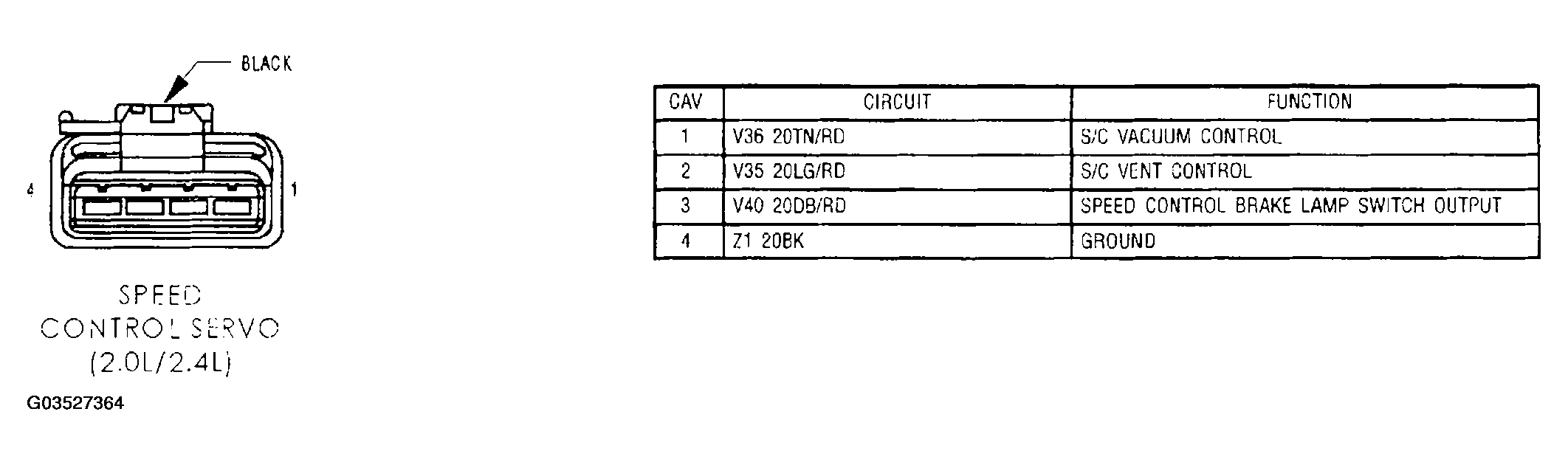

Fig 1: Speed Control Servo (2.0L/2.4L) Connector End View
Courtesy of CHRYSLER GROUP, LLC
