Ambient Temperature Sensor (Except 2.4L Base) Connector End View

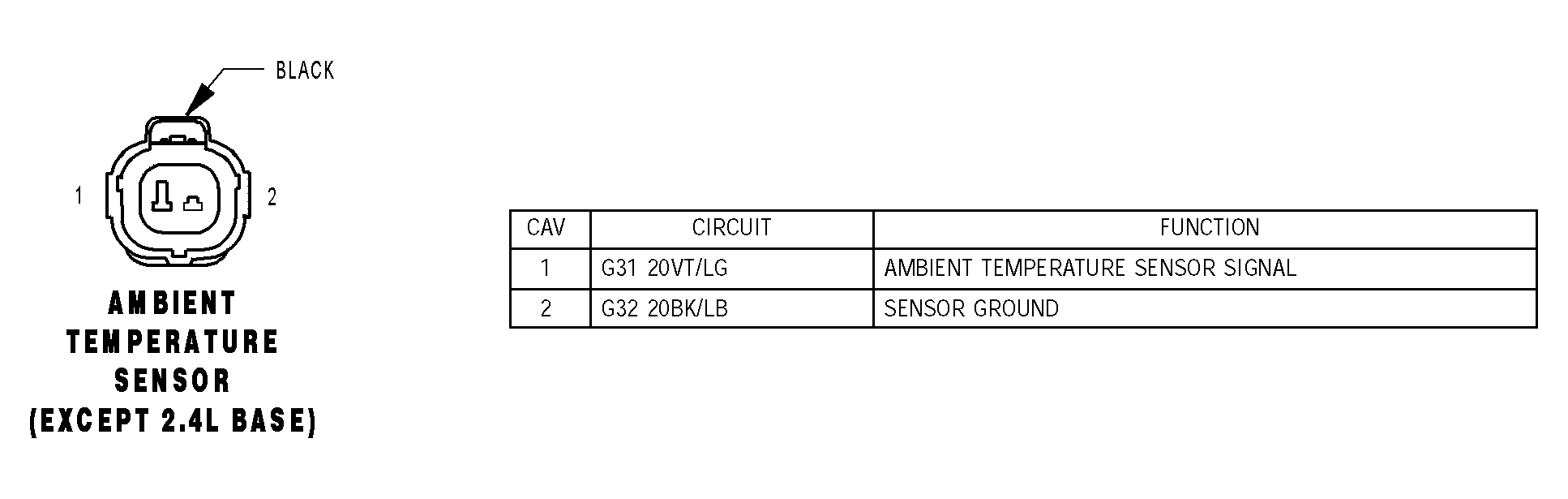

Fig 1: Ambient Temperature Sensor (Except 2.4L Base) Connector End View
Courtesy of CHRYSLER GROUP, LLC
