Rack & Pinion Power Steering System: Column: Description

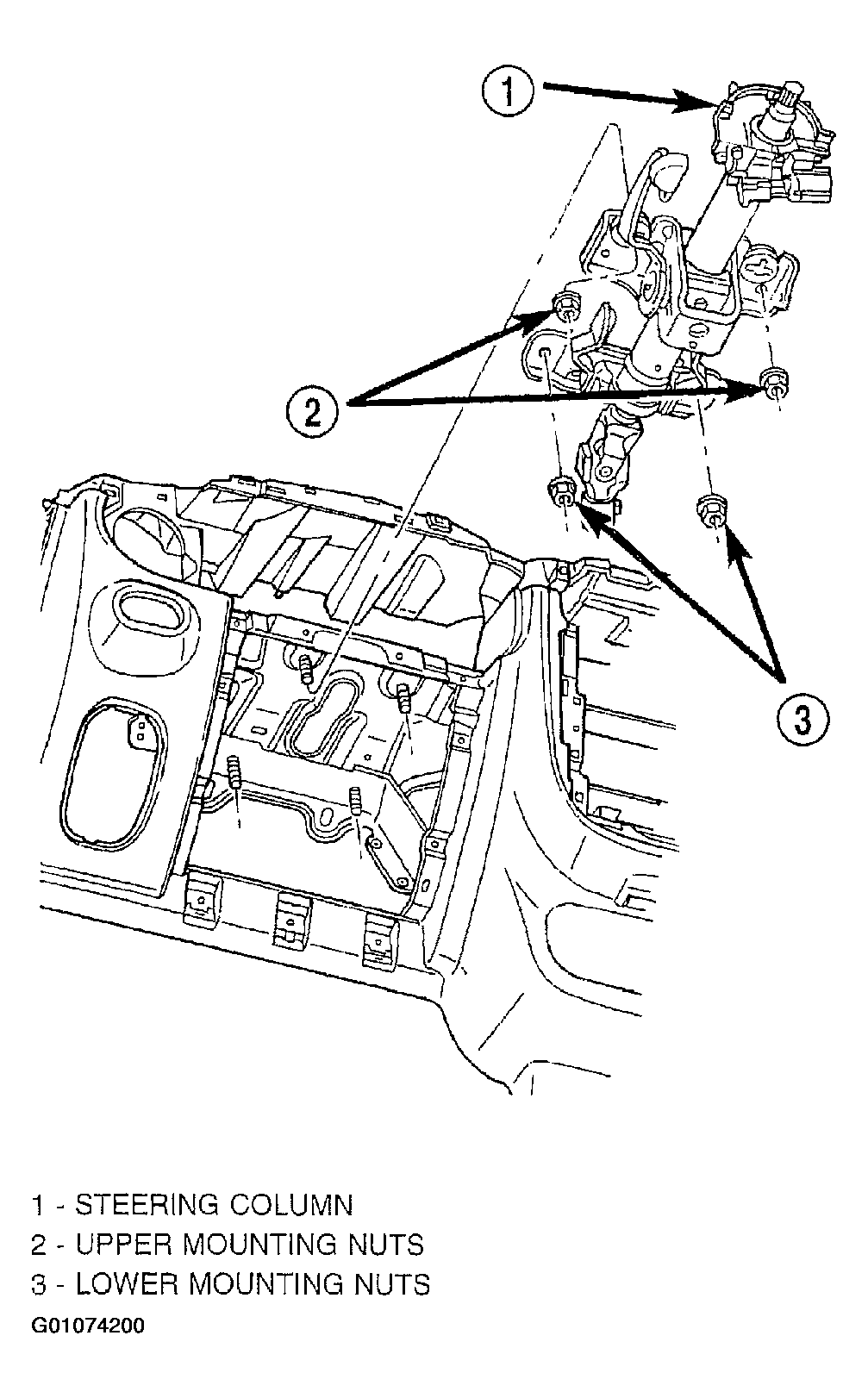

This vehicle is equipped with a tilt type steering column. The steering column is designed to be serviced only as complete assembly if an internal component is found to be defective. See Figure . The shaft, bearings and upper coupling are all serviced with the column.

The replaceable components on the steering column assembly are:

• The key cylinder
• The ignition switch
• The multi-function switch
• The clockspring
• The trim shrouds
• The steering wheel
• The driver airbag module

These components can be serviced without removal of the steering column from the vehicle.
