Shift Mechanism: Installation

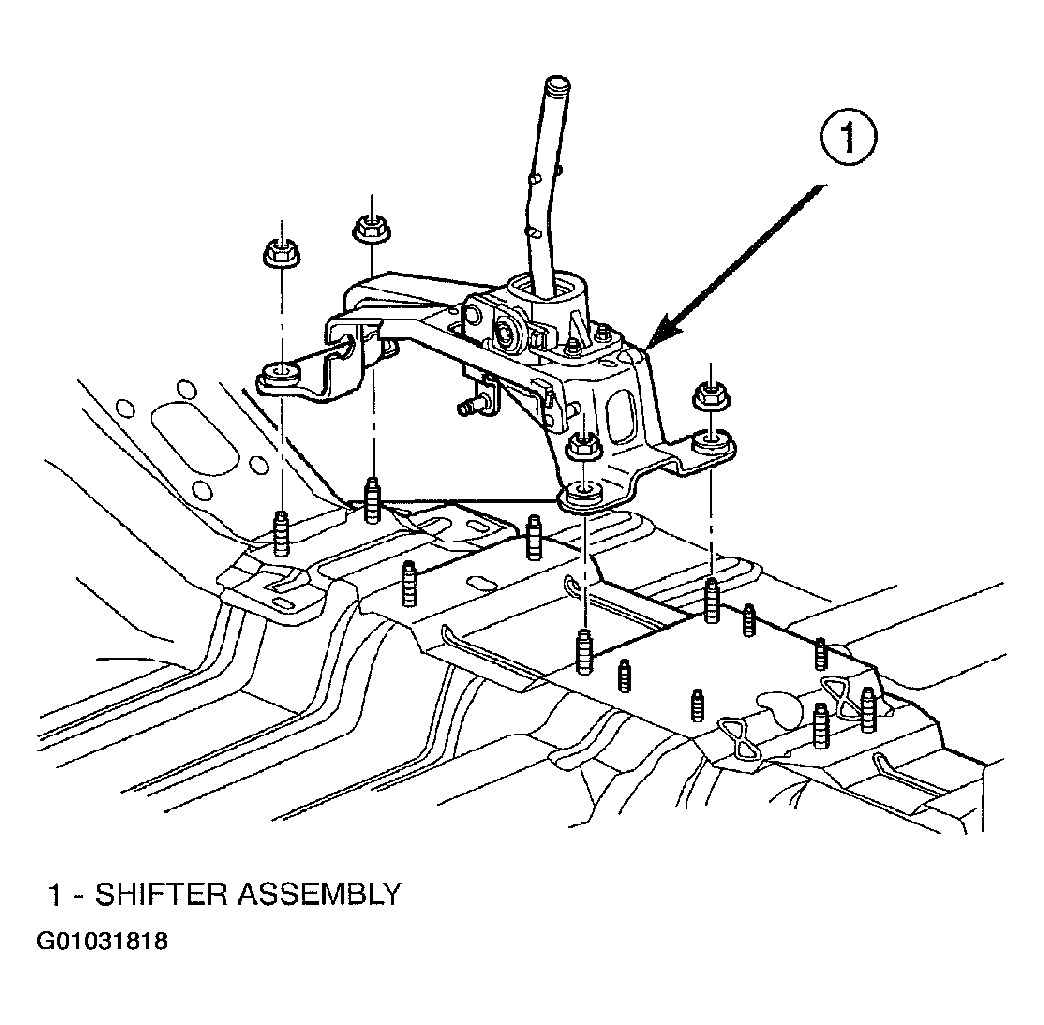

- Install shifter assembly. to floor pan. (Figure). Install and tighten four nuts to 12 N.m (105 in. lbs.).

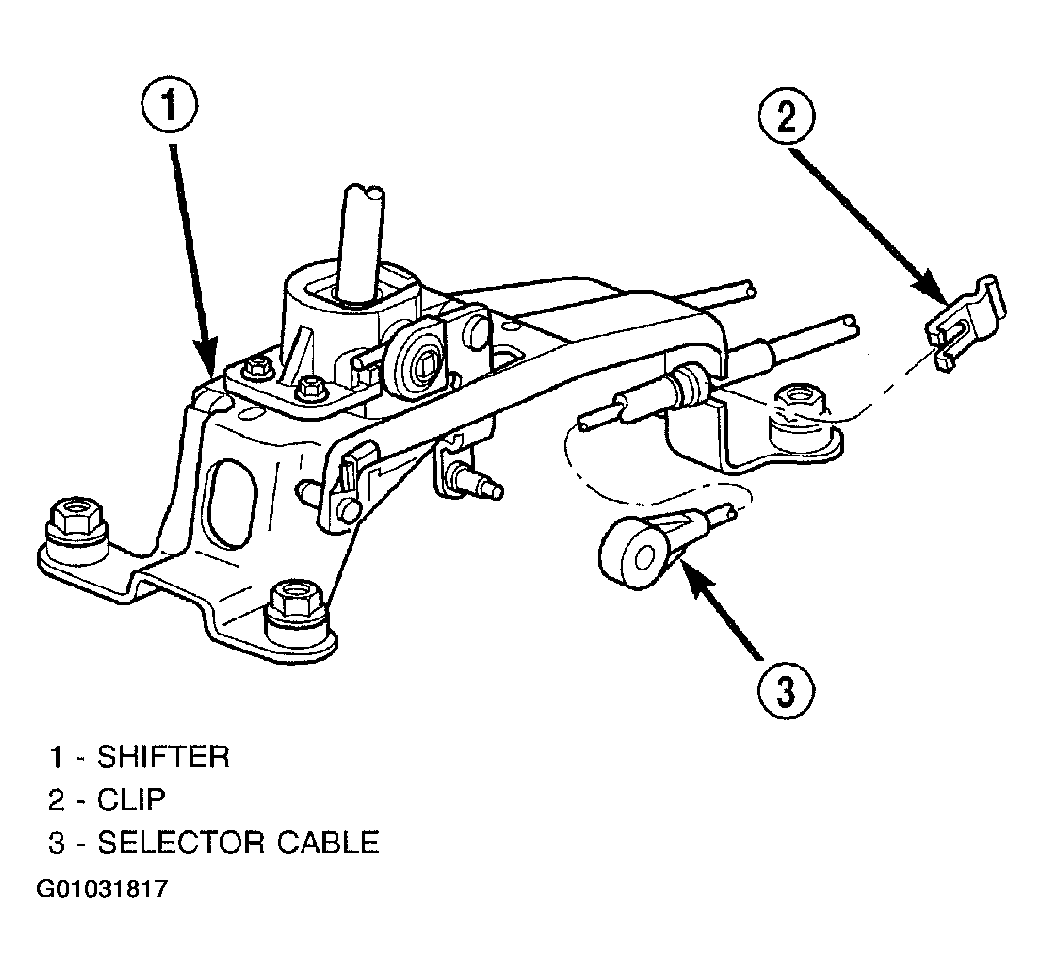

- Install selector cable to shifter lever and secure cable to shifter bracket. Install clip. (Figure).

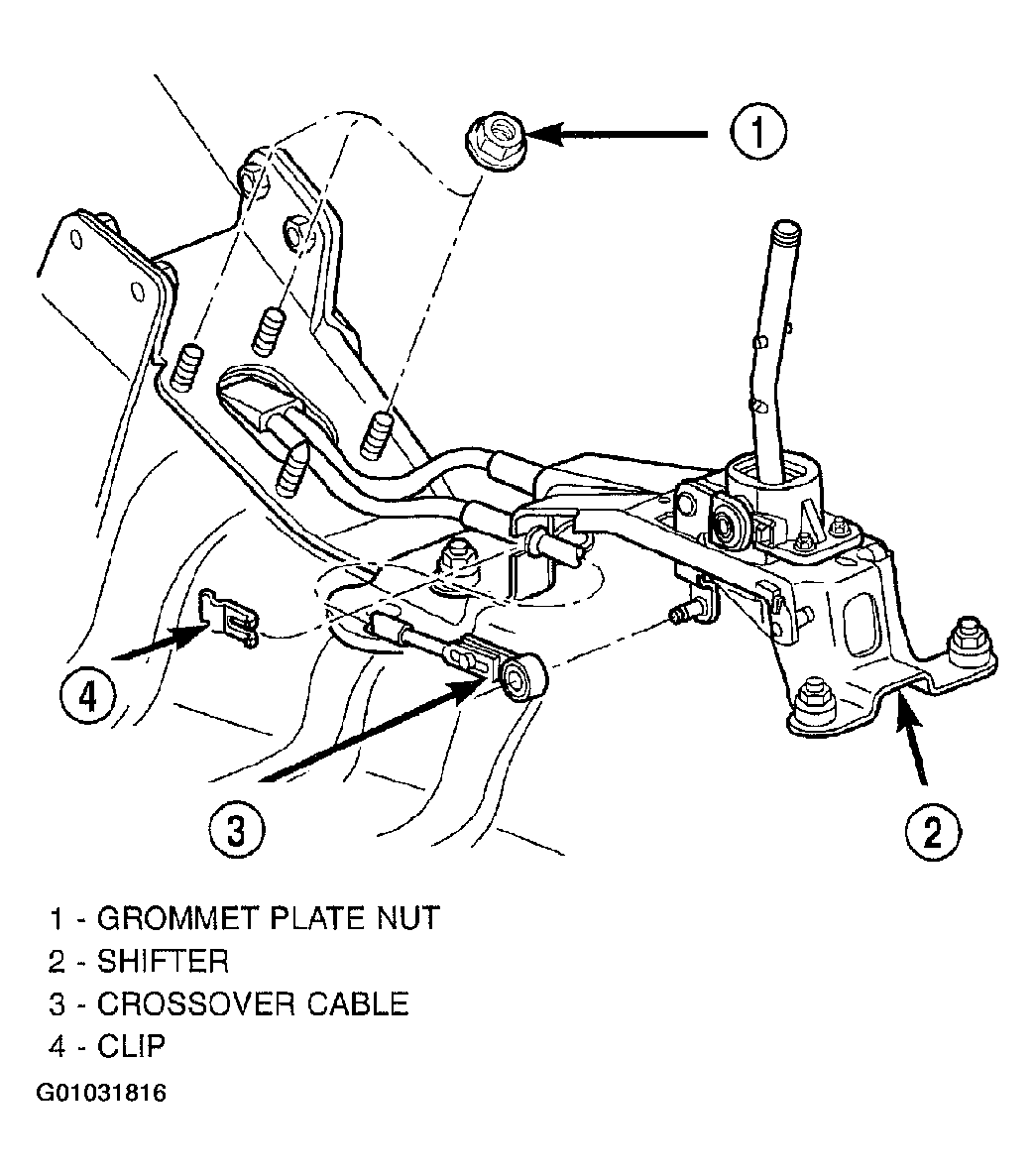

- Install crossover cable to shifter lever and secure cable to shifter bracket. Install clip. (Figure).

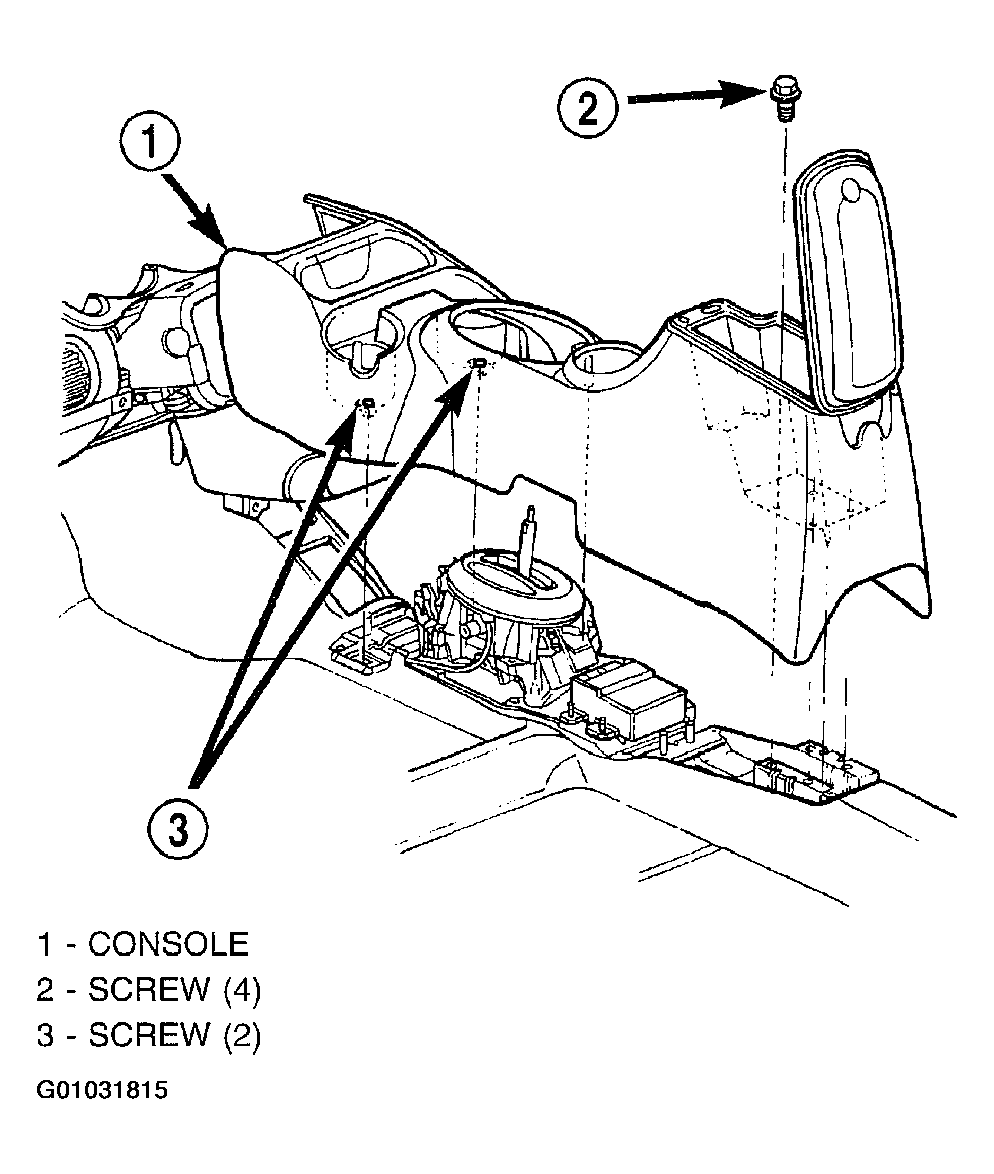

- Install center console assembly. (Figure).
- Install knob/boot assembly to shifter lever, align knob to three o'clock position, push knob down to engage spring and rotate counter clockwise.
- Locate boot to console at forward tab and secure to console with retaining tabs.
