Wheel Alignment Specifications

For wheel alignment specifications, see Fig 1 or Fig 2 .

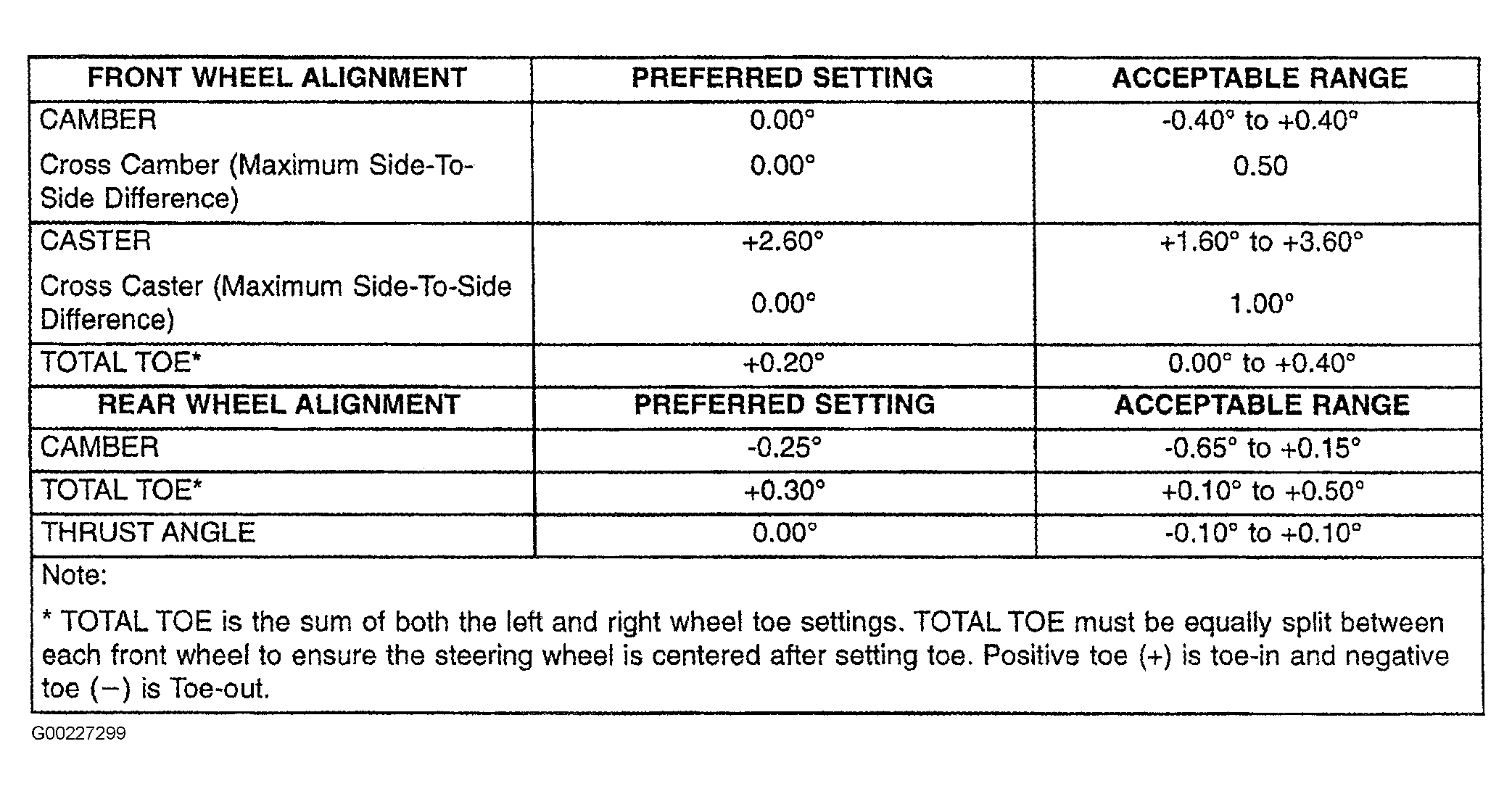

Fig 1: Wheel Alignment Specifications (Without ACR Package)

Courtesy of CHRYSLER CORP.

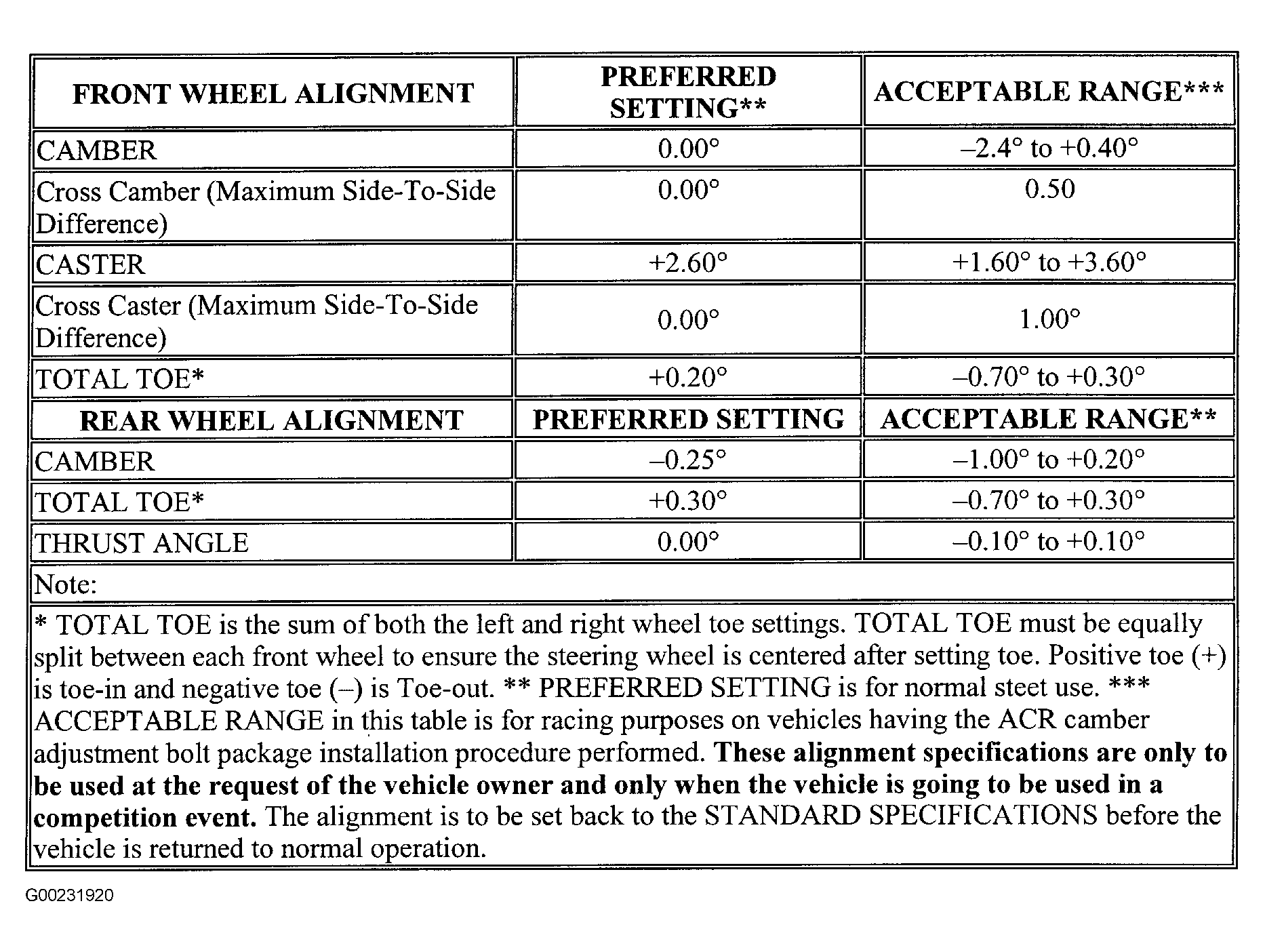

Fig 2: Wheel Alignment Specifications (With ACR Package)

Courtesy of DAIMLERCHRYSLER CORPORATION
