Power Fold-Away Mirror Switch

Remove power mirror switch from mounting position. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION.
Using an ohmmeter, test for continuity between the terminals of the switch. See Fig 1 and Fig 2 .
NOTE: When testing using the chart in Fig 1 and Fig 2 , be certain to read the chart correctly. Example: When testing left mirror "DOWN", terminals No. 1, 9, 10 will show continuity to each other, and terminals No. 3, 4, 5 will show continuity to each other.
If test results are not as specified, replace the switch.

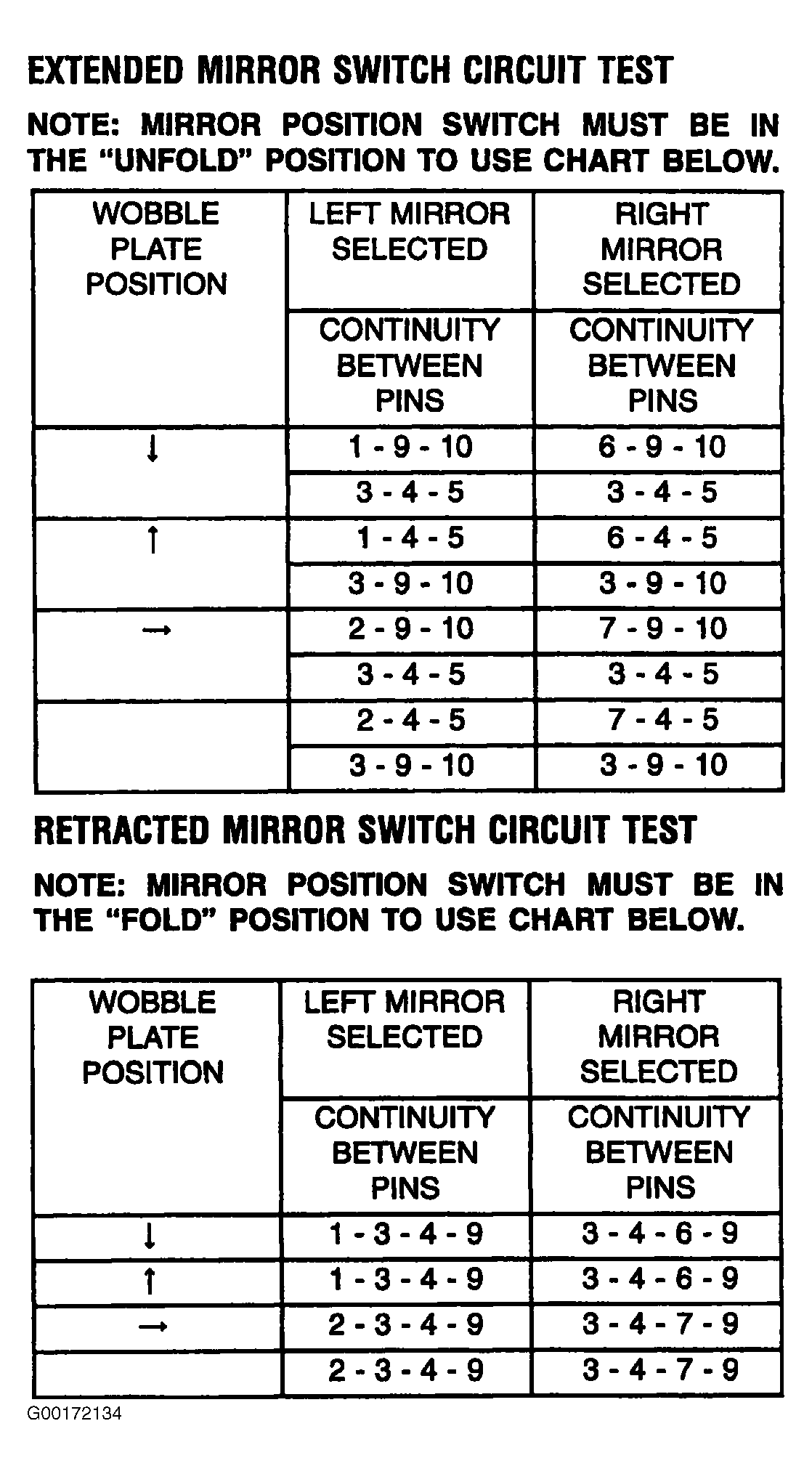

Fig 1: Testing Mirror Switch Circuit

Courtesy of DAIMLERCHRYSLER CORP.

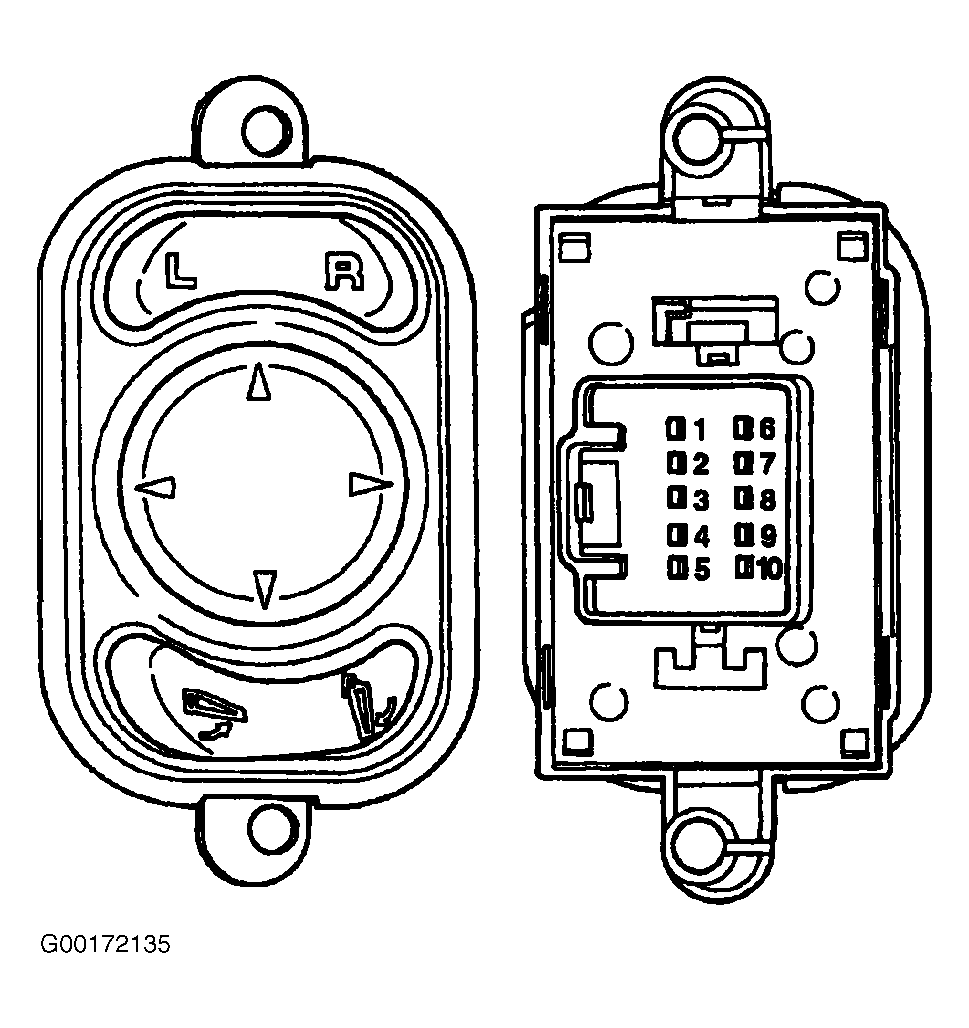

Fig 2: Identifying Power Mirror Fold-Away Switch

Courtesy of DAIMLERCHRYSLER CORP.
