Airbag Control Module Connector End View

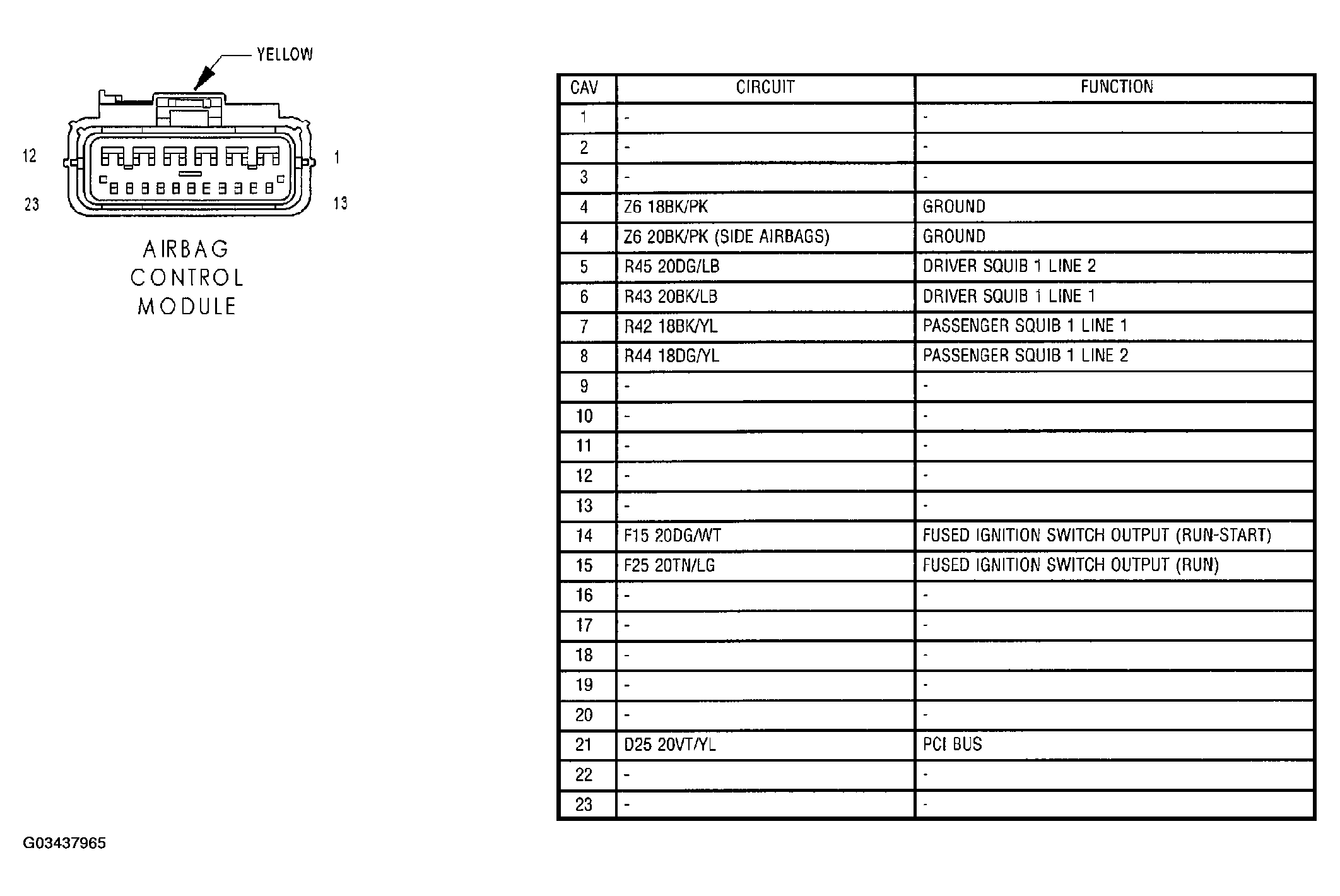

Fig 1: Airbag Control Module Connector End View
G03437965Courtesy of CHRYSLER GROUP, LLC
