Component Locations

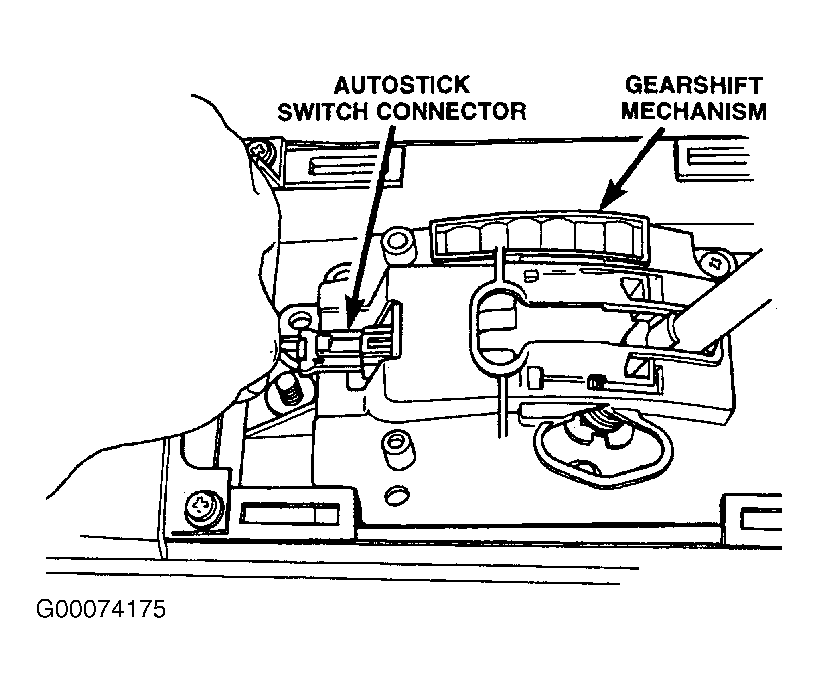

Fig 1: Locating Autostick Connector
G00074175Courtesy of DAIMLERCHRYSLER CORPORATION

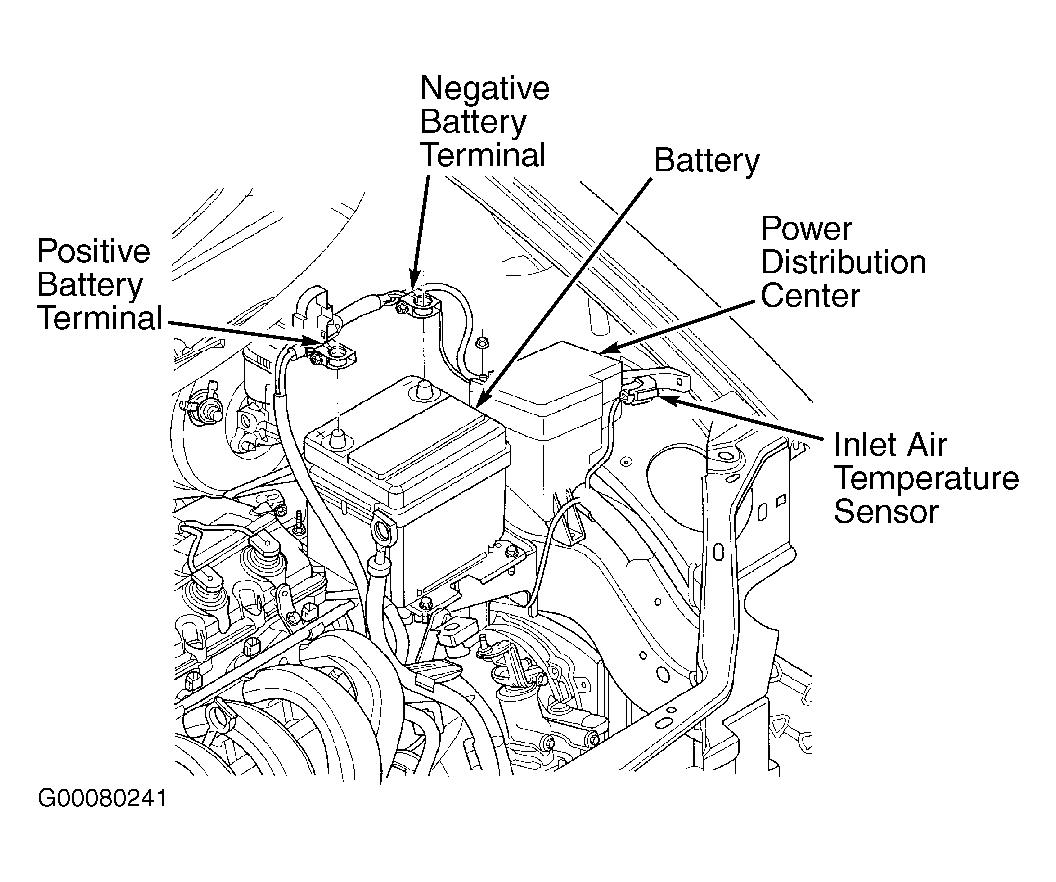

Fig 2: Locating Power Distribution Center
G00080241Courtesy of DAIMLERCHRYSLER CORPORATION

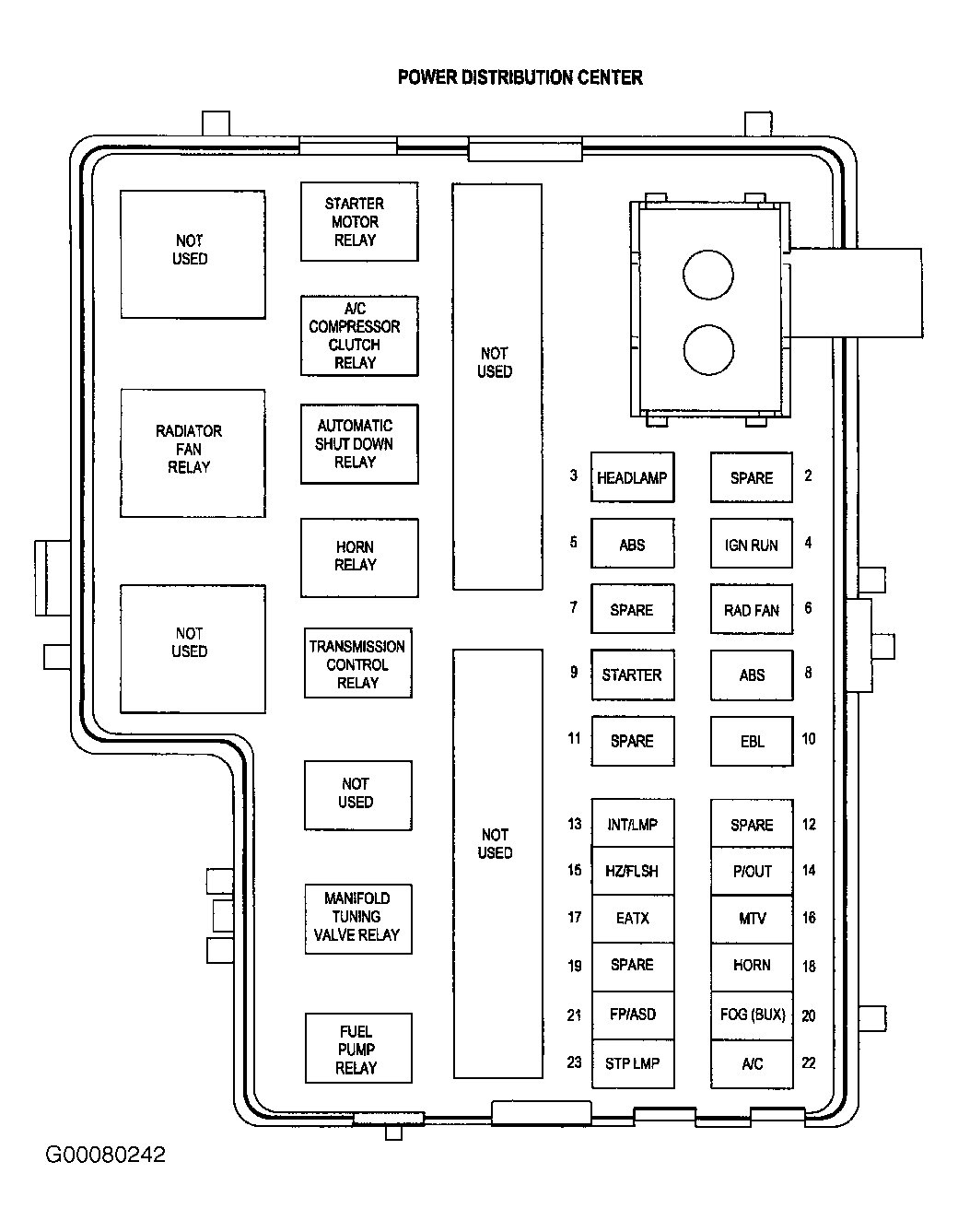

Fig 3: Identifying Power Distribution Center Relays
G00080242Courtesy of DAIMLERCHRYSLER CORPORATION

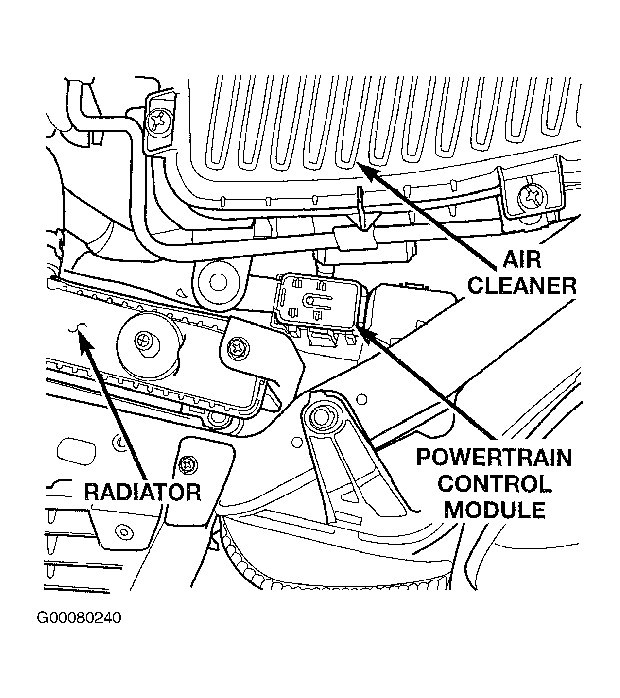

Fig 4: Locating Powertrain Control Module
G00080240Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 5: Locating Transmission Control Module
G00080239Courtesy of DAIMLERCHRYSLER CORPORATION
