Oil Pump: Description

The oil pump is located in the pump housing, inside the bell housing of the transaxle case. (Fig 1). The oil pump consists of an inner and outer gear, a housing, and a cover that also serves as the reaction shaft support.

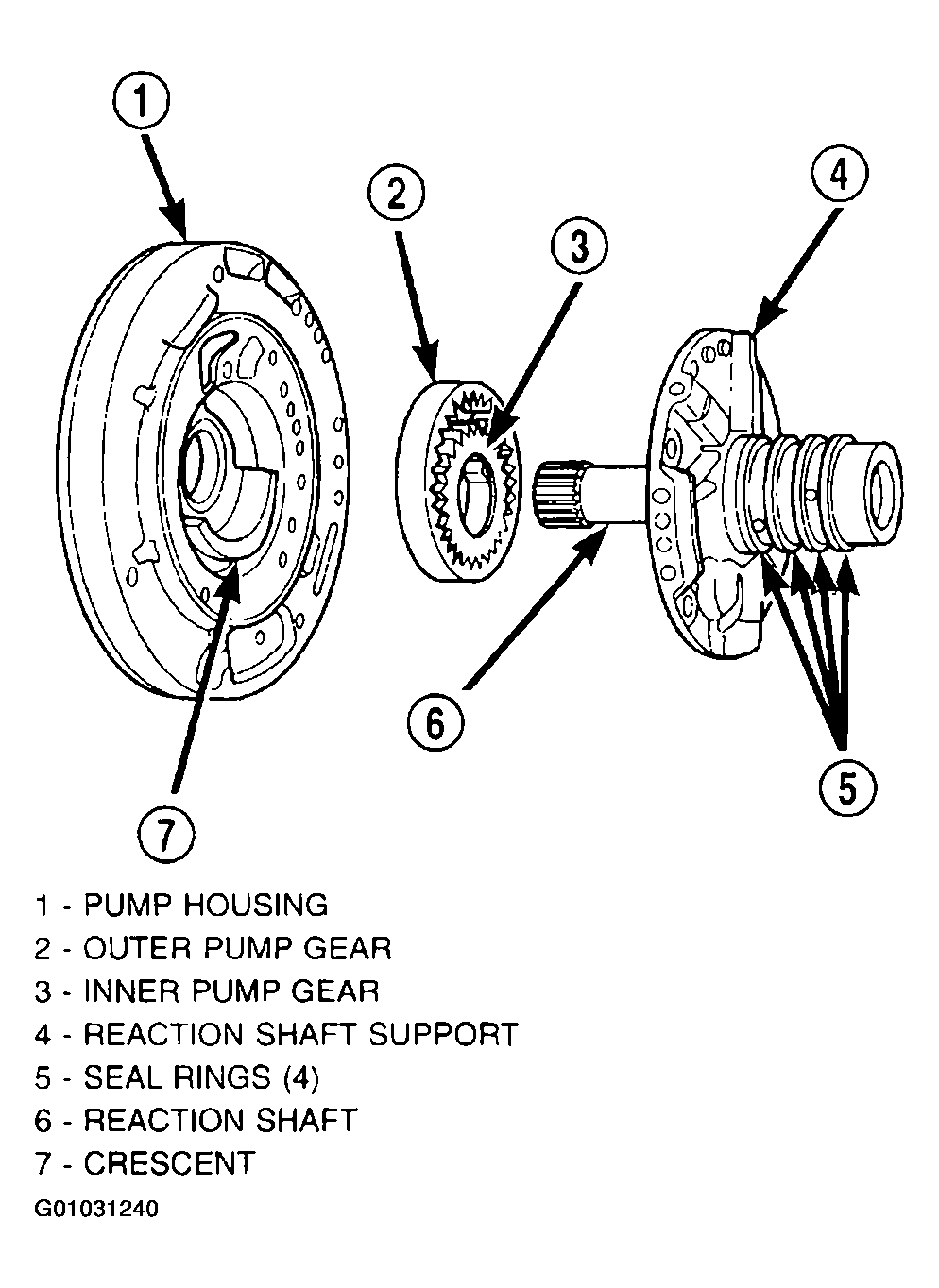

Fig 1: Identifying Oil Pump Assembly Components

Courtesy of DAIMLERCHRYSLER CORP.
