Sebring Coupe & Stratus Coupe

  1. Apply parking brake. Place gearshift lever in Neutral. Loosen lock nut on gearshift cable at manual control lever. See Fig 1 . Manual control lever is lever on transaxle on which gearshift cable is installed.
  2. Place manual control lever in Neutral. Lightly pull end of gearshift cable toward manual control lever and tighten lock nut on gearshift cable to 89 INCH lbs. (10 N.m). If gearshift cable is properly adjusted, engine should start only with gearshift lever in Park or Neutral.

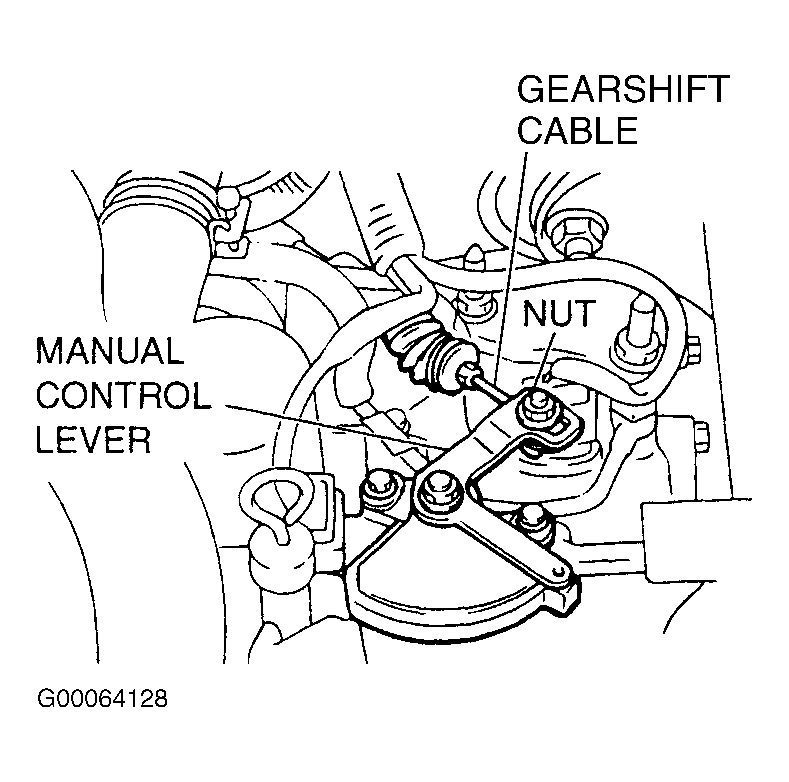

Fig 1: Adjusting Gearshift Cable (Sebring Coupe & Stratus Coupe)
G00064128Courtesy of DAIMLERCHRYSLER CORPORATION
