Transmission Side Inline Connector End View (C108)

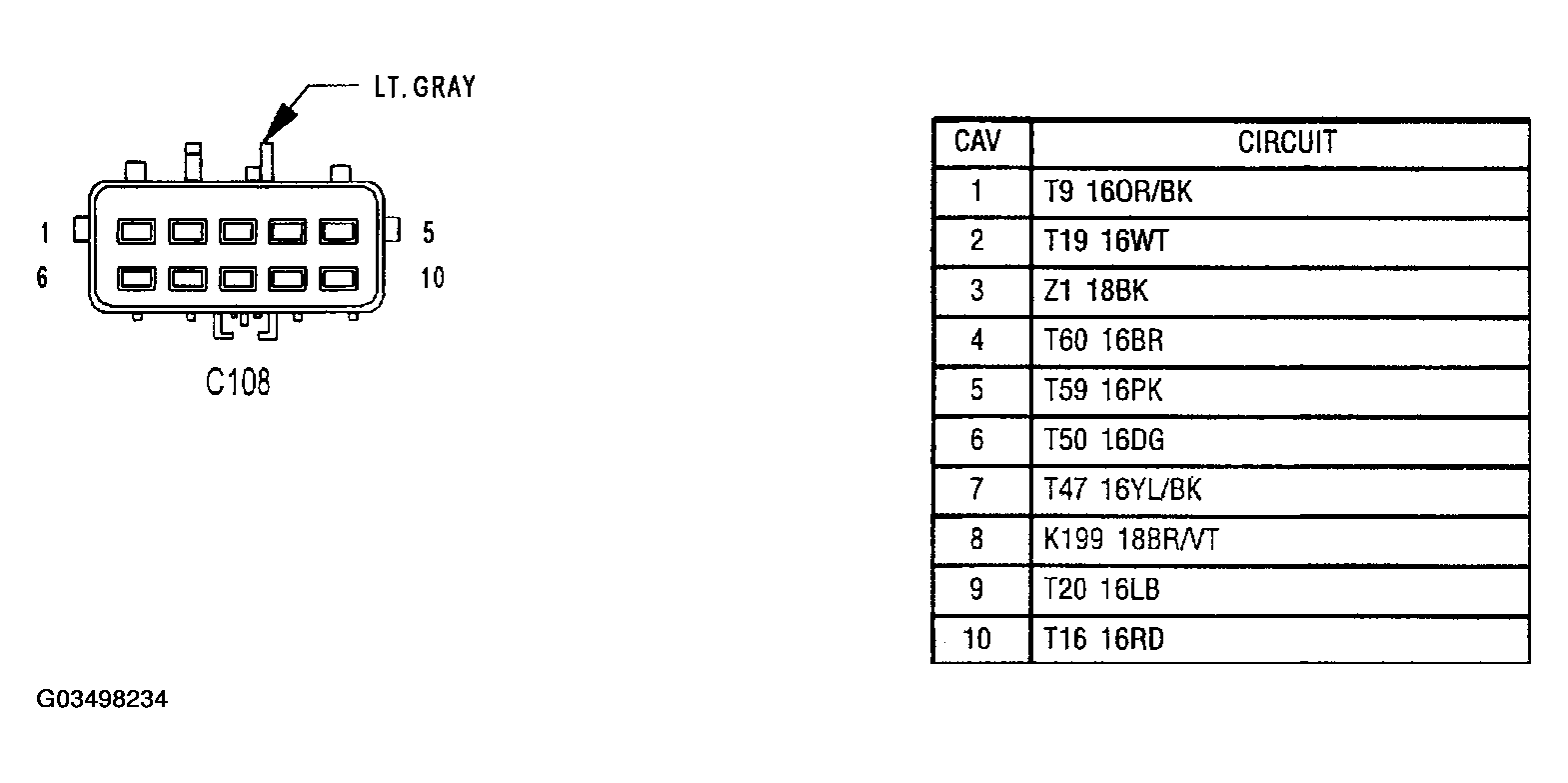

Fig 1: Transmission Side Inline Connector End View (C108)
Courtesy of CHRYSLER GROUP, LLC
