Sunroof Side Inline Connector End View (C204)

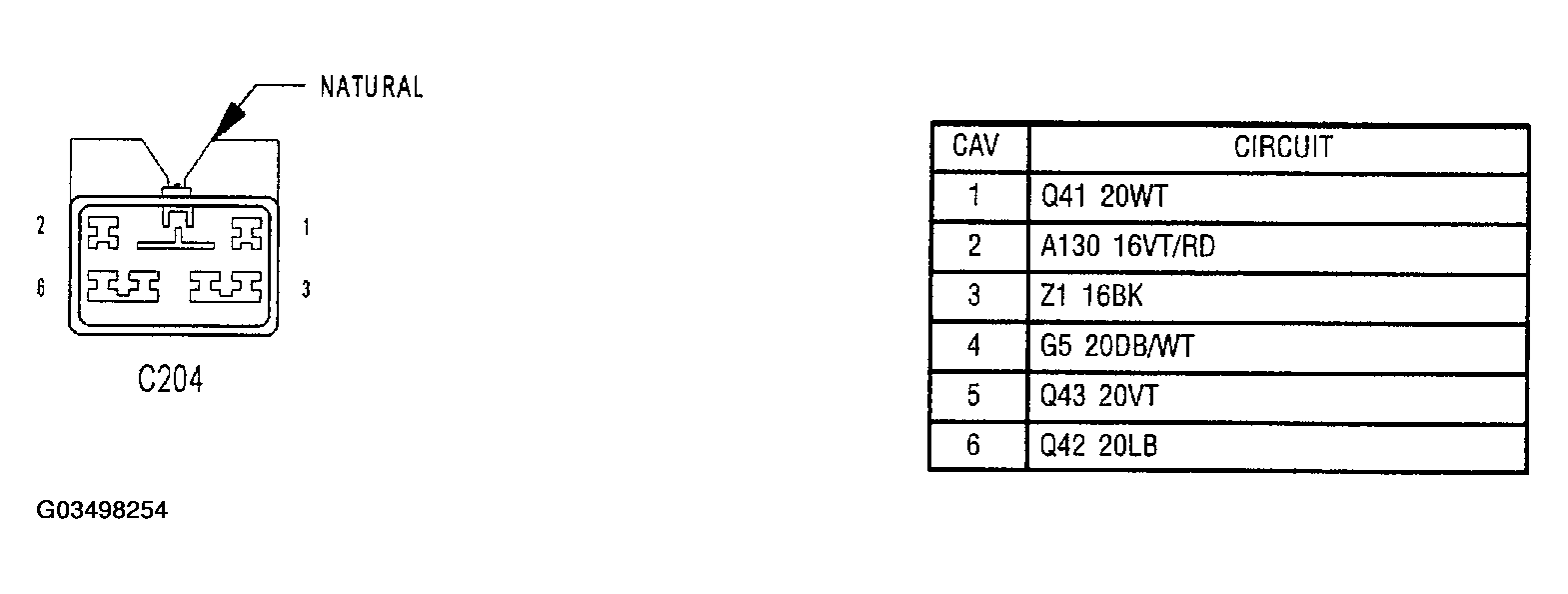

Fig 1: Sunroof Side Inline Connector End View (C204)
G03498254Courtesy of CHRYSLER GROUP, LLC
