Instrument Panel Side Inline Connector End View (C201)

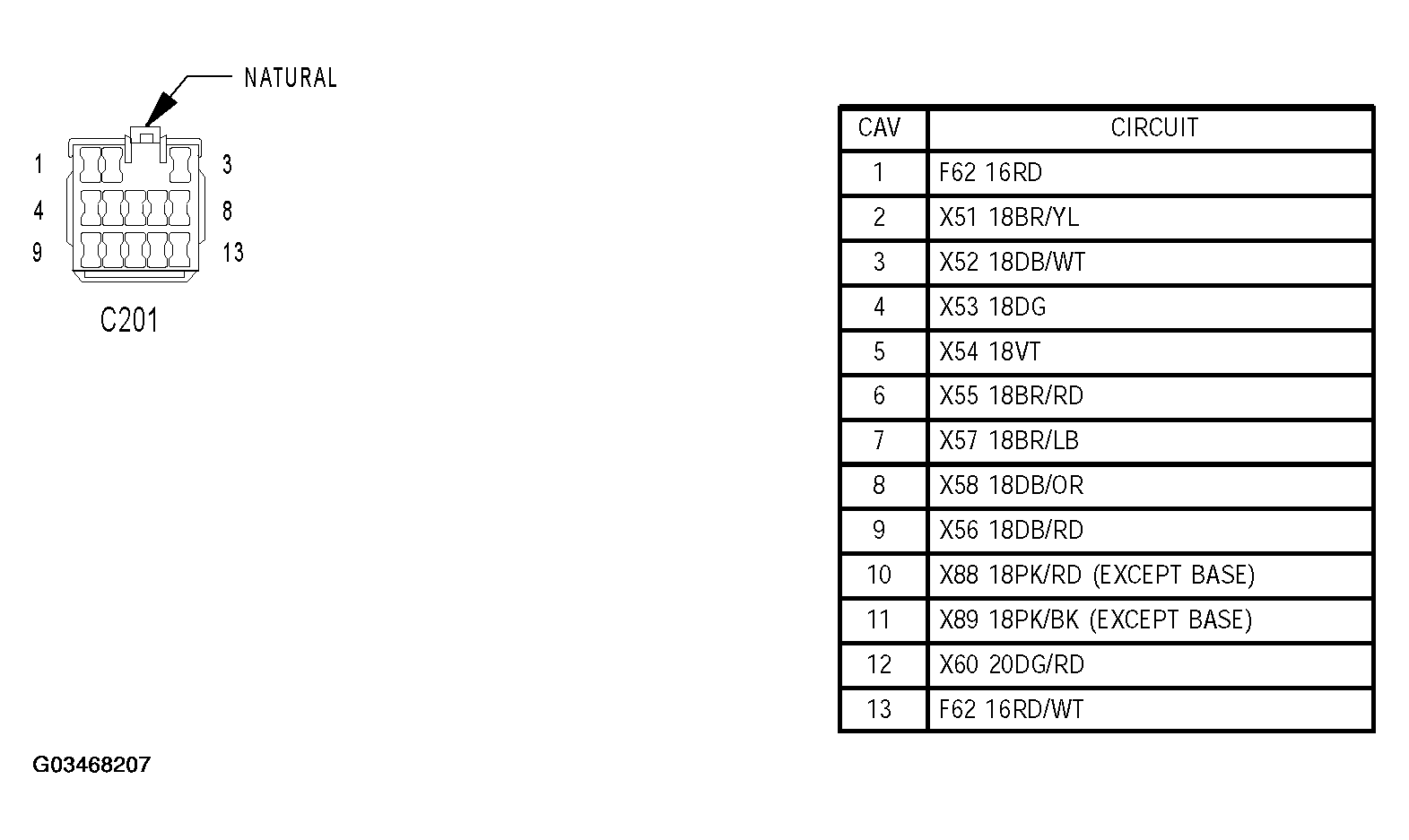

Fig 1: Instrument Panel Side Inline Connector End View (C201)
Courtesy of CHRYSLER GROUP, LLC
