Fluid Line/Hose: Service and Repair

TRANSMISSION OIL COOLER LINES

REMOVAL

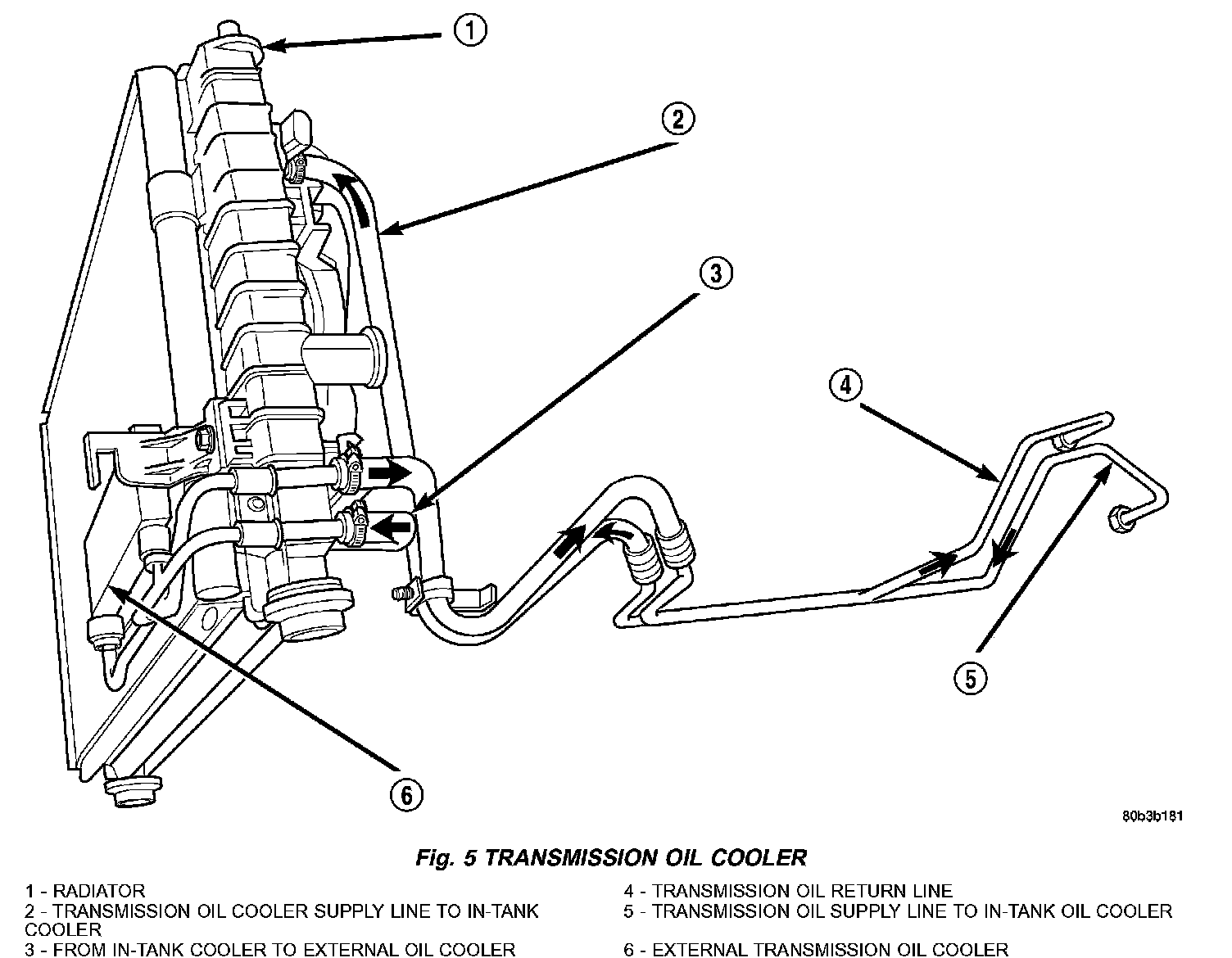

1. Loosen hose clamps at radiator connections and remove cooler hoses (Fig. 5).
2. Remove lines from transmission.
3. Remove lines from supports.

INSPECTION
Inspect all cooler lines and clamps. Replace as necessary.

INSTALLATION
1. Position cooler lines and connect to transmission. Torque flare nuts at transmission to 30 Nm (260 in. lbs.).
2. Connect cooler lines to supports.
3. Connect cooler hoses to radiator (Fig. 5). Tighten hose clamps to 3 Nm (28 in. lbs.).
4. Start engine and check transmission fluid level. Adjust as necessary.
