Antitheft and Alarm Systems

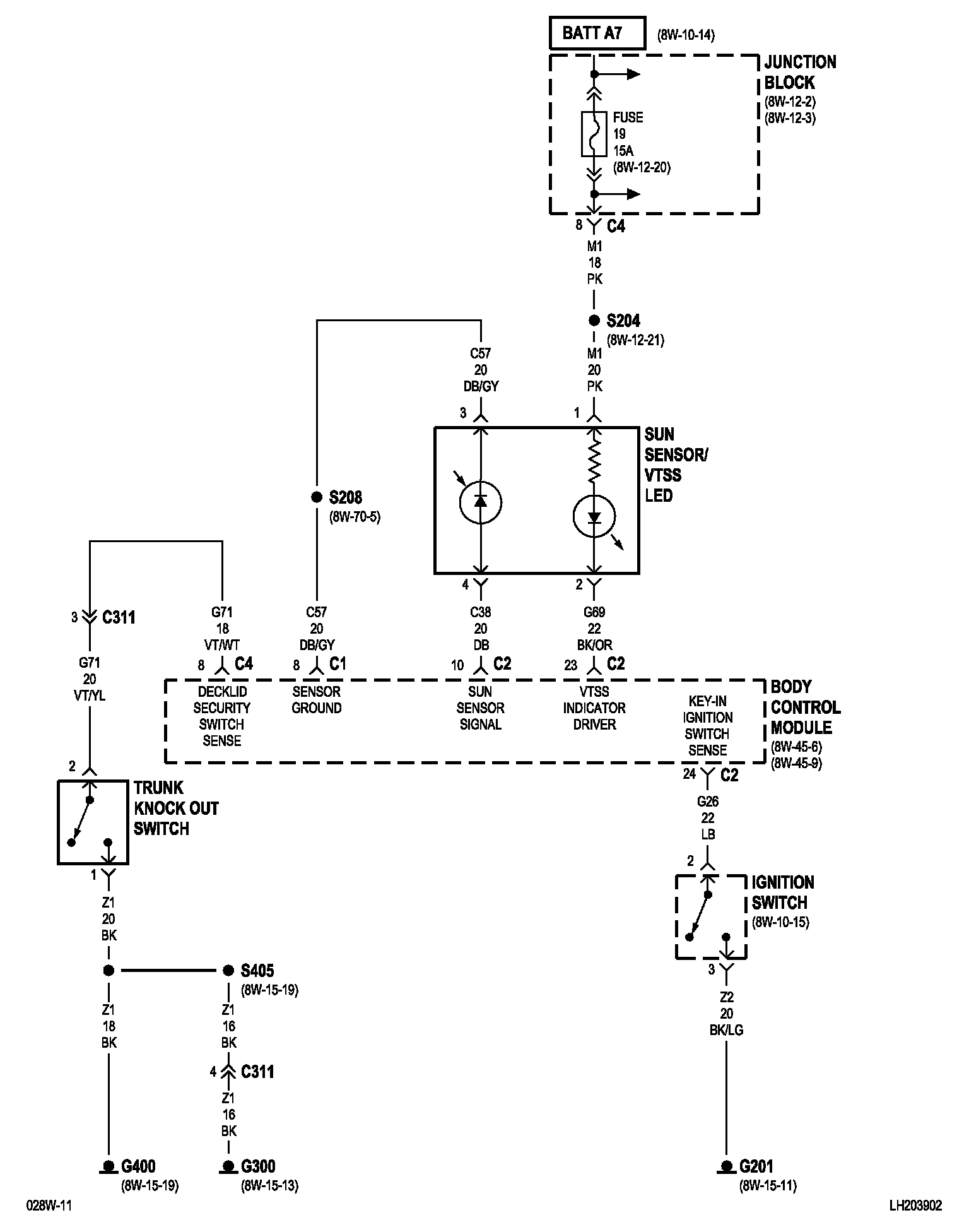

8w-39-2:

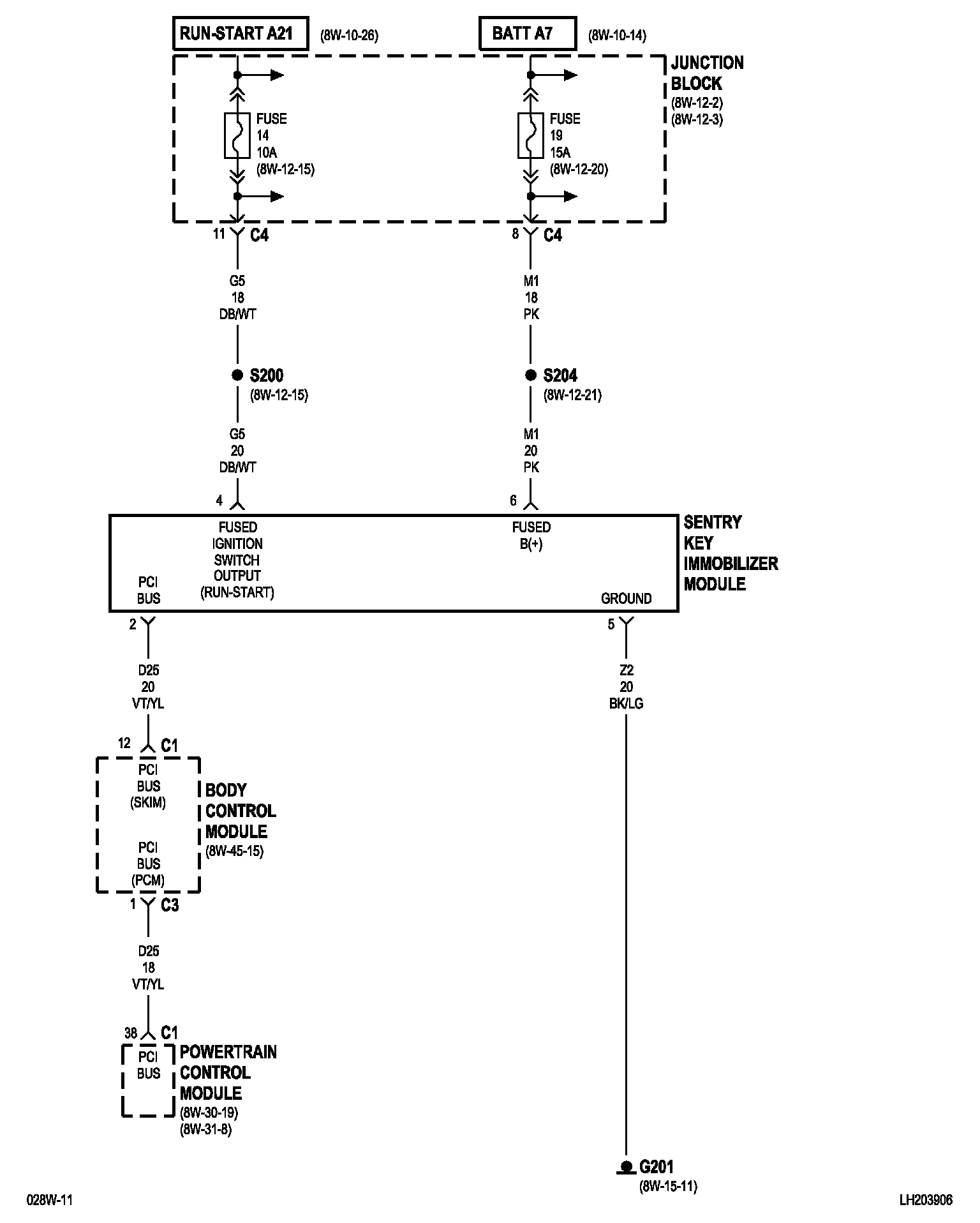

8w-39-3:

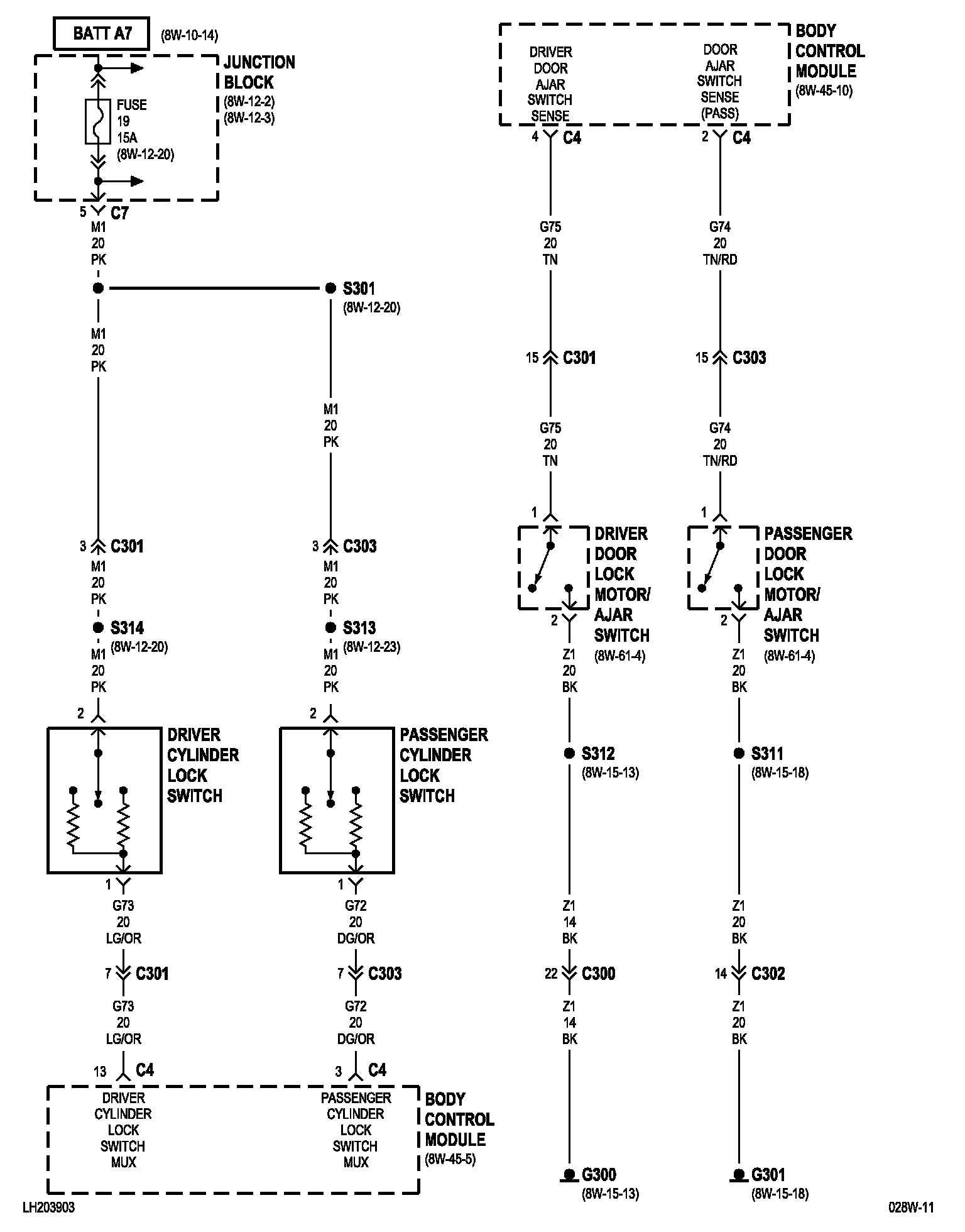

8w-39-4:

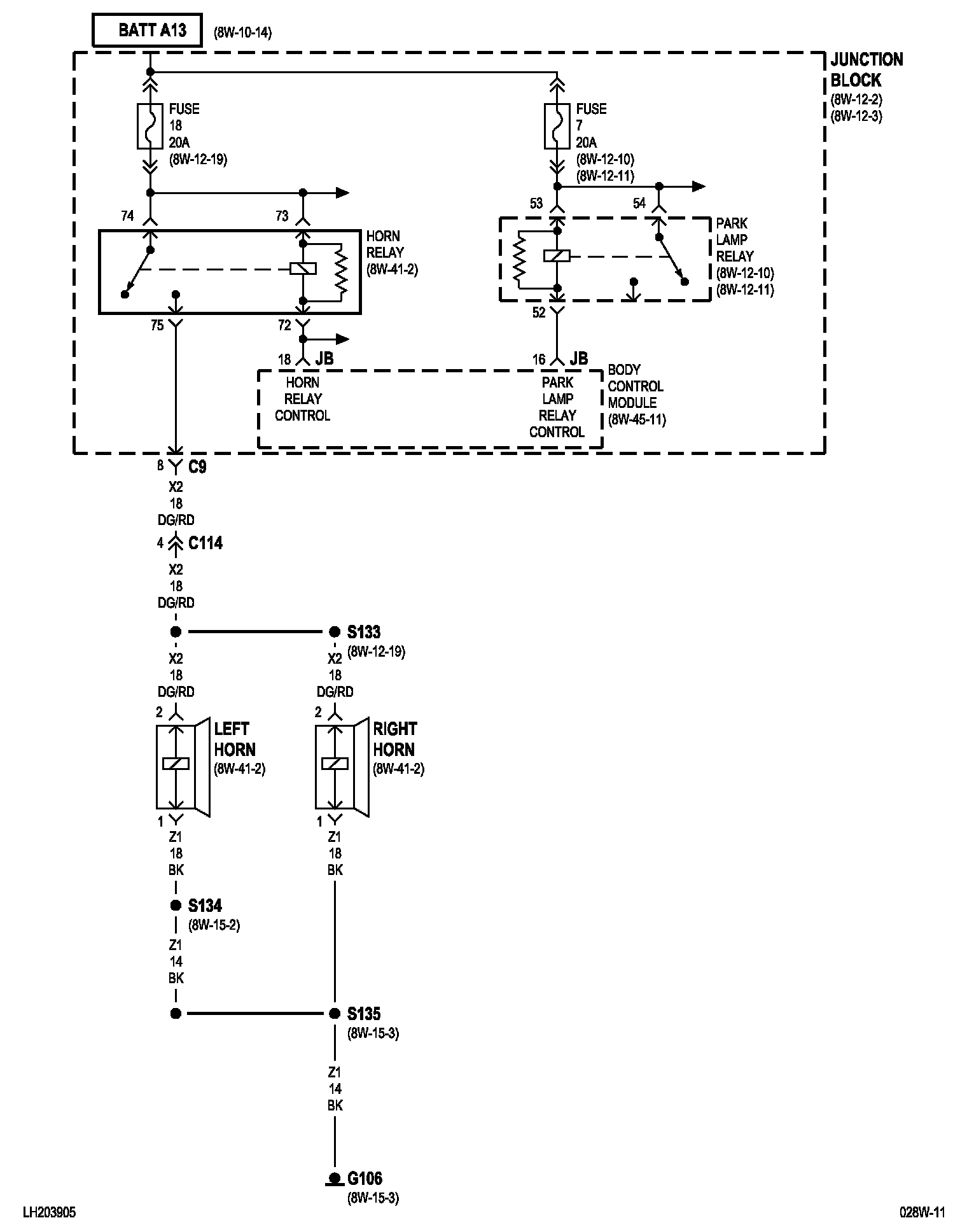

8w-39-5:




8w-39-6:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
