Power and Ground Distribution
>>
Fuse
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuse

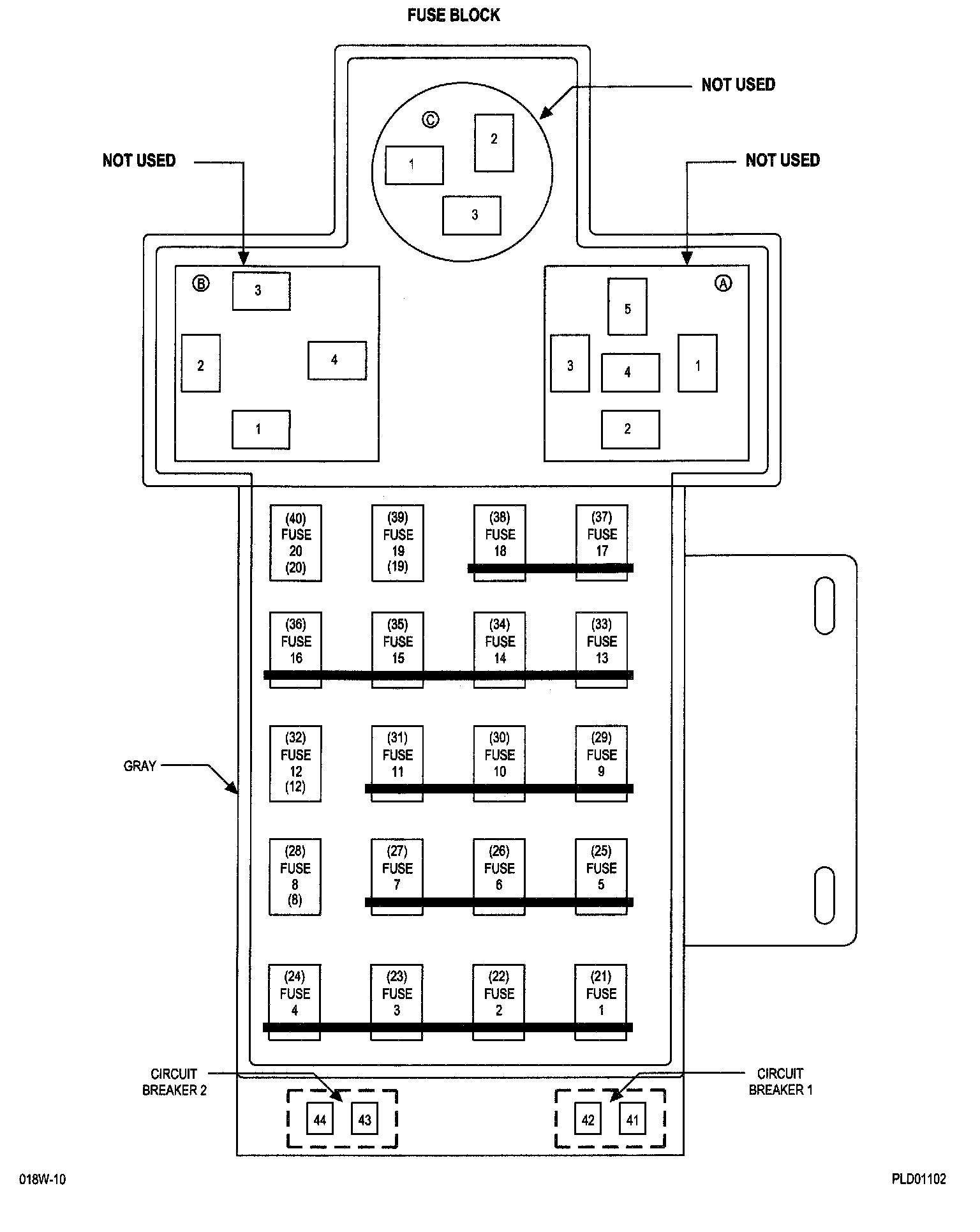

Fuse Block (LHD):

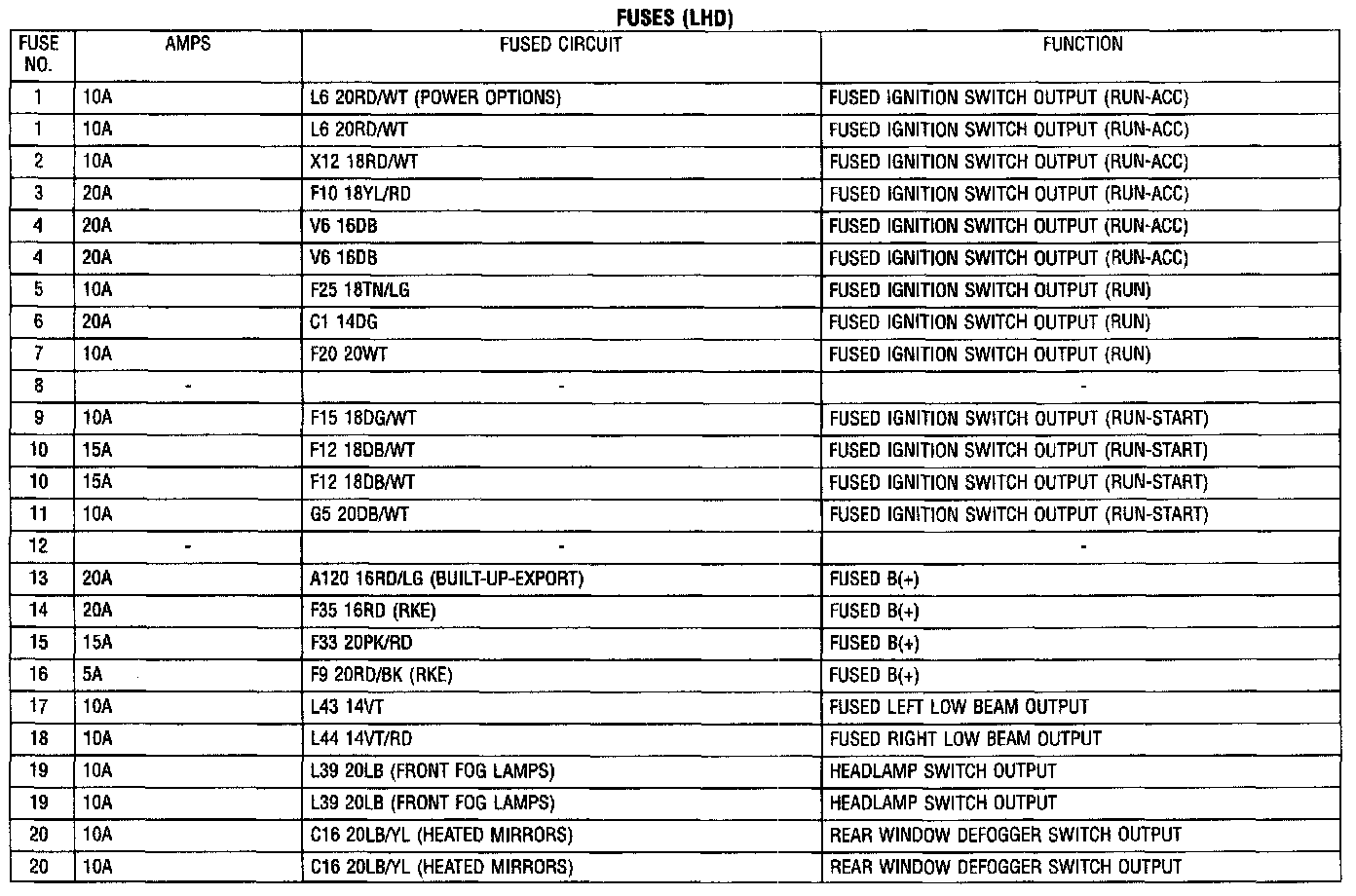

Fuses (LHD):

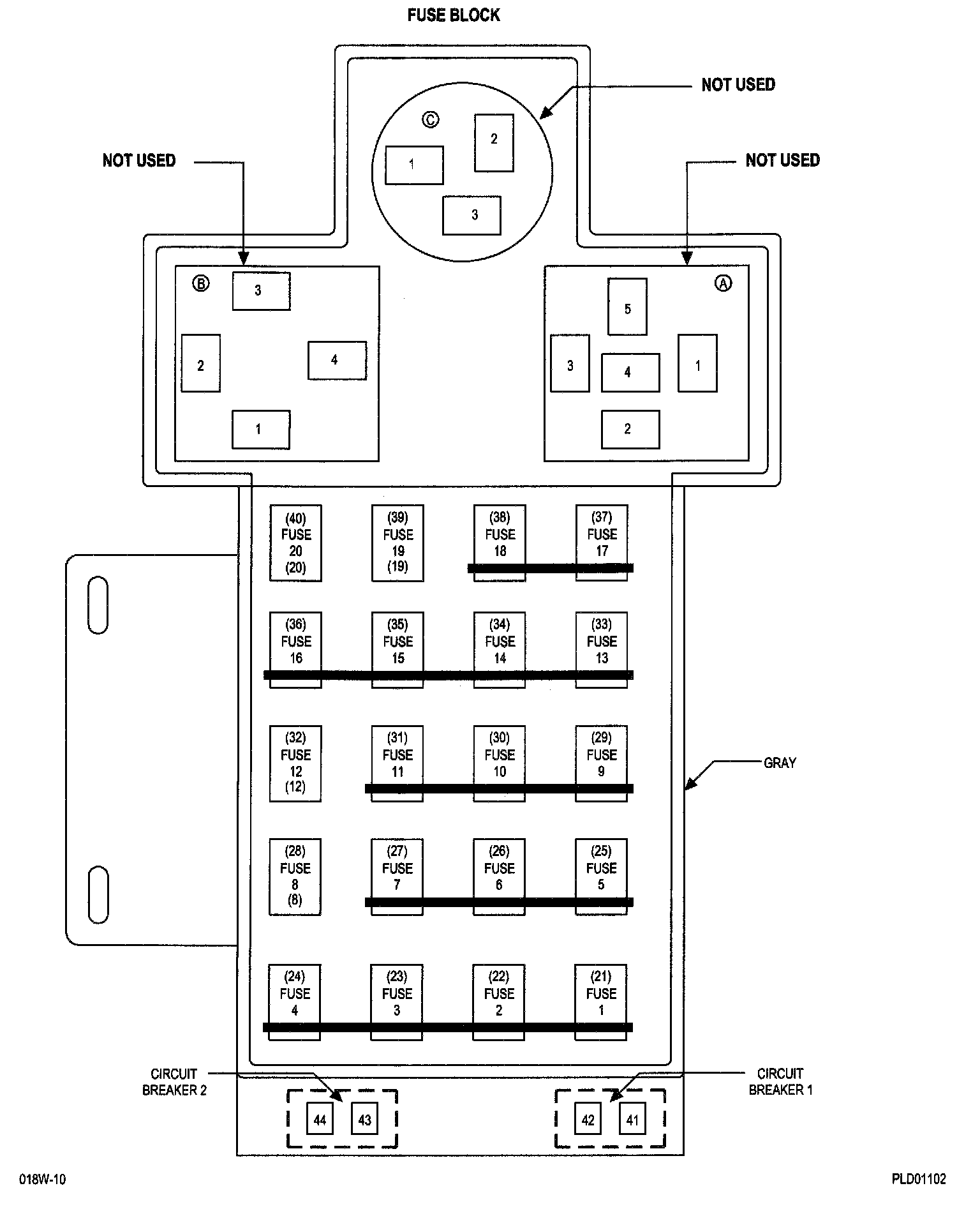

Fuse Block (RHD):

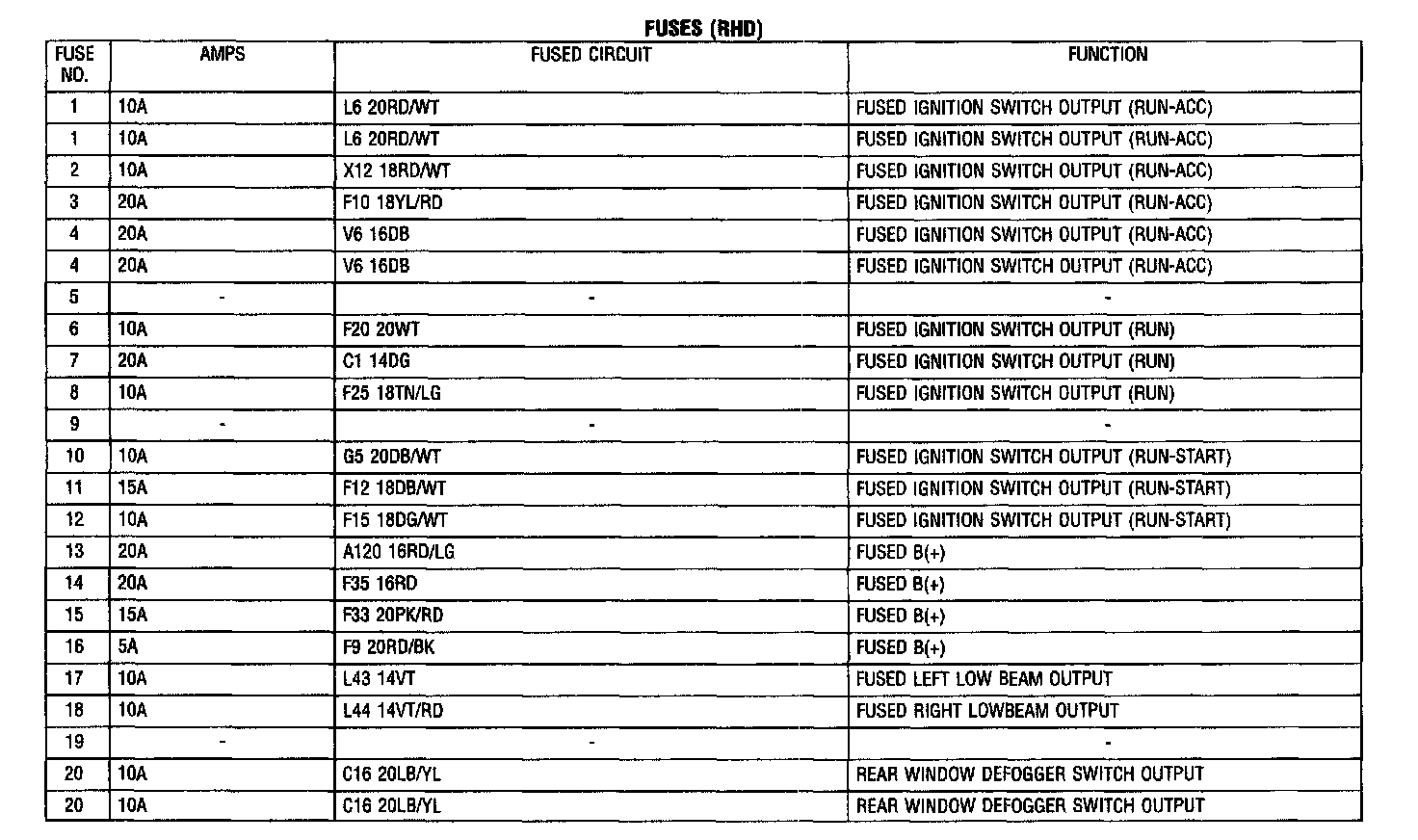

Fuses (RHD):
Power Distribution Center:

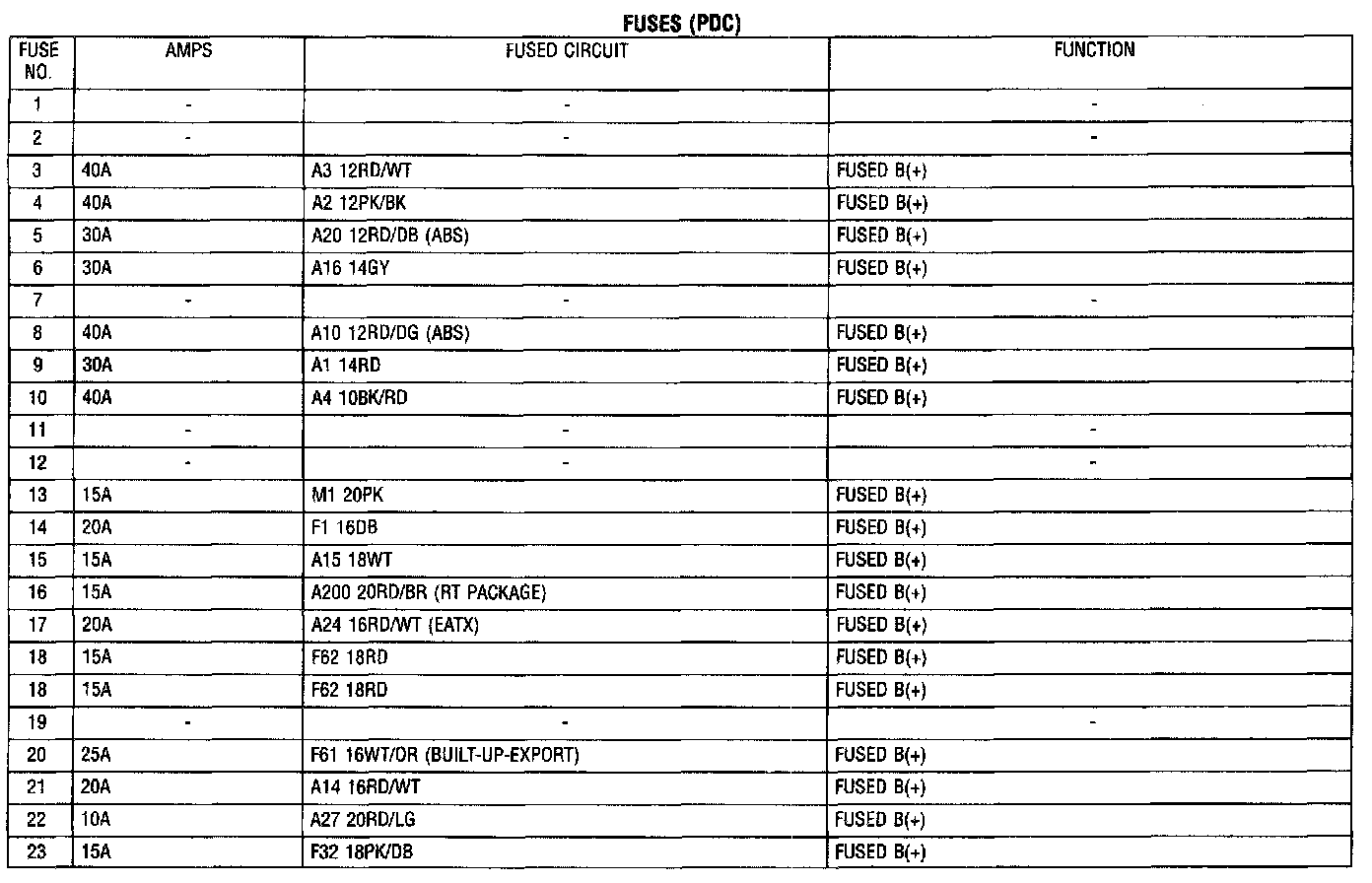

Fuses (PDC):
