Base Brake System

DIAGNOSIS AND TESTING - BASE BRAKE SYSTEM DIAGNOSIS CHARTS

NOTE: There are three diagnosis charts shown that cover the RED BRAKE WARNING INDICATOR LAMP, BRAKE NOISE and OTHER BRAKE CONDITIONS.

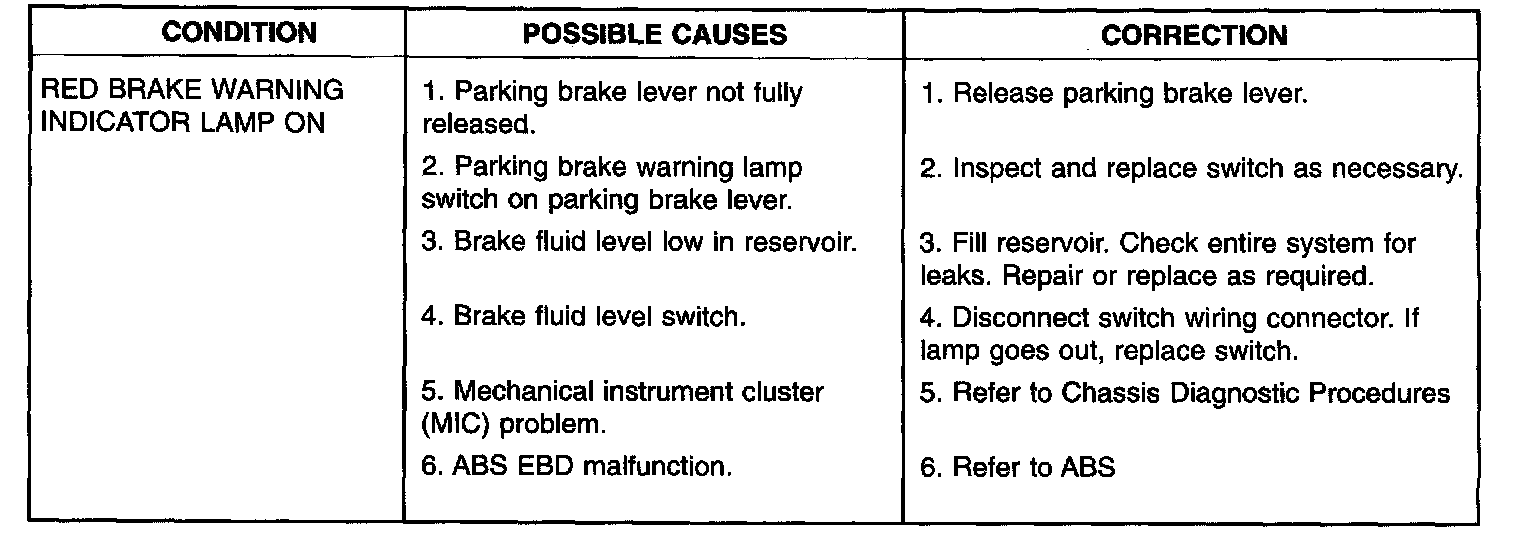

RED BRAKE WARNING INDICATOR LAMP

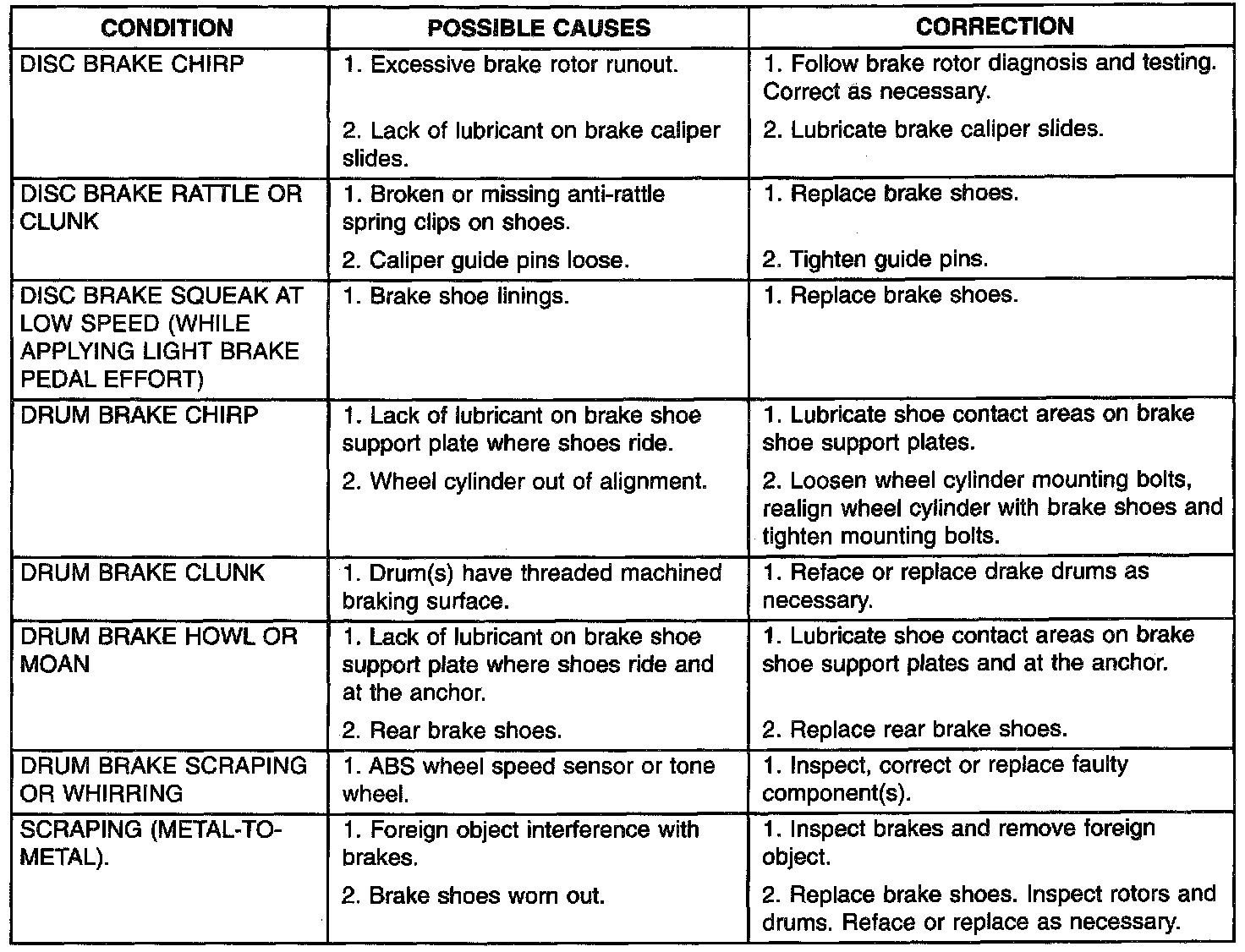

BRAKE NOISE

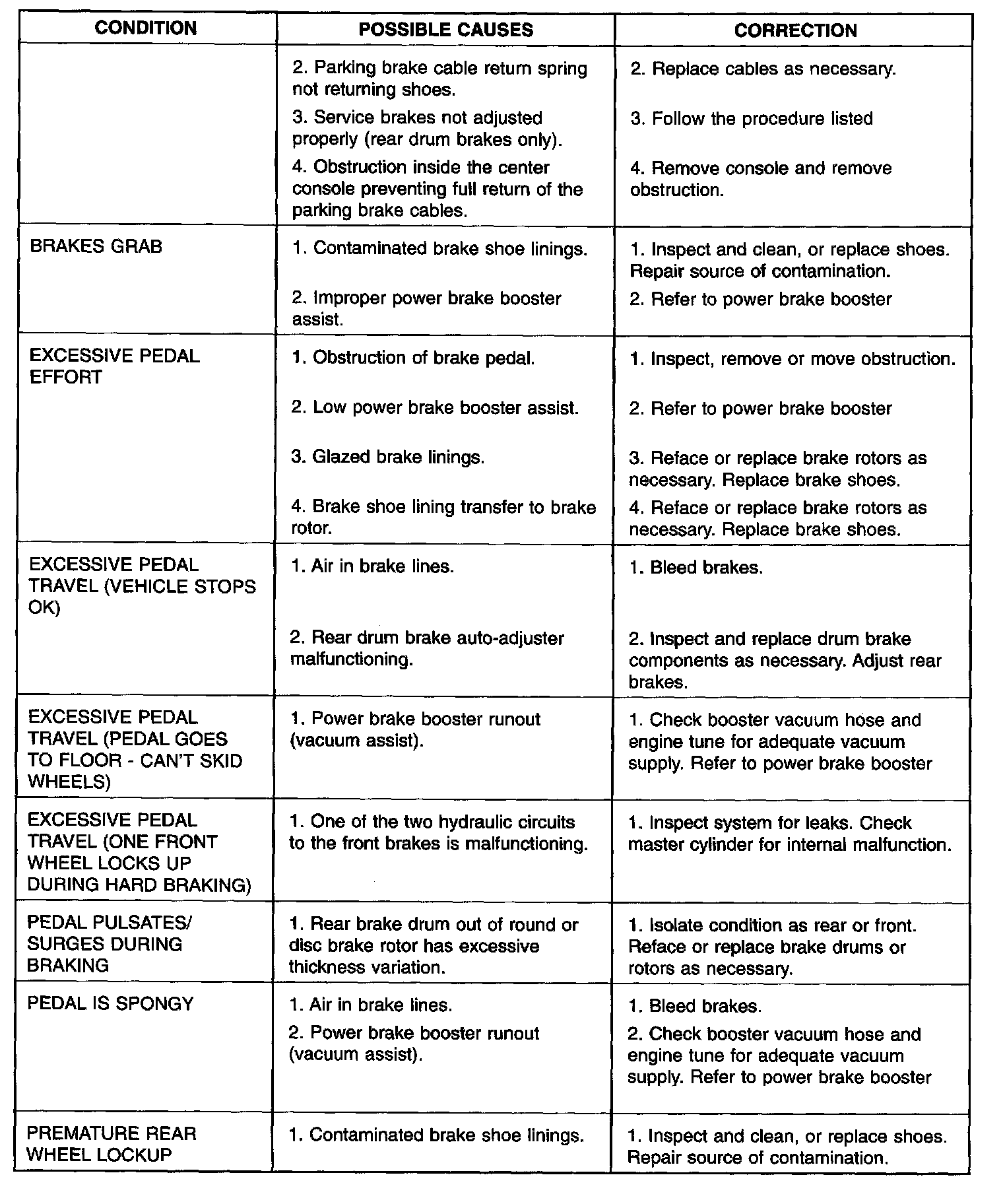

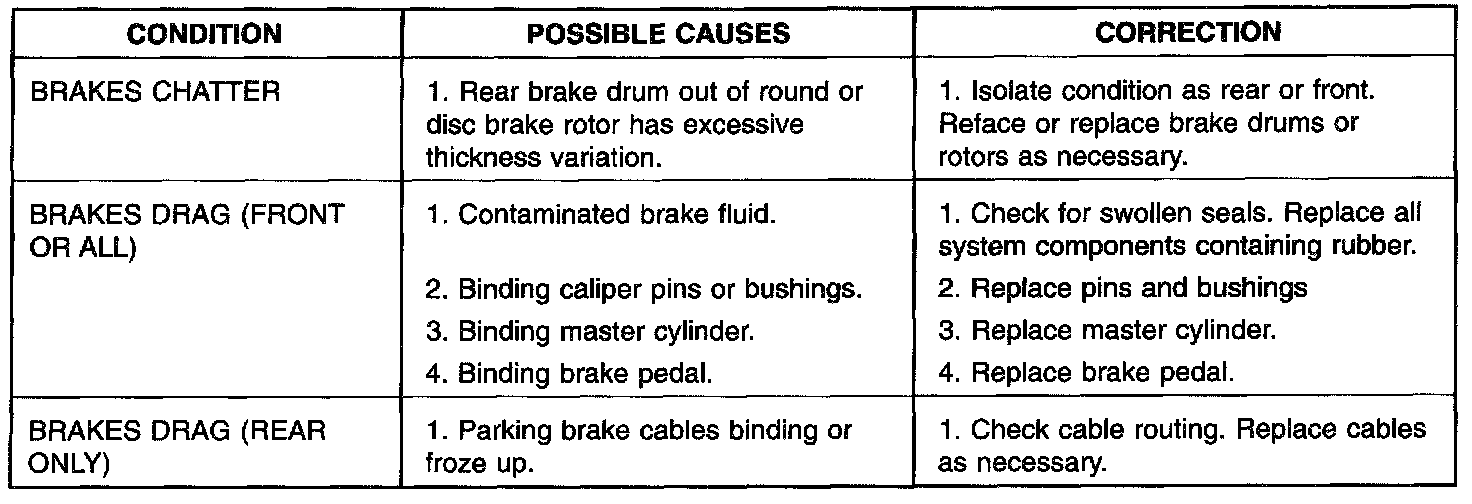

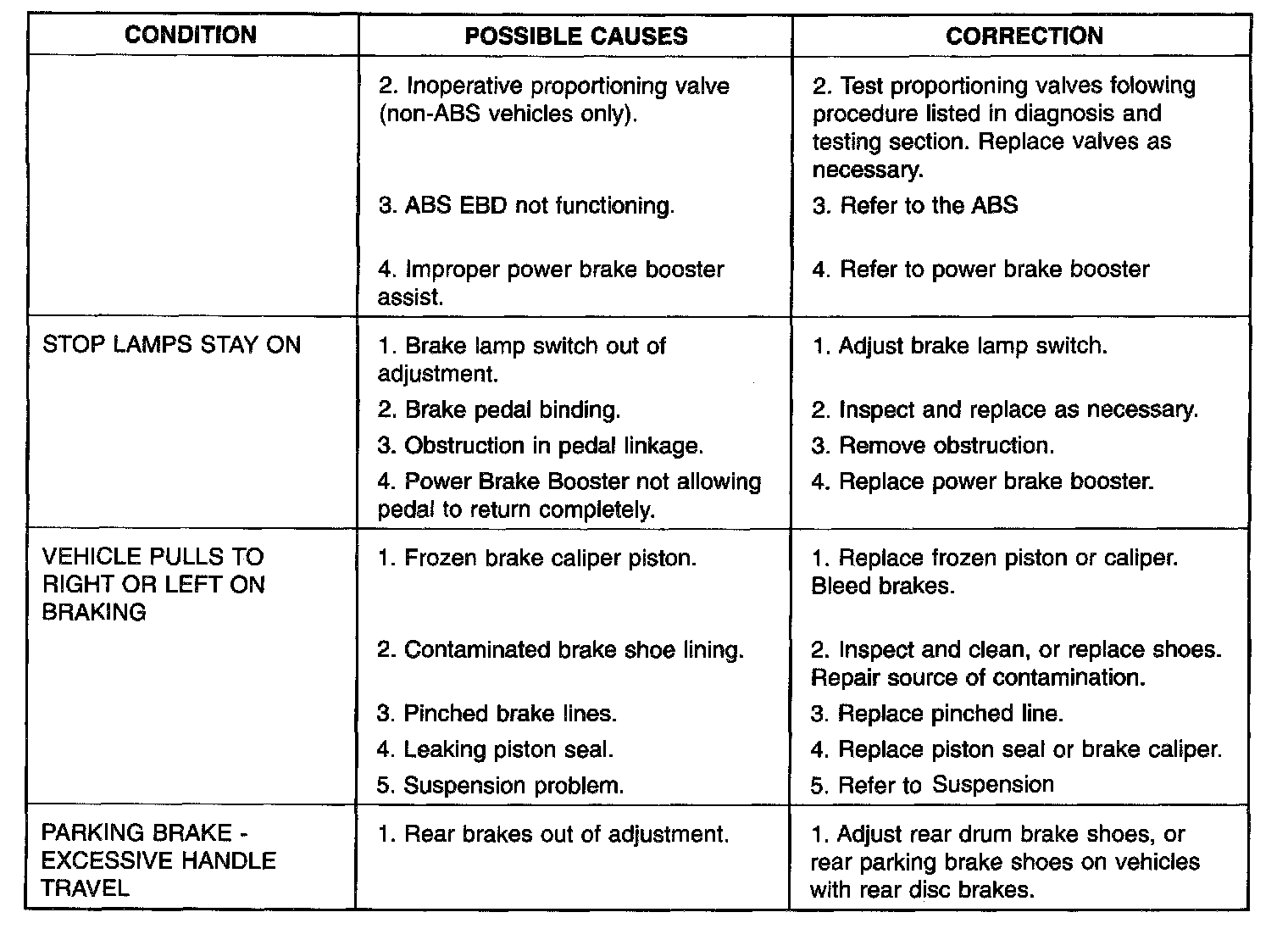

OTHER BRAKE CONDITIONS
