Component Locations

Fig 1: Locating Data Link Connector

Courtesy of CHRYSLER CORP.

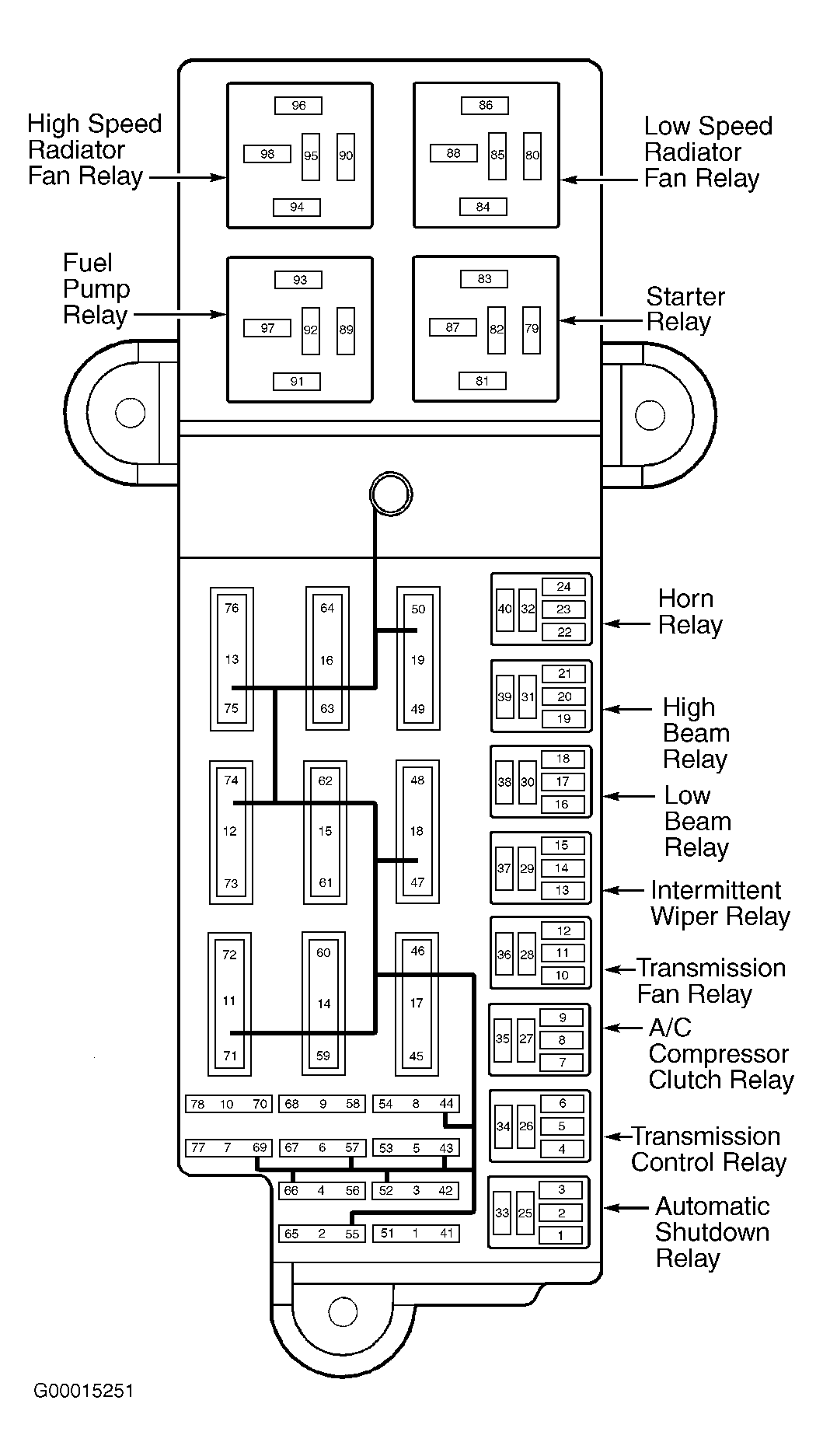

Fig 2: Identifying Power Distribution Center Components (Except Prowler)

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Power Distribution Center Components (Prowler)

Courtesy of CHRYSLER CORP.

Fig 4: Locating Powertrain Control Module & Transmission Control Module (Except Prowler)

Courtesy of CHRYSLER CORP.

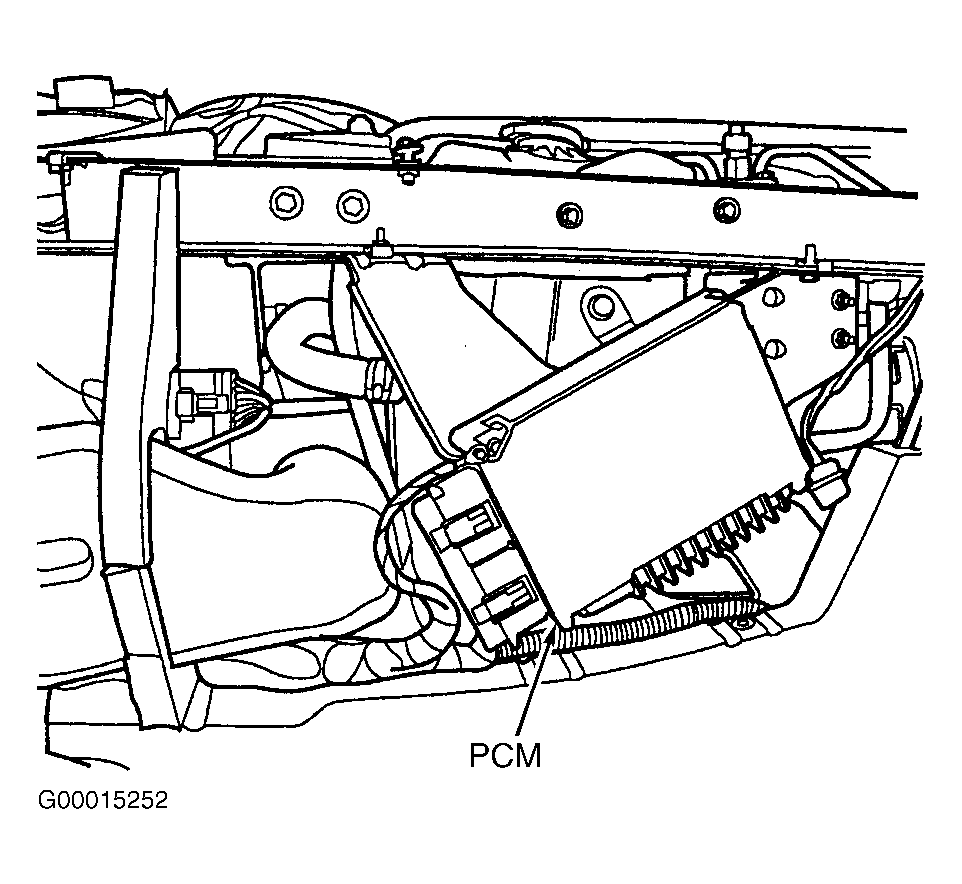

Fig 5: Locating Powertrain Control Module (Prowler)

Courtesy of CHRYSLER CORP.

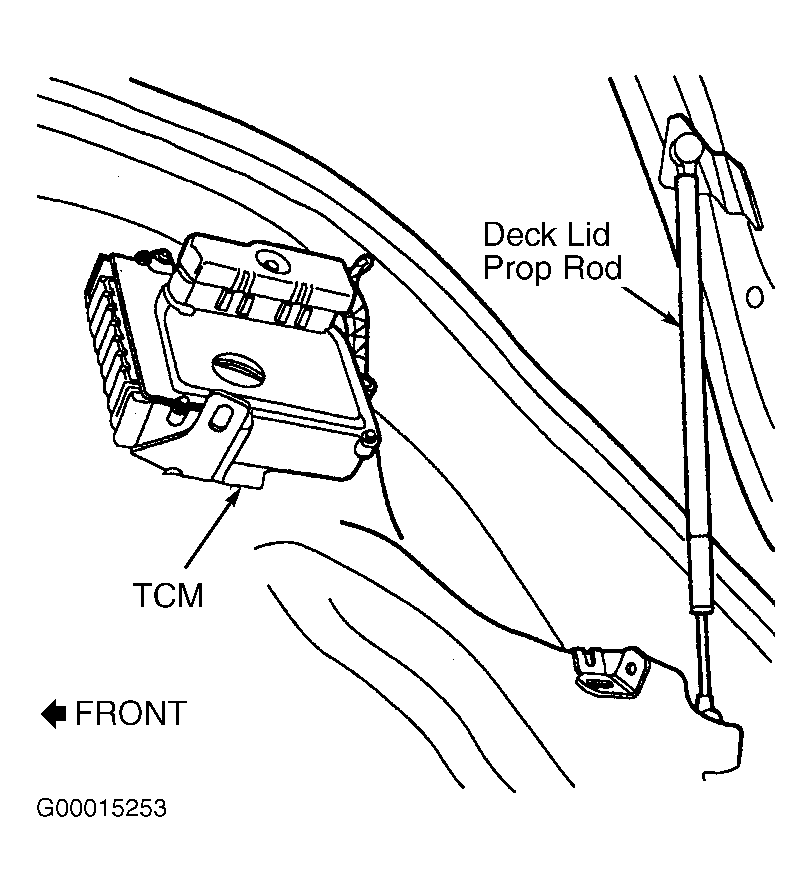

Fig 6: Locating Transmission Control Module (Prowler)

Courtesy of CHRYSLER CORP.
