Checking A/C Pressure Sensor Signal

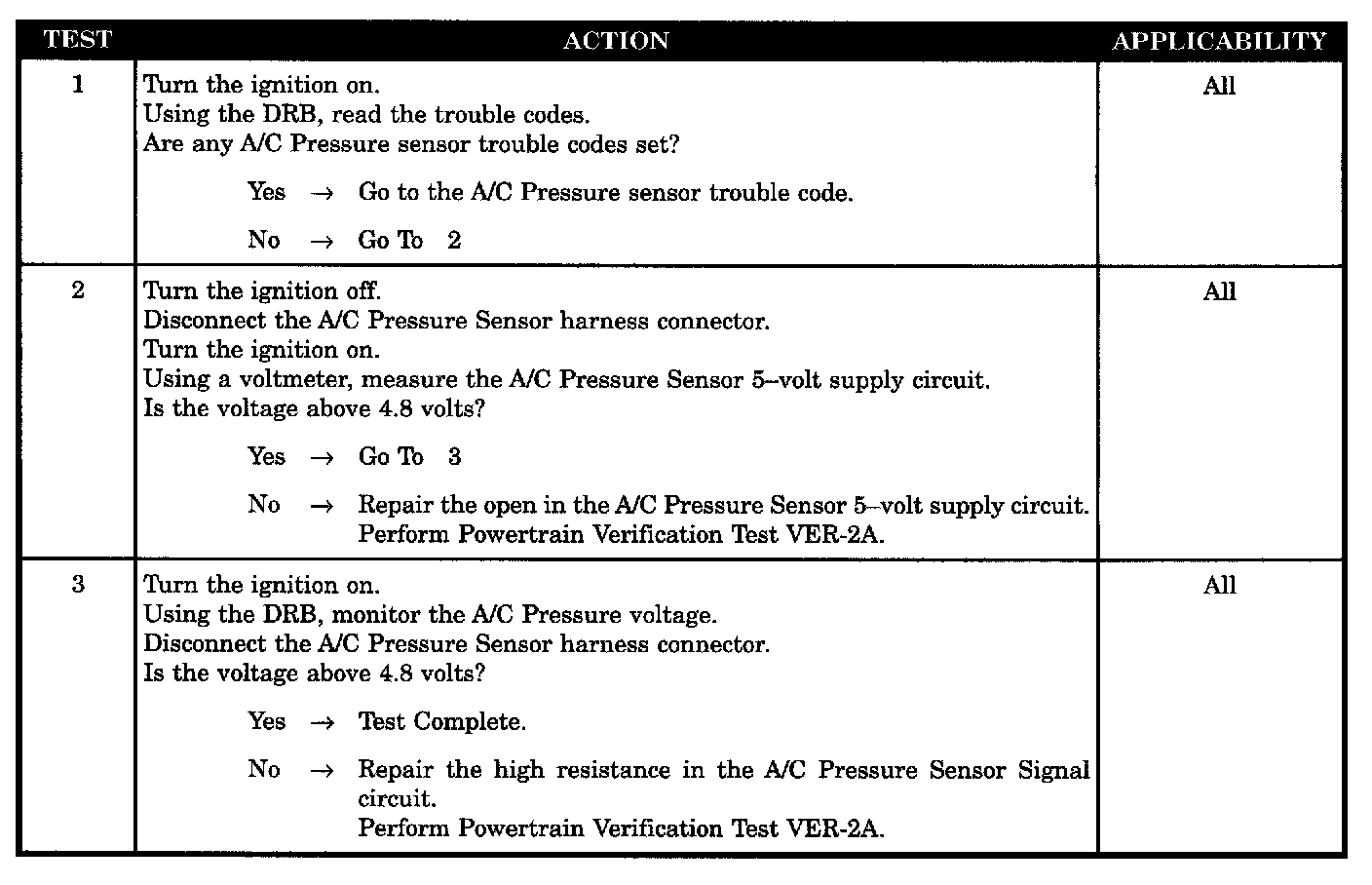

Tests 1 - 3:
SYMPTOM
CHECKING THE A/C PRESSURE SENSOR SIGNAL
POSSIBLE CAUSES
-
A/C pressure sensor
5-volt
supply circuit open
-
High resistance in the A/C pressure sensor signal circuit
