Chime Inoperative With Drivers Seat Belt Unfastened

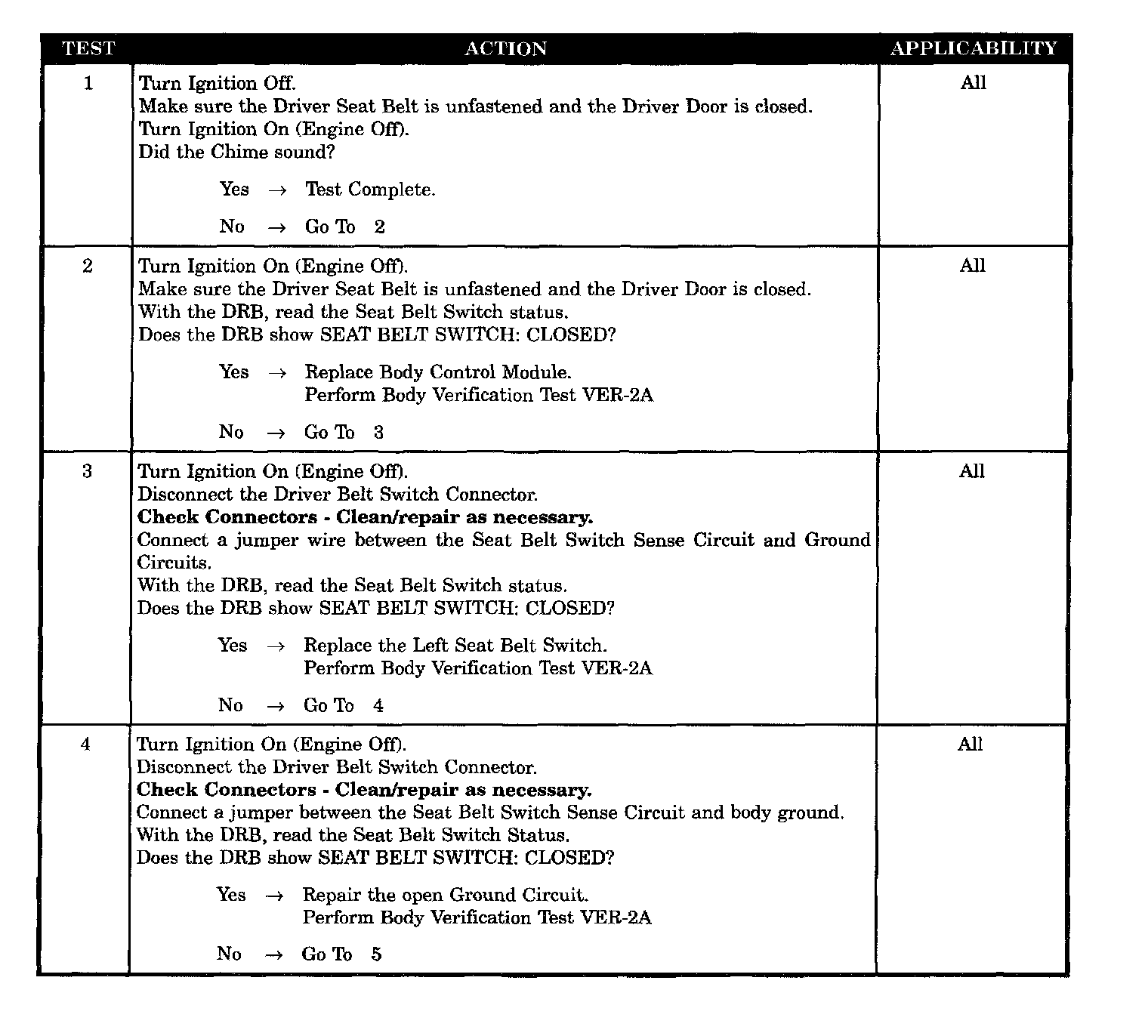

Tests 1 - 4:

Test 5:

SYMPTOM
CHIME INOPERATIVE WITH DRIVER SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Ground circuit to left seat belt switch connector open
- Left seat belt switch open
- BCM Not responding to belt switch
- Body control module seat belt switch sense open
- Seat belt switch sense circuit open
