Air Temperature Sensor ( Ambient / Intake ): Service and Repair

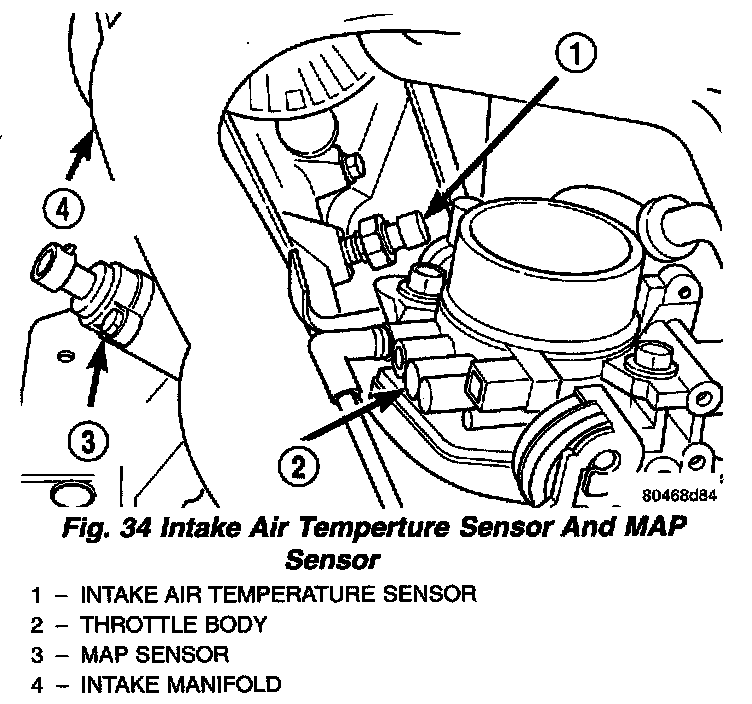

Fig. 34 Intake Air Temperature Sensor And MAP Sensor:

The intake air temperature sensor threads into the intake manifold plenum.

REMOVAL
1. Remove the negative battery cable.
2. Remove air inlet resonator.
3. Reaching through intake manifold from throttle body end, disconnect sensor connector.
4. Remove sensor.

INSTALLATION
1. Install sensor. Tighten sensor to 6.2 Nm (55 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install air inlet resonator.
4. Install the negative battery cable.
