Auto-cruise Control Check
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

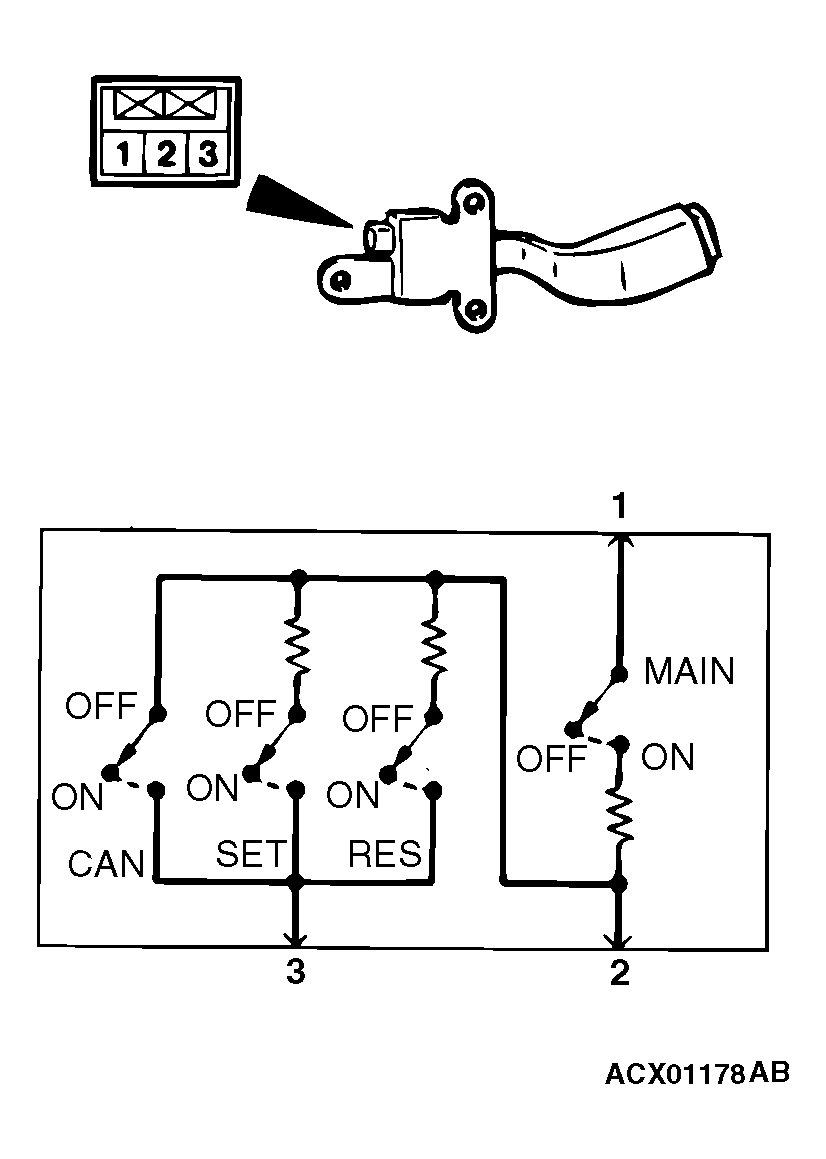

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
RESISTANCE CHART
| SWITCH POSITION | RESISTANCE BETWEEN TERMINALS | |
|---|---|---|
| MAIN switch: "OFF" | Terminals 1 and 2 | Less than 2 ohms |
| MAIN switch: "ON" | Terminals 1 and 2 | Approximately 3.9 kΩ |
| CANCEL switch: ON | Terminals 2 and 3 | Approximately 0 Ω |
| RESUME switch: ON | Terminals 2 and 3 | Approximately 910 Ω |
| SET switch: ON | Terminals 2 and 3 | Approximately 220 Ω |
