Checking the PCM Power and Ground Circuits

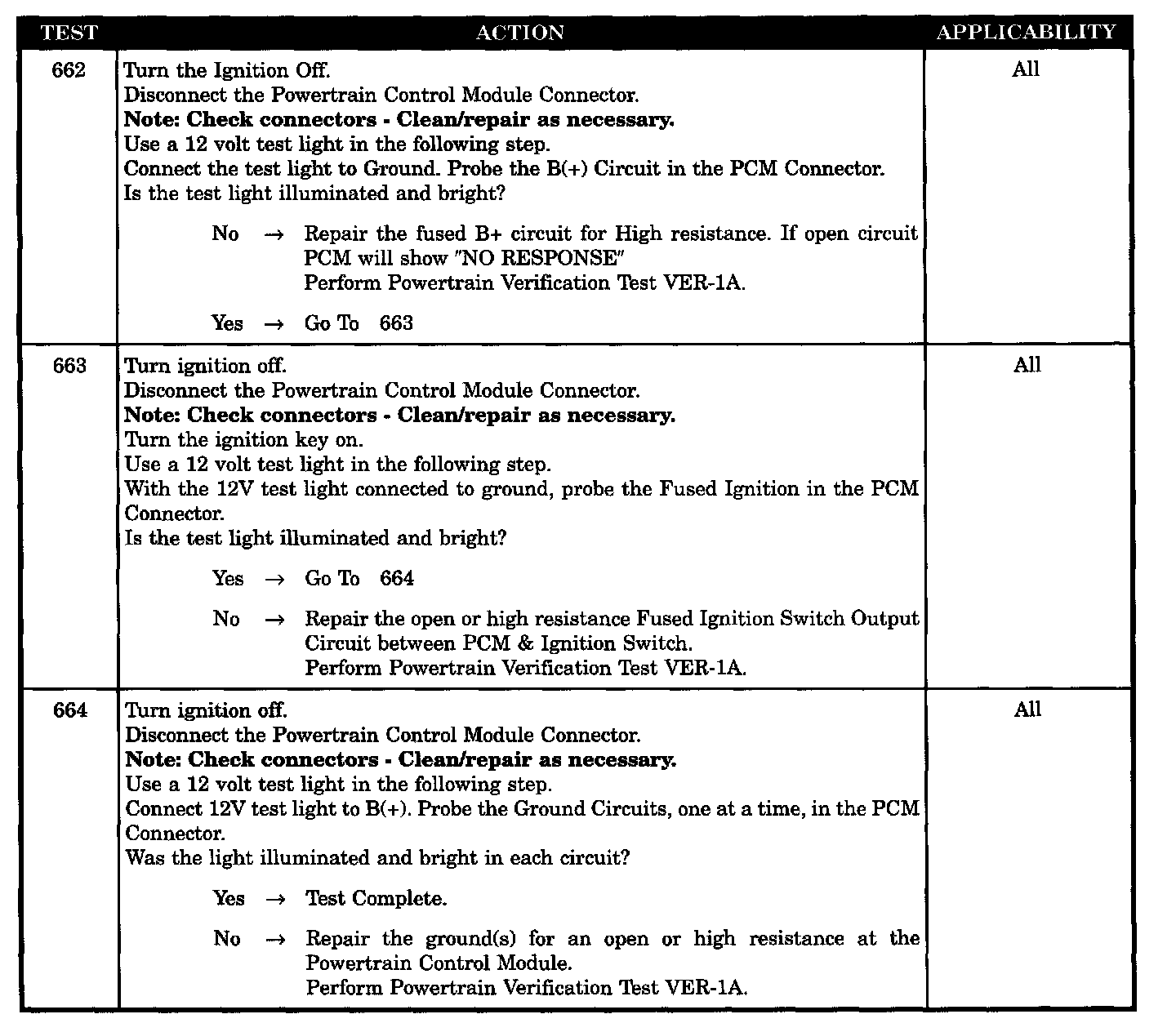

Tests 662 - 664:





SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- Fused ignition switch output circuit open
- PCM ground circuit(s) open
- Fused B(+) circuit less than 10.0 volts
