Power Mirror Switch: Testing and Inspection

Mirror Switch Continuity:

1. Remove power mirror switch from mounting position. Refer to Mirror Switch Removal and Installation.

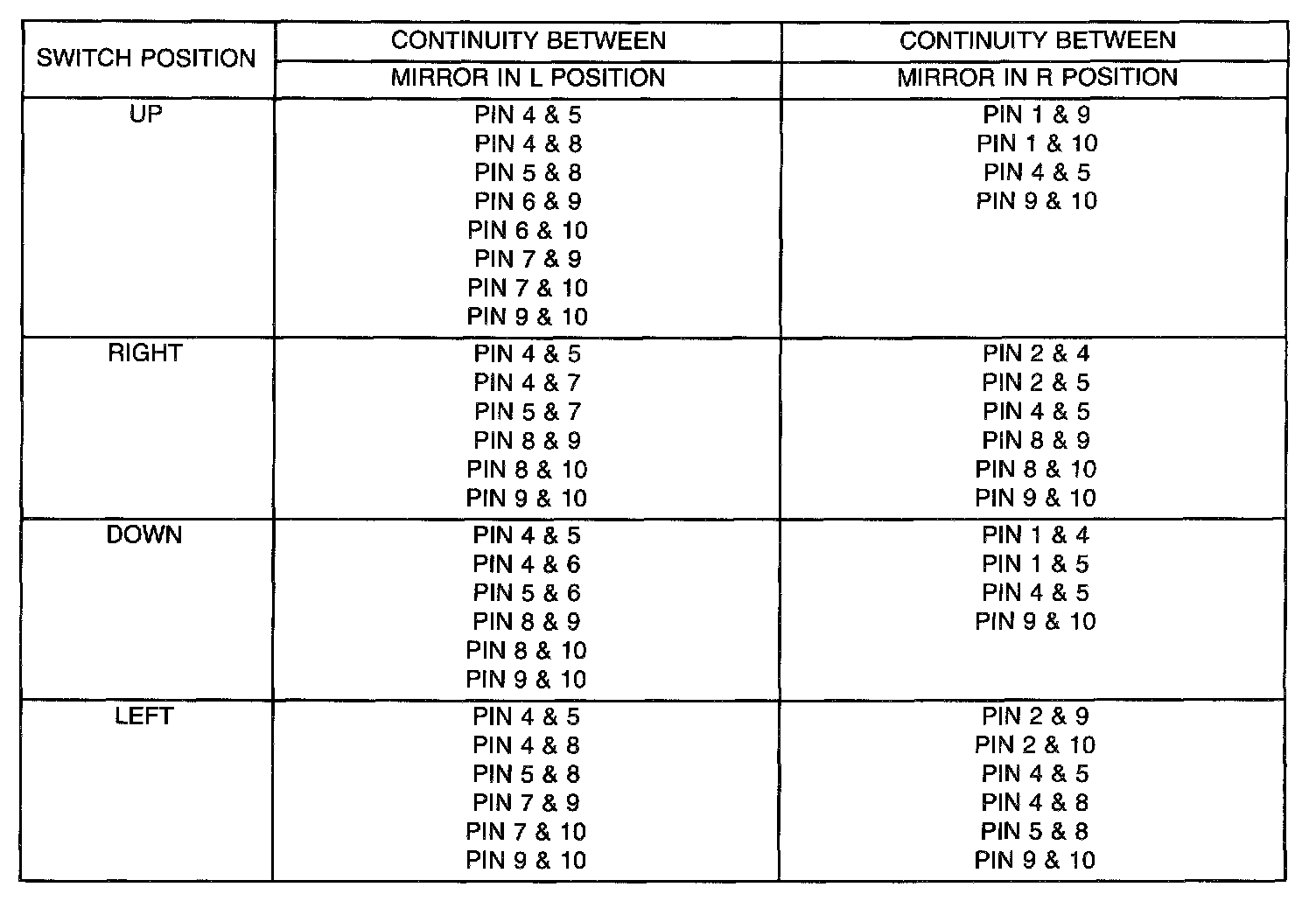

2. Using an ohmmeter, test for continuity between the terminals of the switch as shown in the Mirror Switch Continuity table.
3. If test results are not obtained as shown in the Mirror Switch Continuity table, replace the switch.
