Overdrive Clutch Reassembly

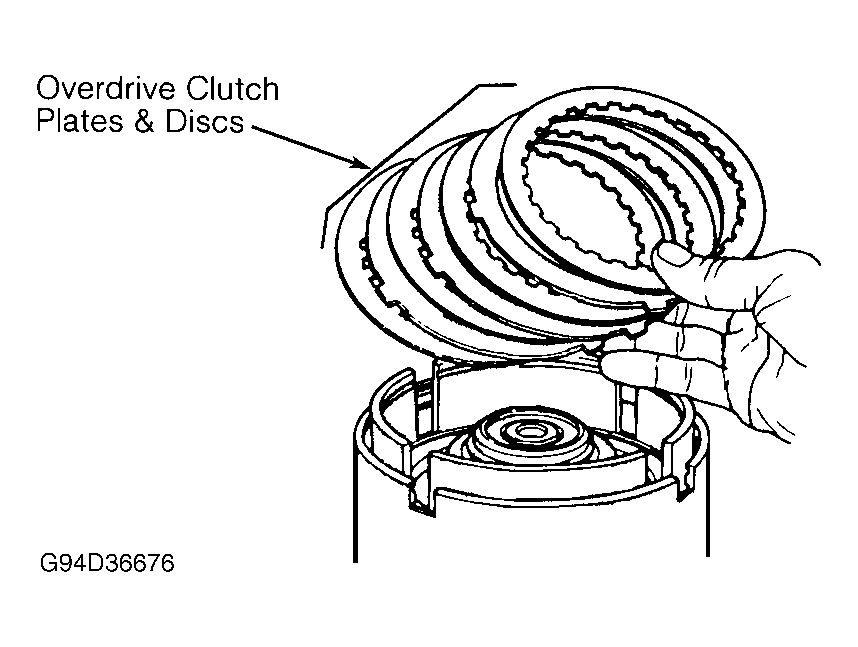

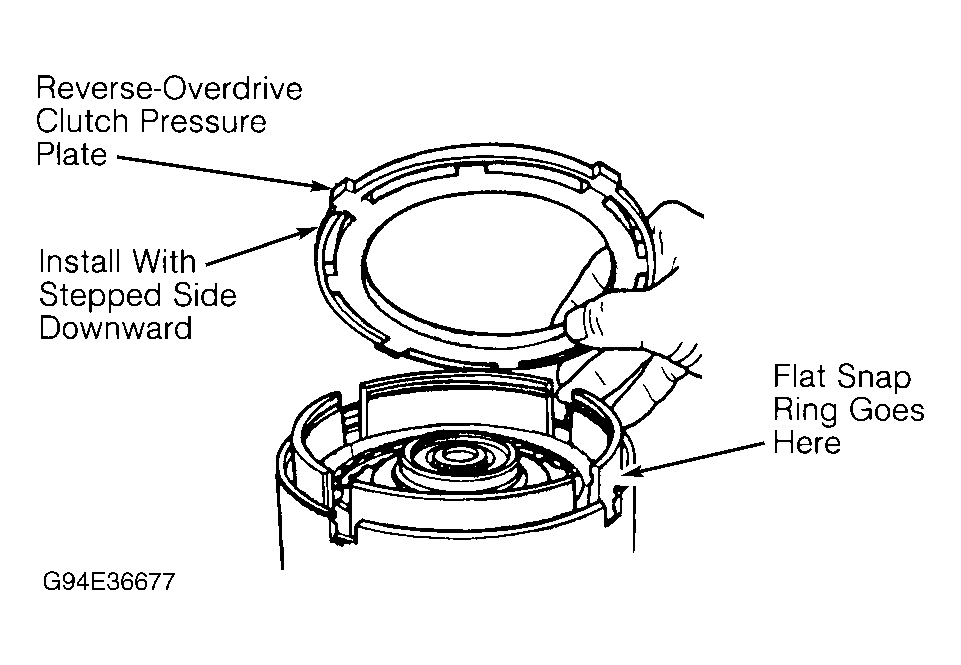

  1. Install overdrive clutch plates and overdrive clutch discs. See Figure . Install waved snap ring. Install reverse-overdrive clutch pressure plate with stepped side downward. See Figure .
    2. CAUTION: When compressing overdrive clutch assembly, compress assembly just enough to install flat snap ring.
  2. Using press and spring compressor, press reverse-overdrive clutch pressure plate downward to compress overdrive clutch assembly until flat snap ring can be installed. Install flat snap ring. Release press. Remove spring compressor. Check overdrive clutch clearance.
