Section 88 (Antenna System): Multiplexer: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the radio (Refer to RADIO
).

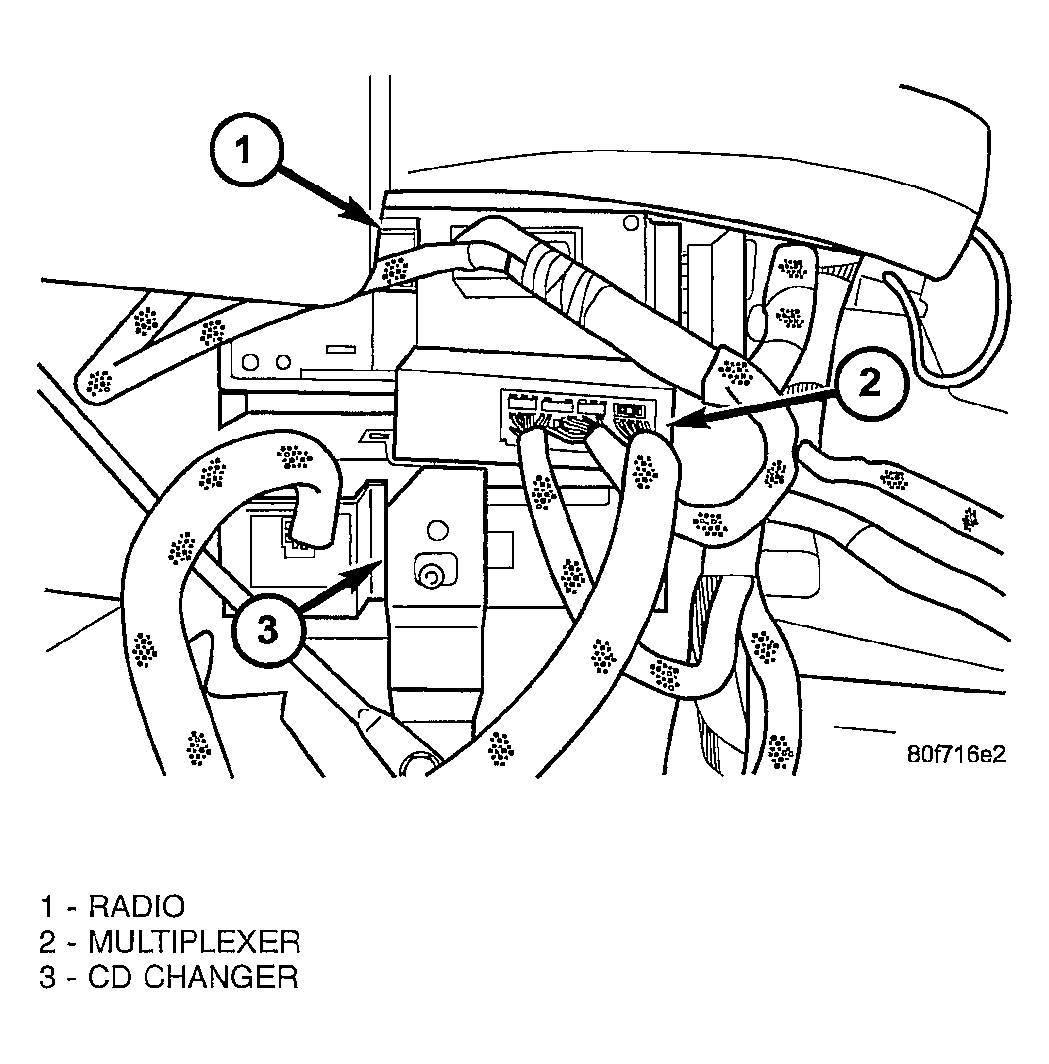

- Remove mounting fasteners (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect wire harness connectors and remove multiplexer.
