Transmission Range Sensor: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Install the TRS to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.

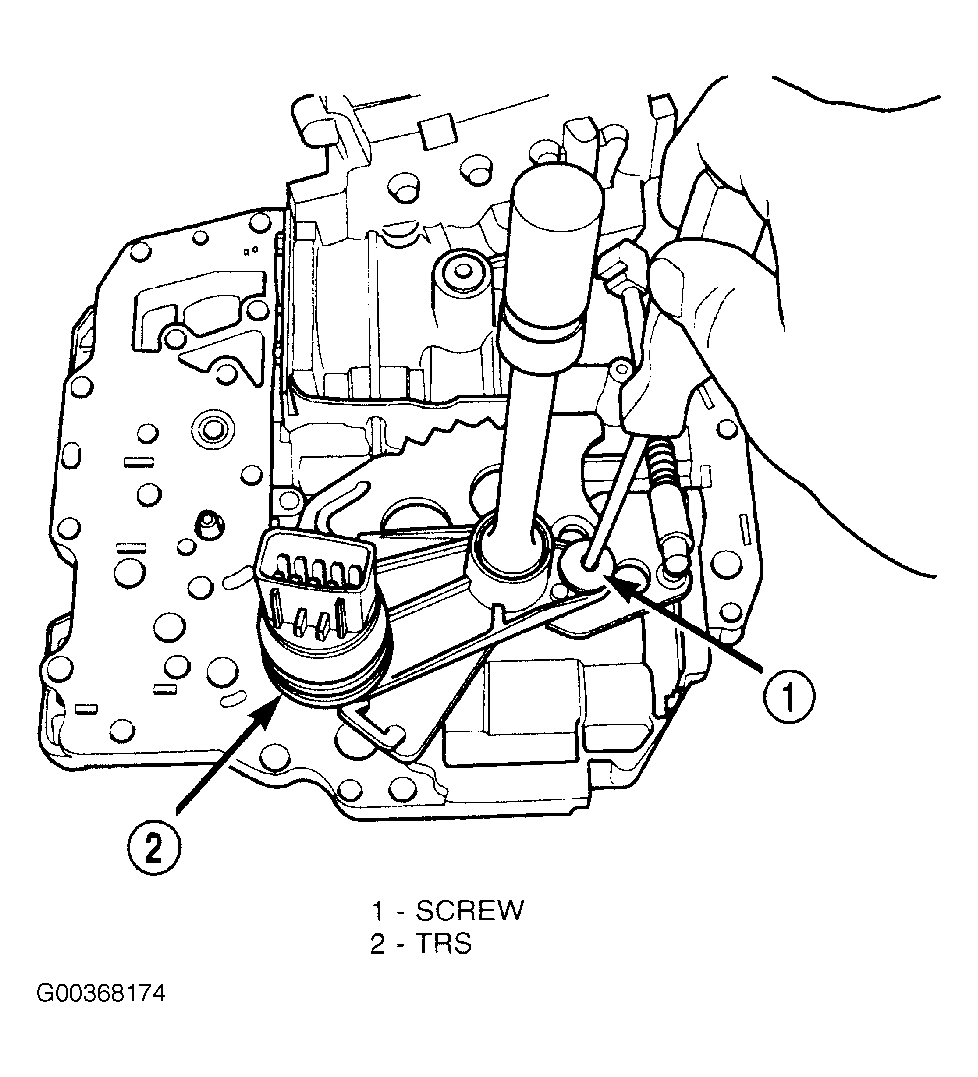

- Install the TRS/manual shaft retaining screw and torque to 45 INCH Lbs. (5 N.m). See Figure
.
- Install the manual shaft seal. See Figure
.
- Install valve body to transaxle.
