Vibration Damper: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at right strut tower.
Remove upper radiator crossmember. (Refer to GRILLE OPENING REINFORCEMENT )
Remove radiator fan. (Refer to RADIATOR FAN )
Remove the accessory drive belts. (Refer to ACCESSORY DRIVE )
Use Special Tool 8191 to hold crankshaft damper while removing center bolt (Fig 1 ).

Fig 1: Crankshaft Damper Center Bolt - Removal And Installation
Courtesy of DAIMLERCHRYSLER CORP.

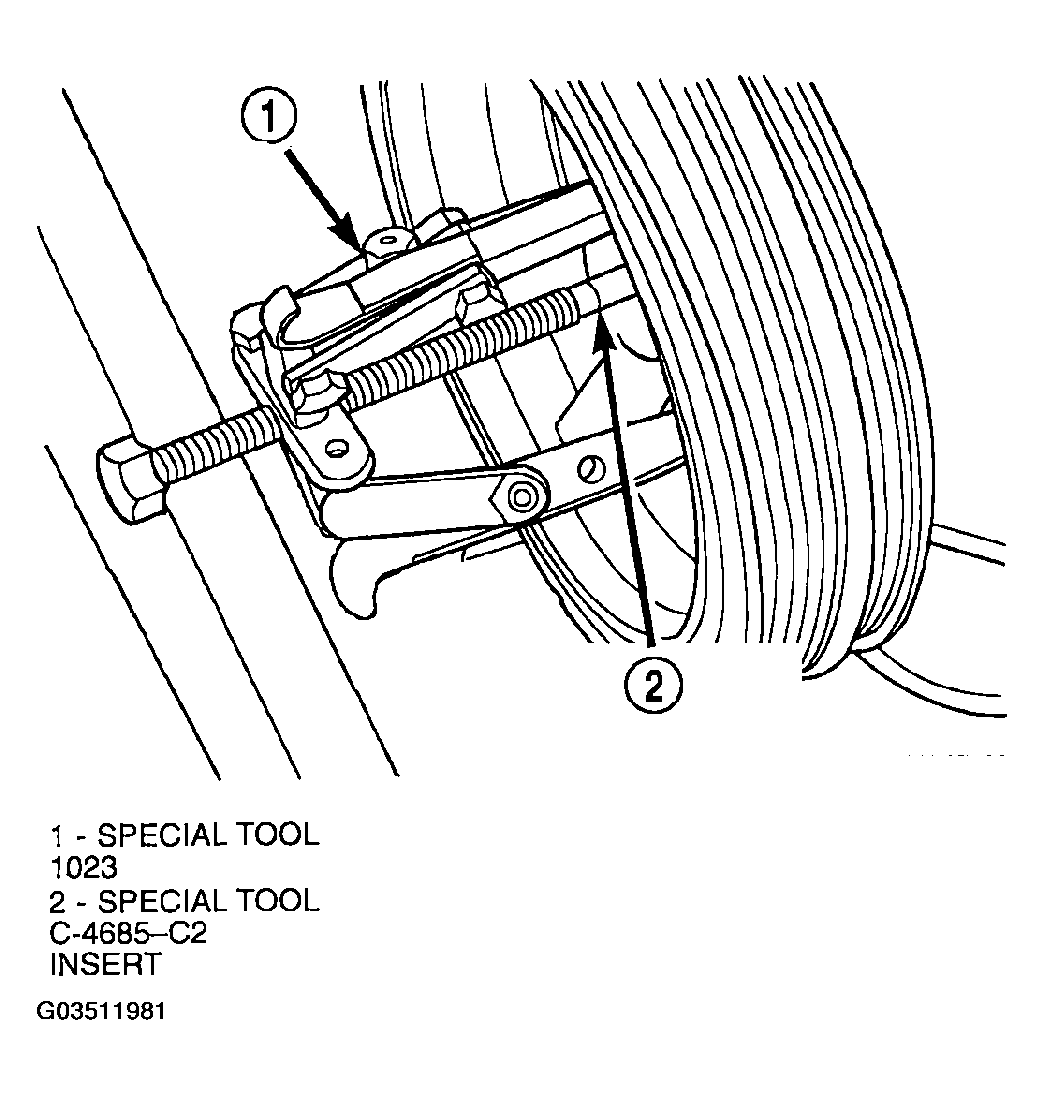

Use Special Tool 1023 puller, and insert C-4685-C2, remove crankshaft damper (Fig 2 ).

Fig 2: Crankshaft Damper - Removal
Courtesy of DAIMLERCHRYSLER CORP.
