Spark Plug Tube: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove cylinder head cover(s). (Refer toCYLINDER HEAD COVER(S) )
Using suitable locking pliers, remove the tube from the cylinder head (Fig 1 ) and discard tube.

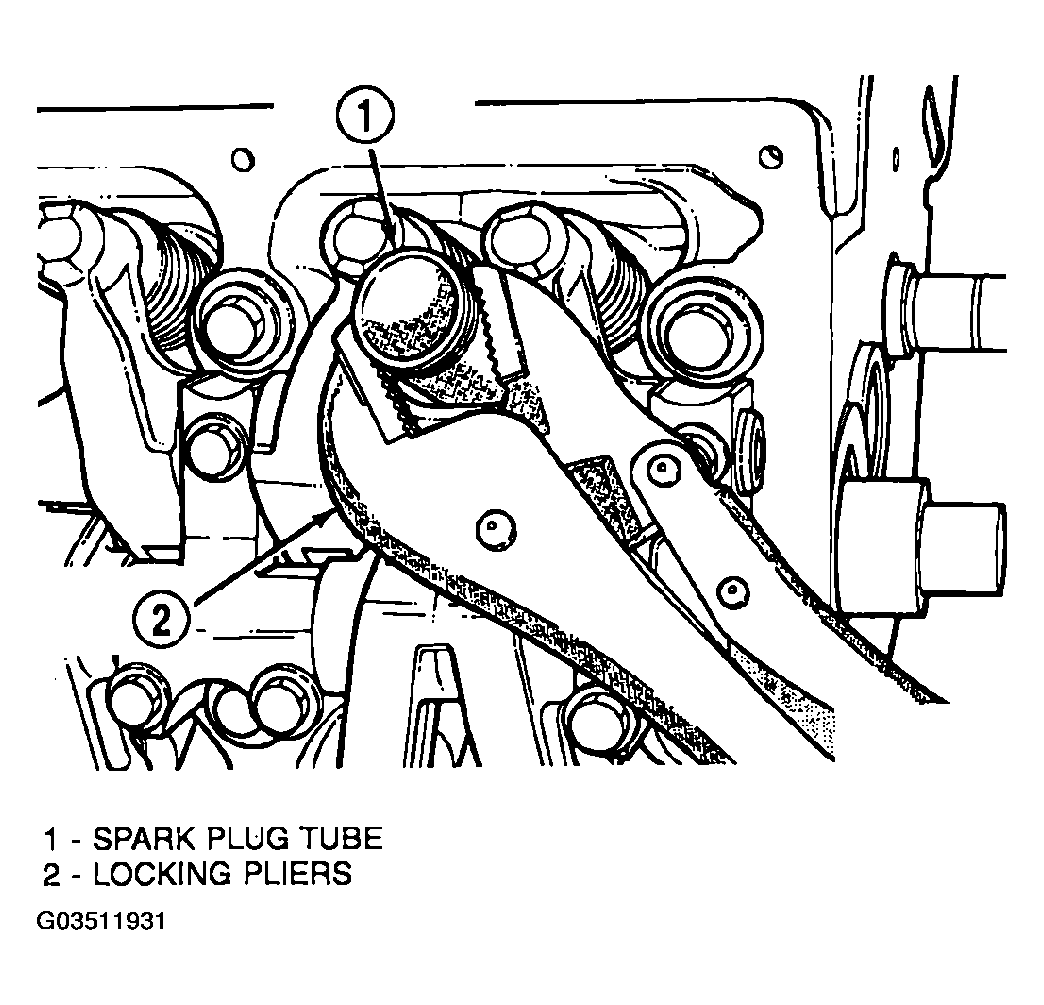

Fig 1: Servicing Spark Plug Tubes
Courtesy of DAIMLERCHRYSLER CORP.
Clean area around spark plug with MOPAR(R) Parts Cleaner or equivalent.
