Automatic Transmission/Transaxle

42LE TRANSAXLE HYDRAULIC SCHEMATICS

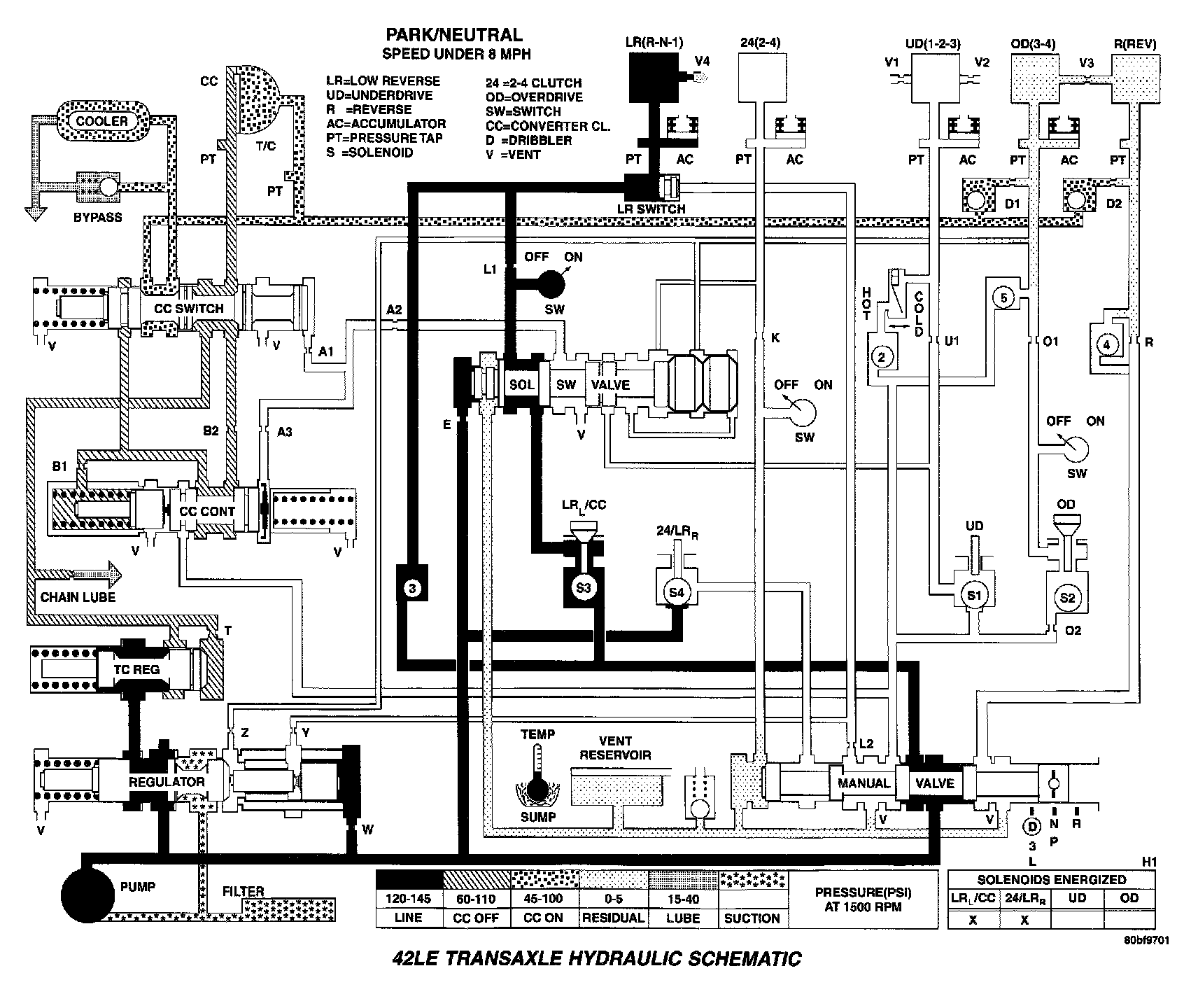

Park/Neutral (Speed Under 8 MPH):

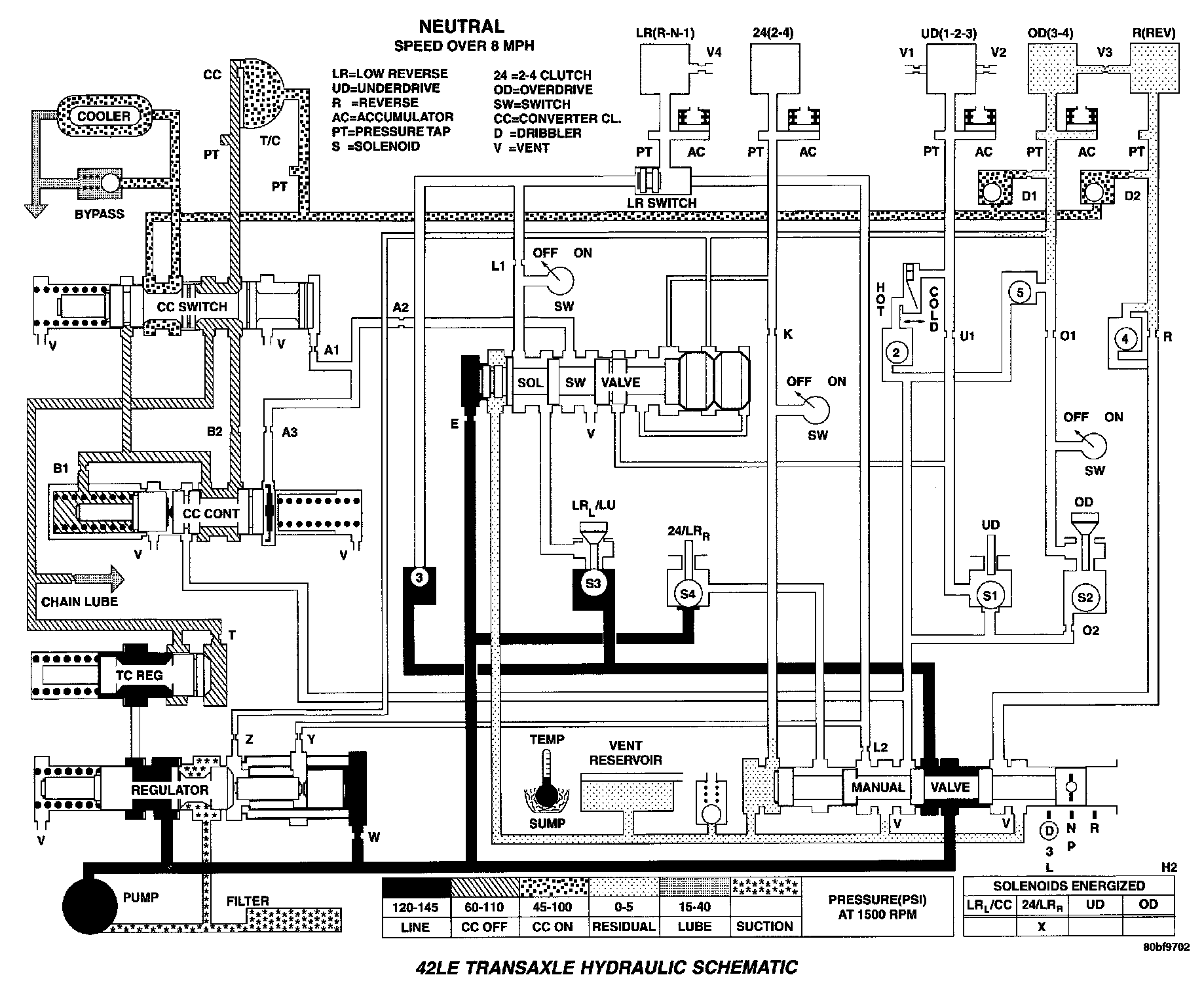

Neutral (Speed Over 8 MPH):

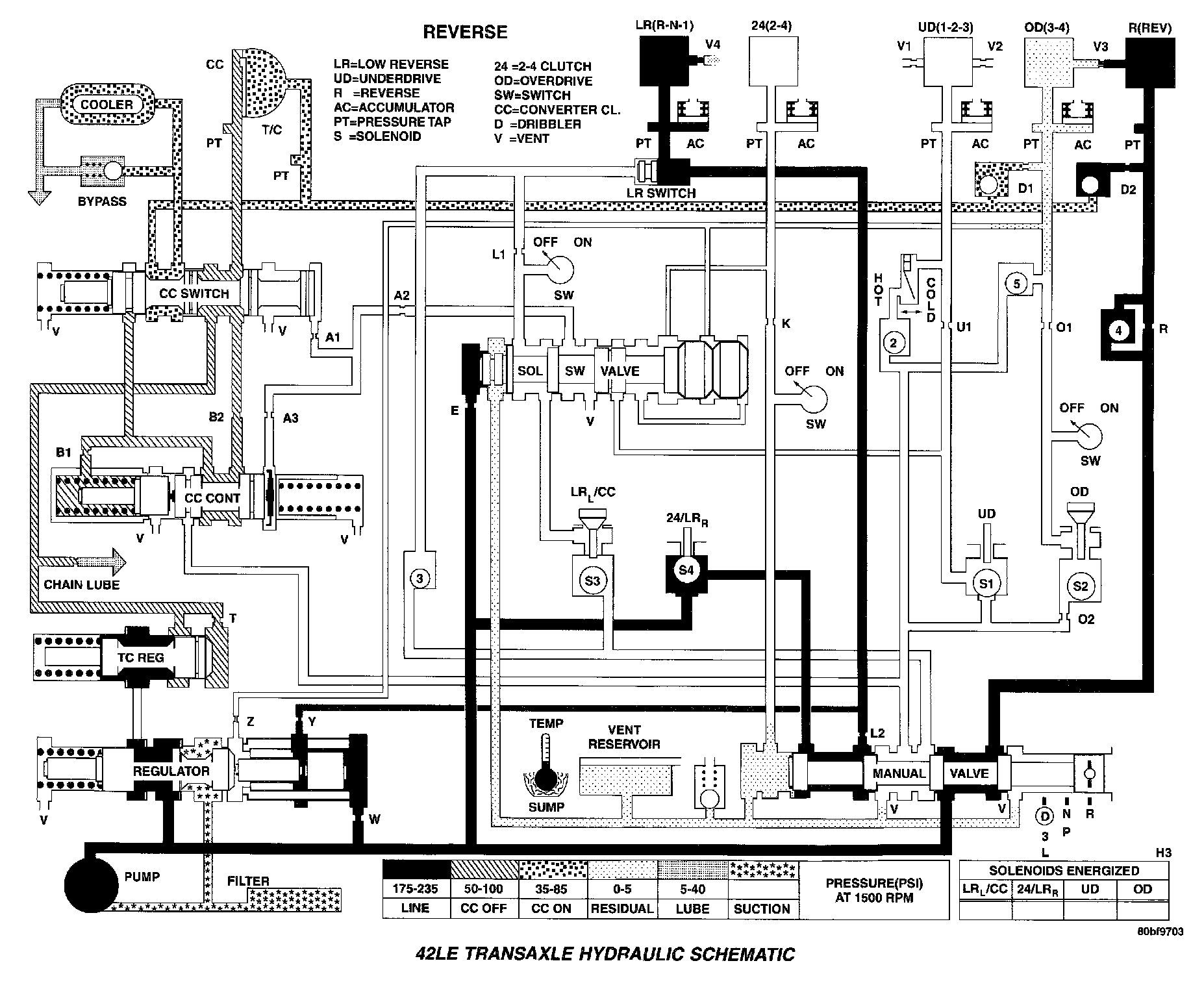

Reverse:

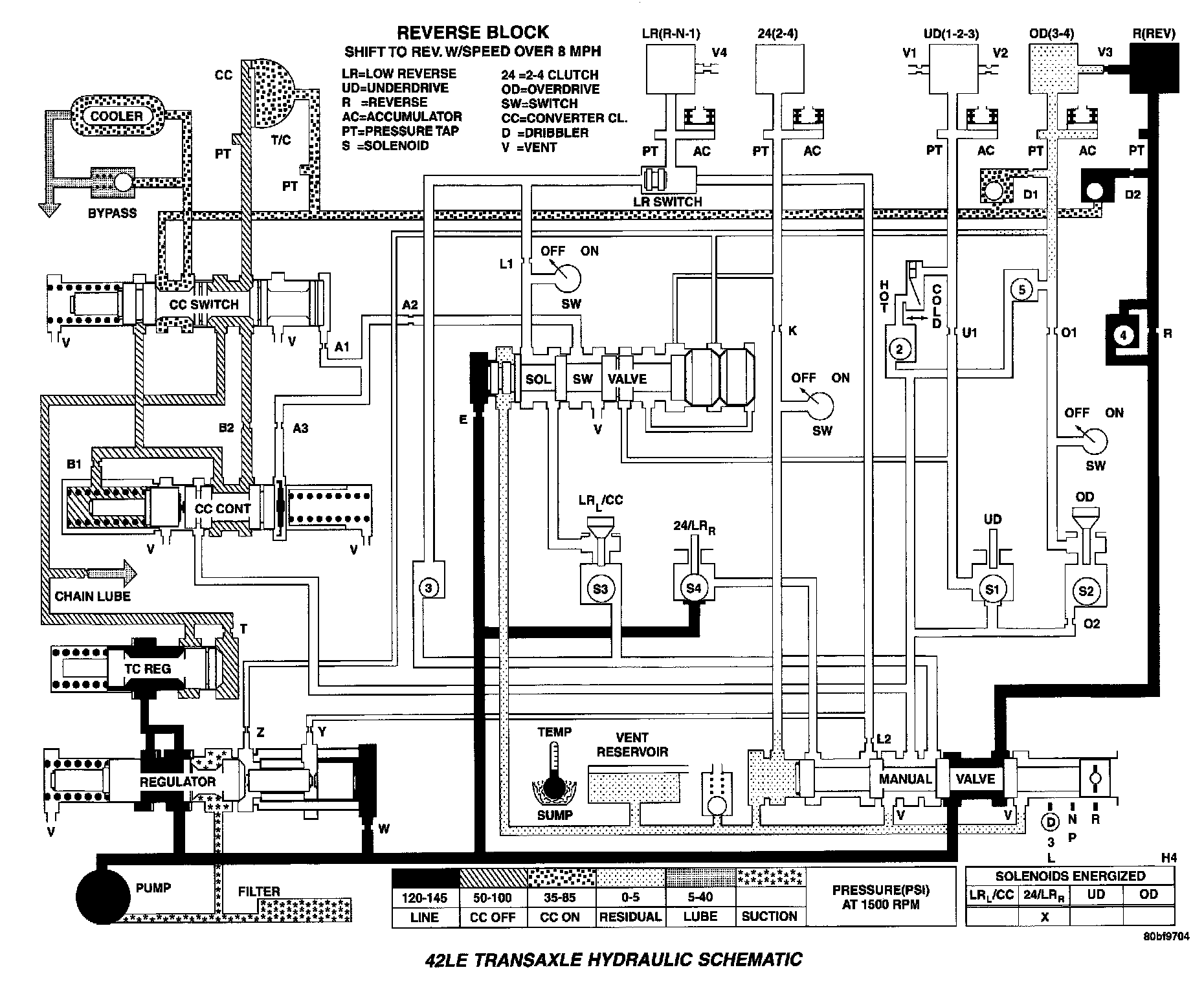

Reverse Block (Shift To Reverse With Speed Over 8 MPH):

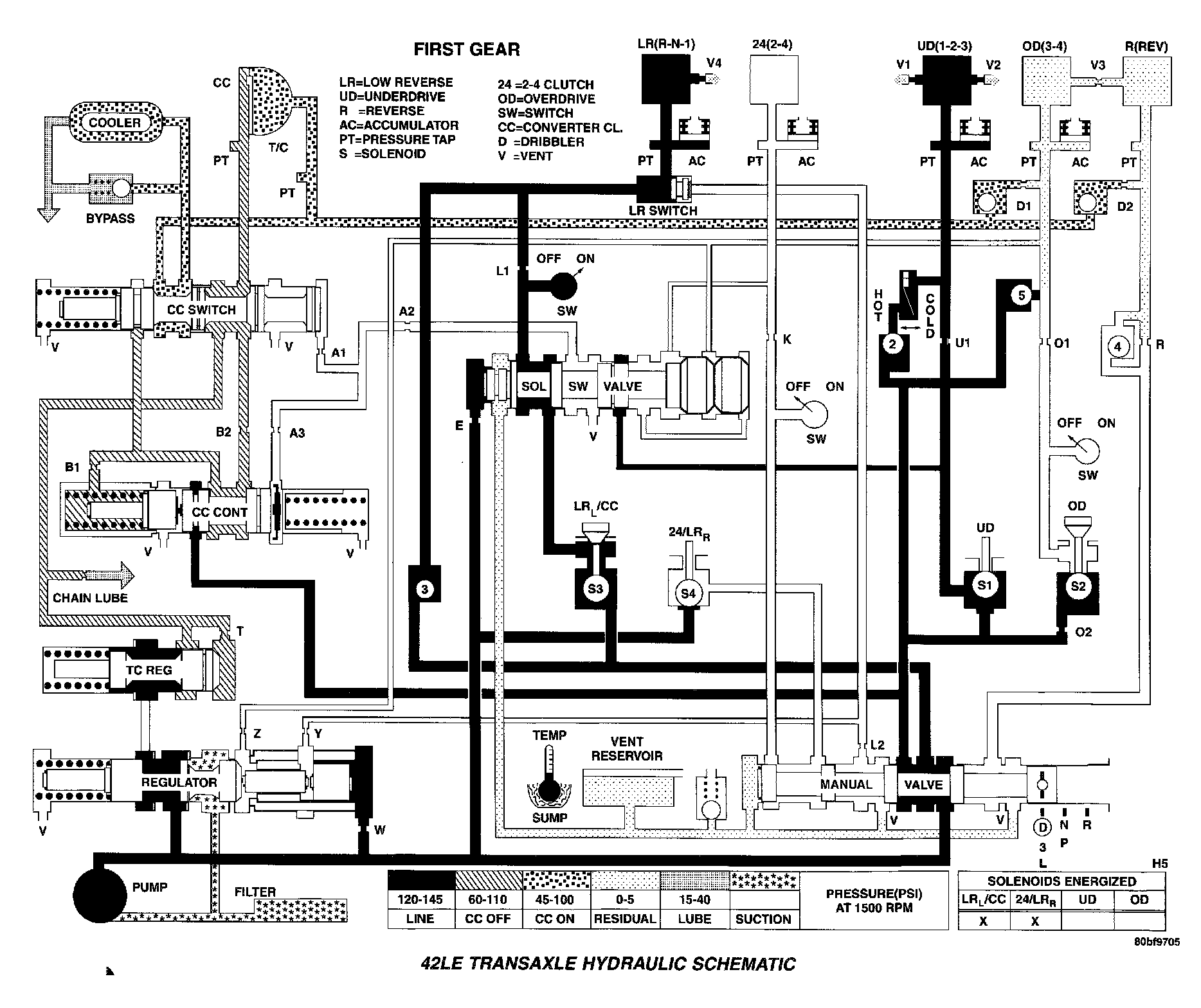

First Gear:

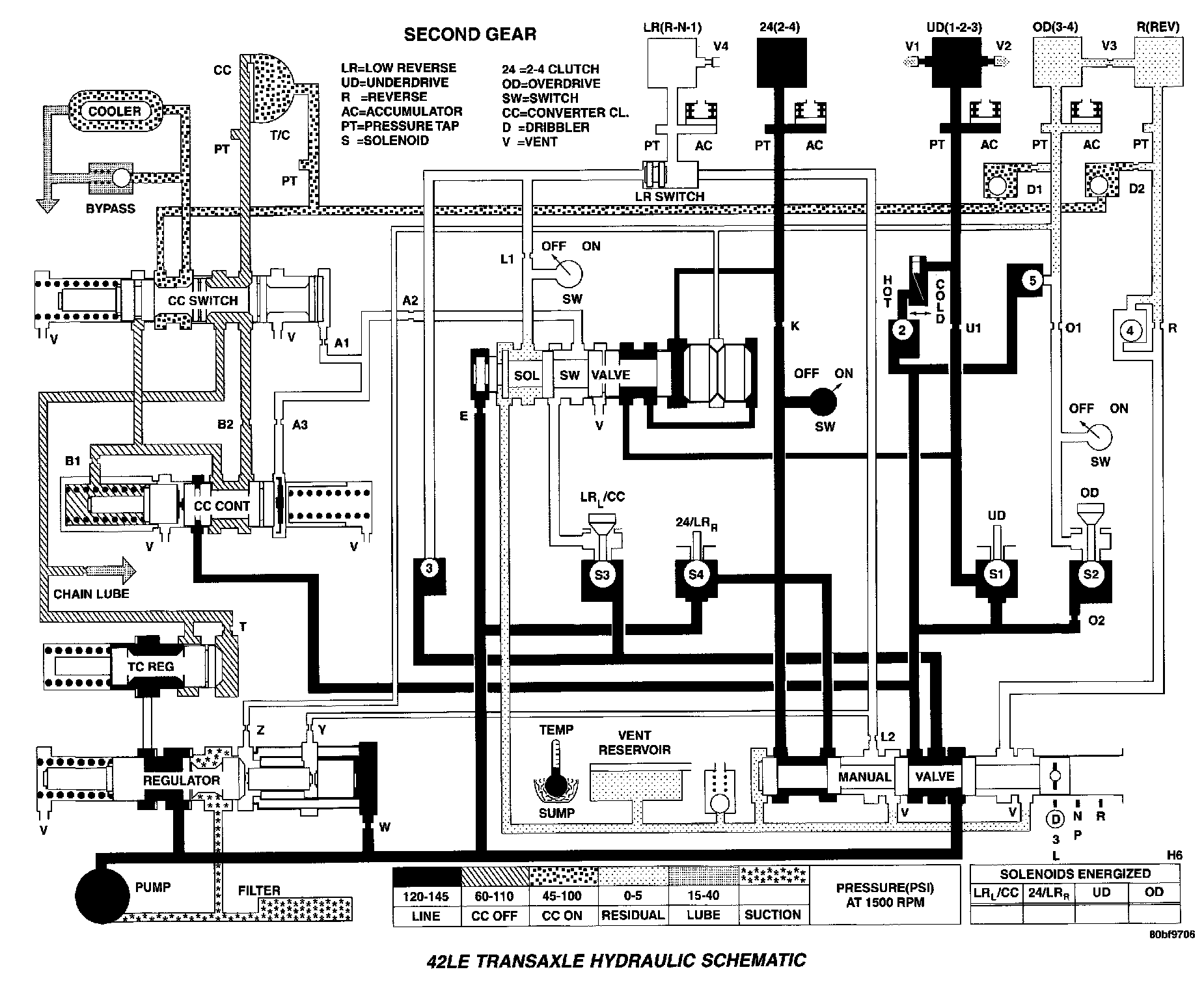

Second Gear:

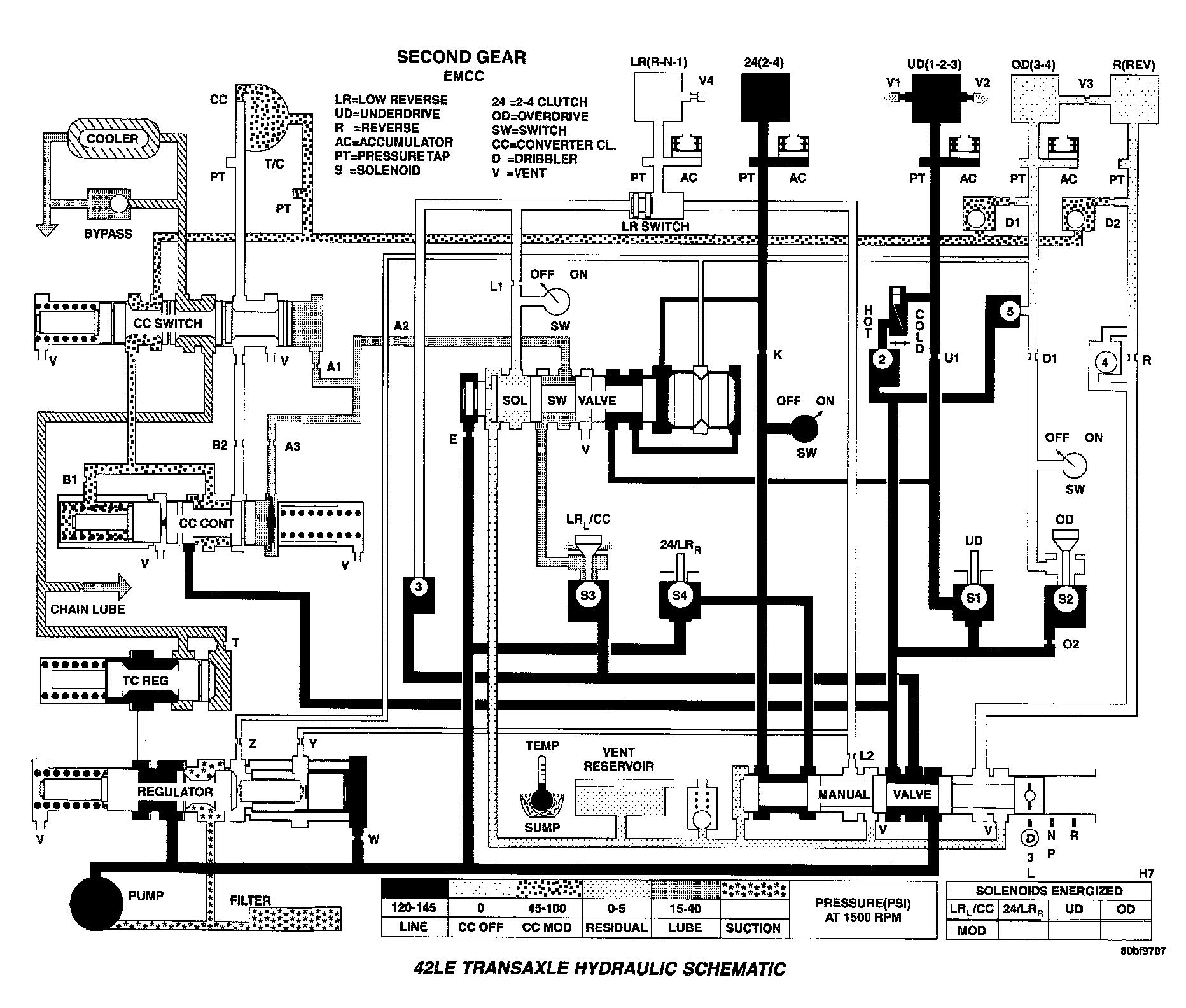

Second Gear (EMCC):

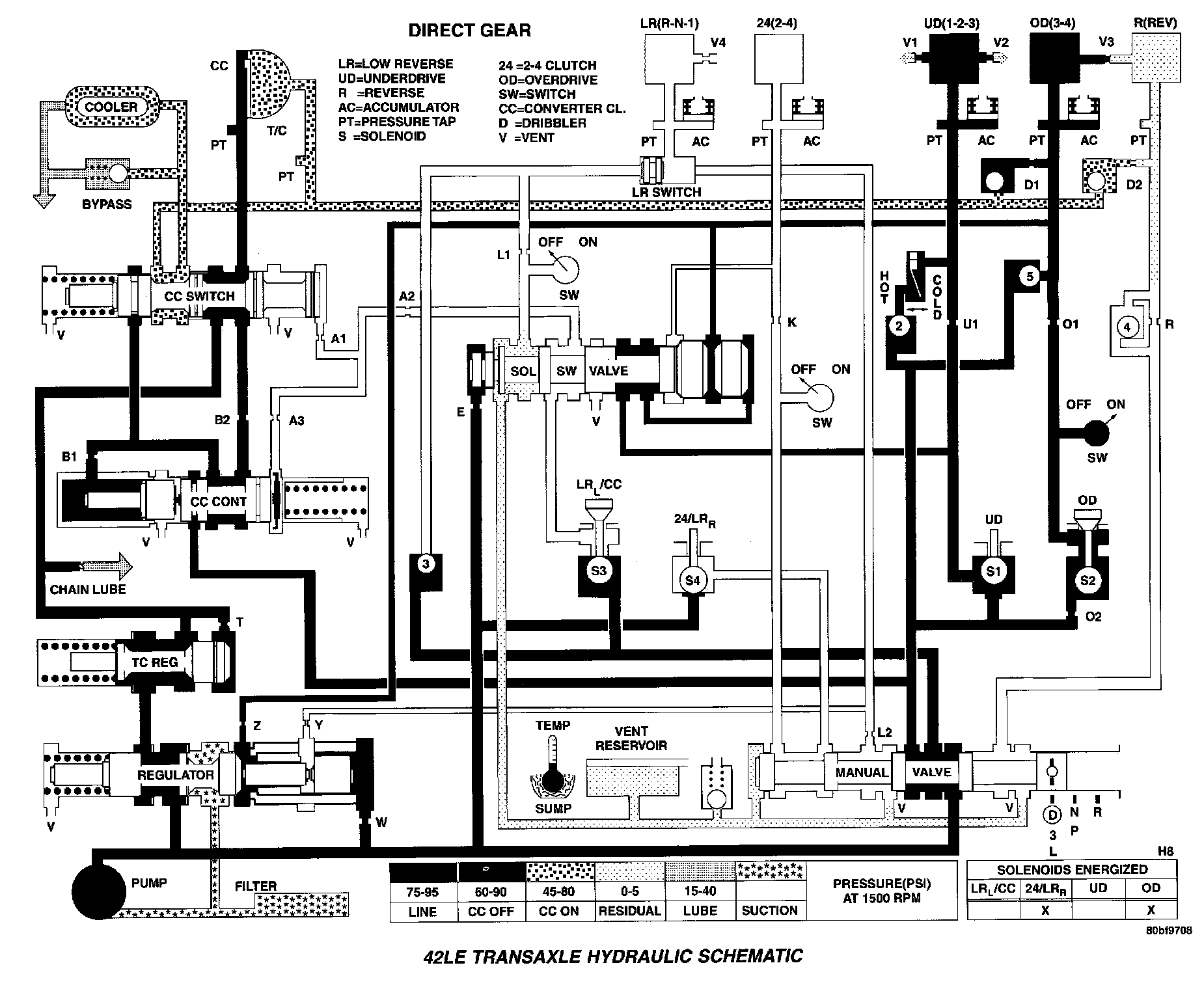

Direct Gear:

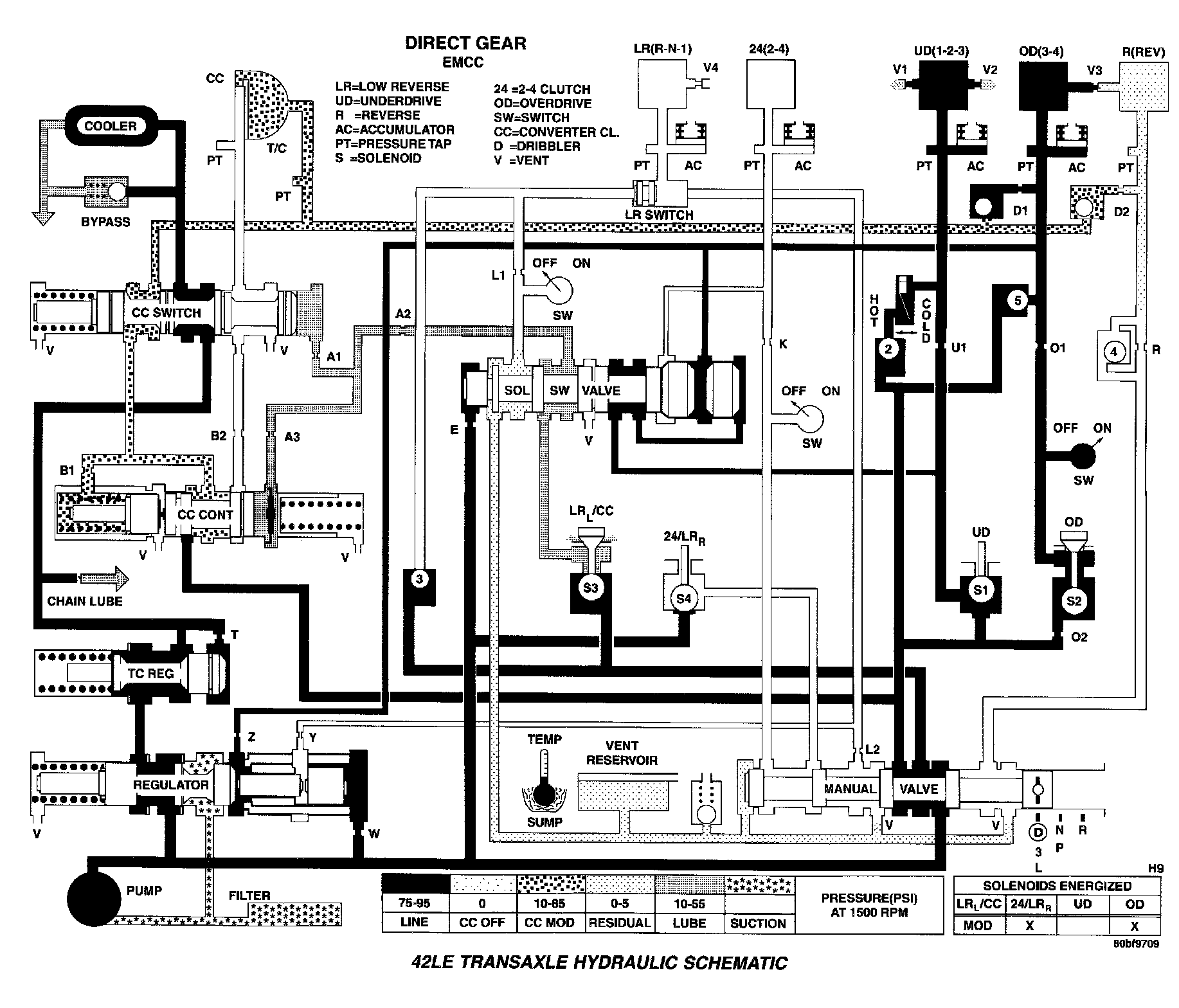

Direct Gear (EMCC):

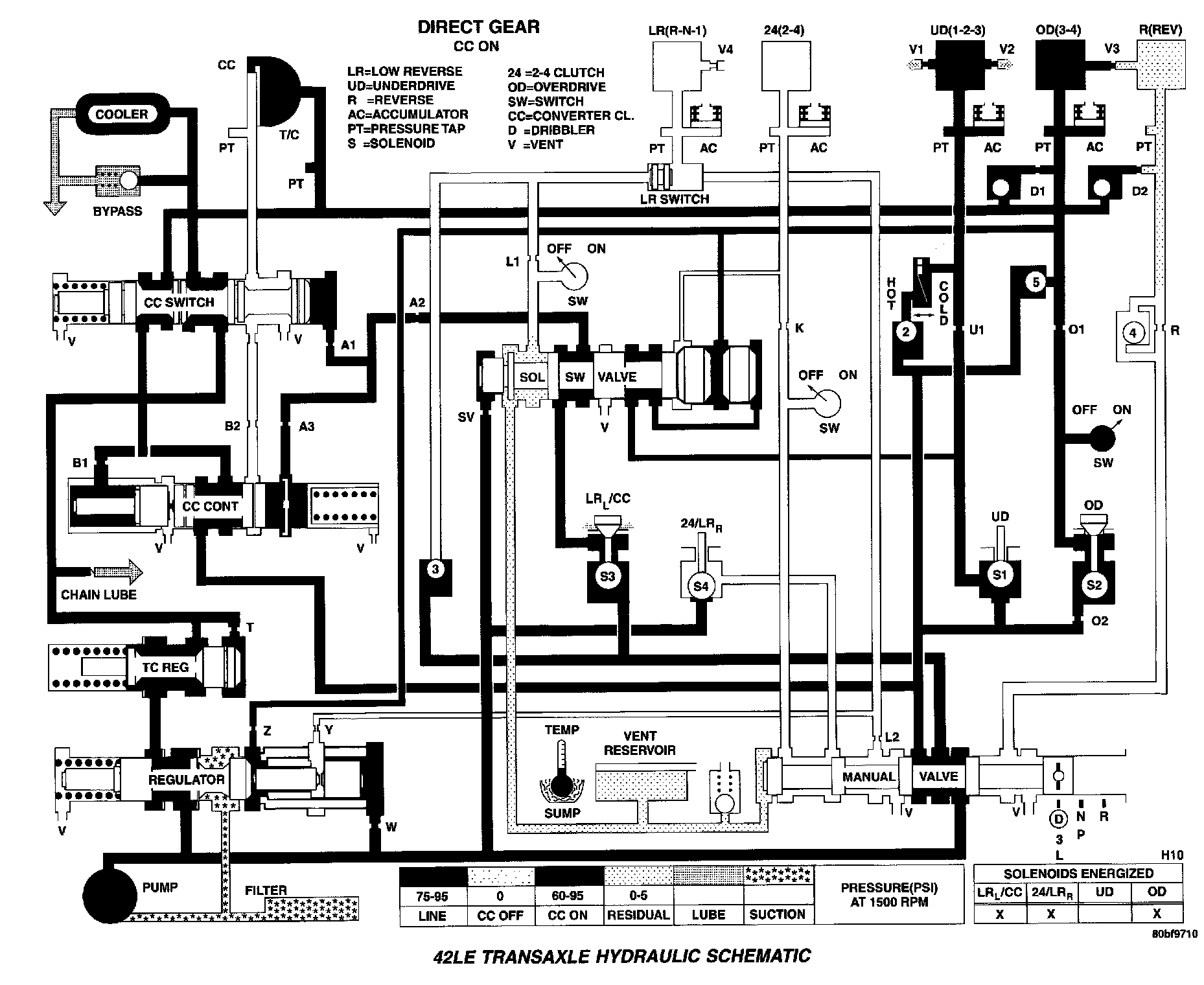

Direct Gear (CC On):

Overdrive:

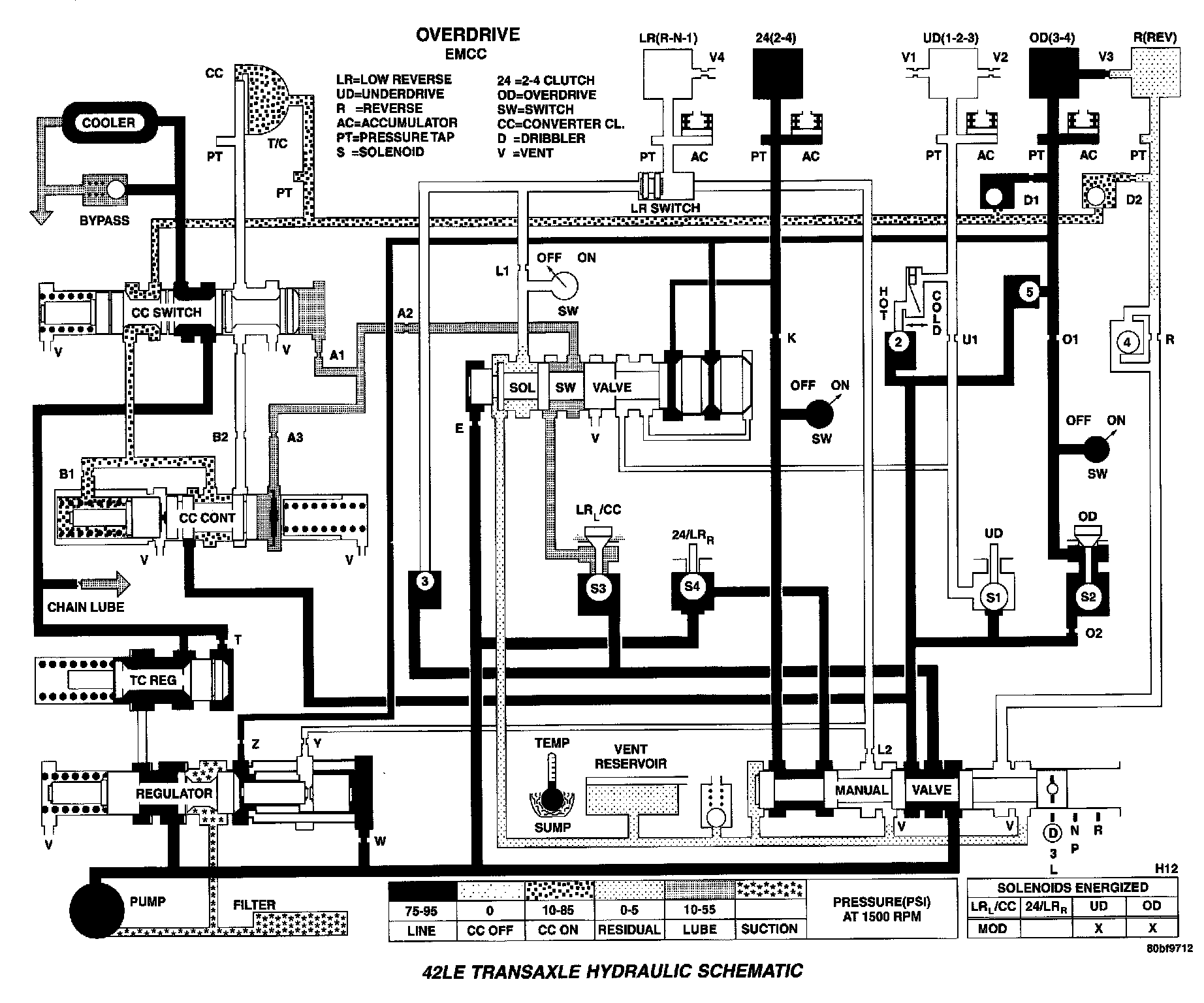

Overdrive (EMCC):

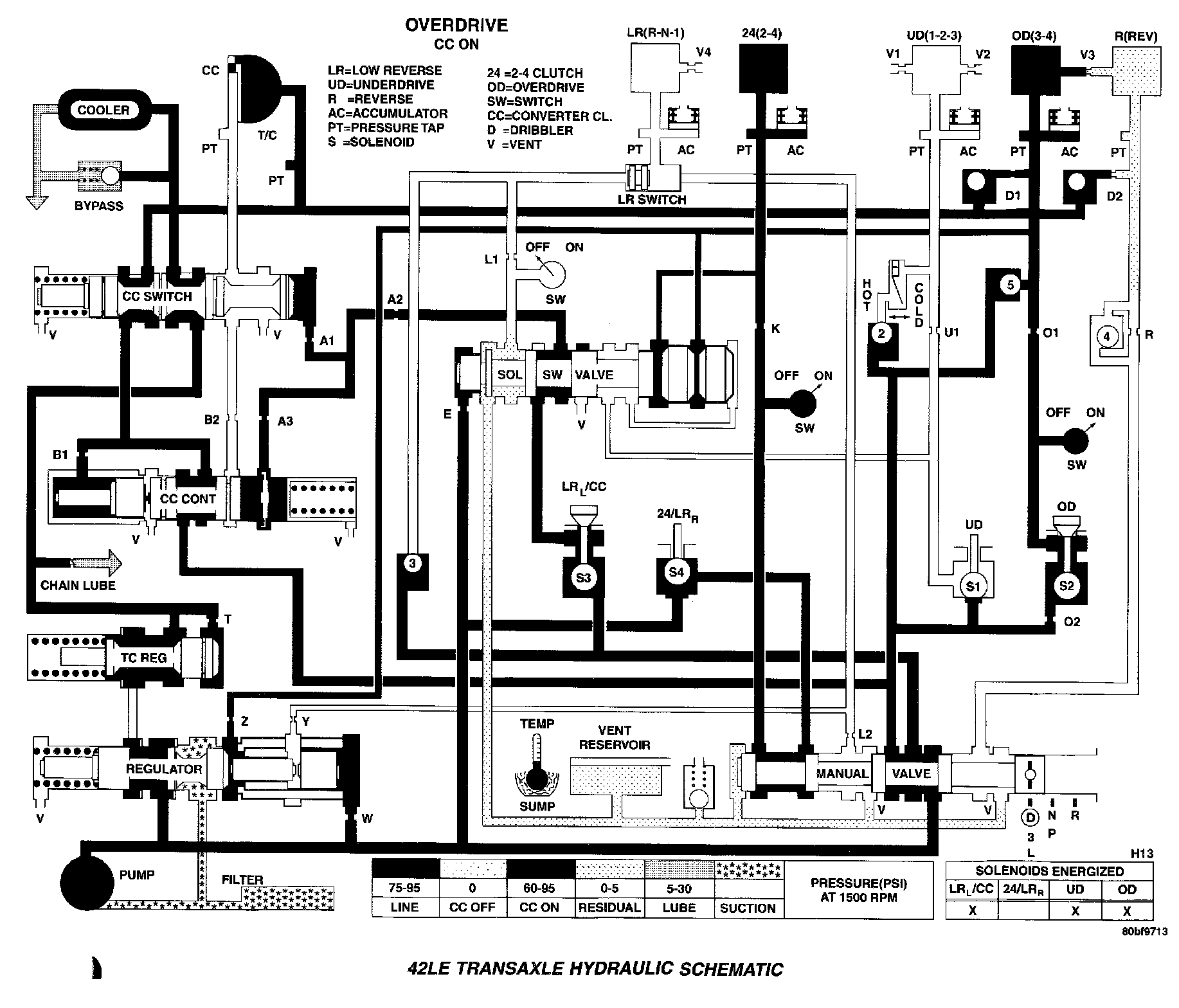

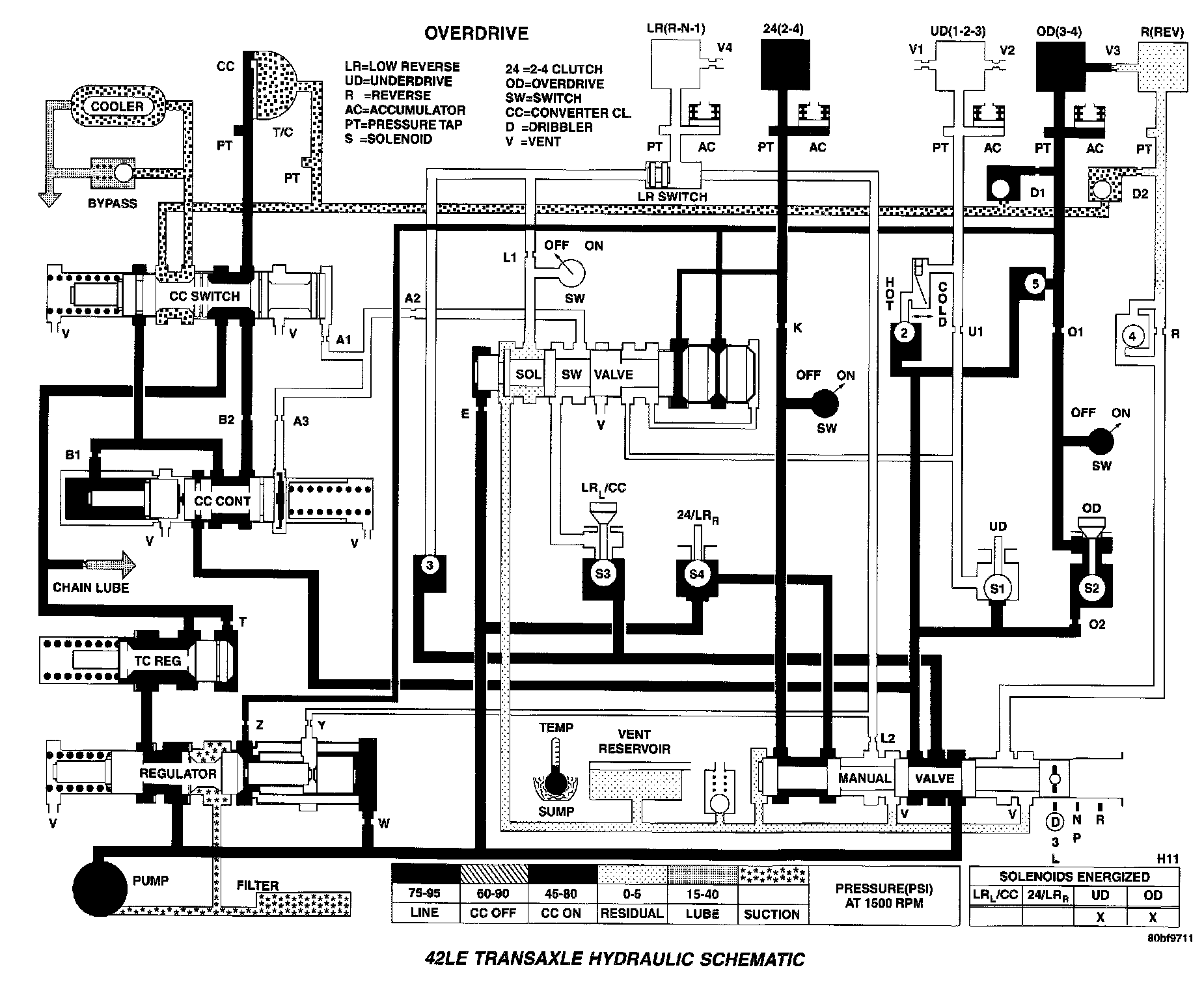

Overdrive (CC On):
