Trunk / Liftgate Weatherstrip: Service and Repair

TRUNK OPENING WEATHERSTRIP

REMOVAL

1. Open decklid.

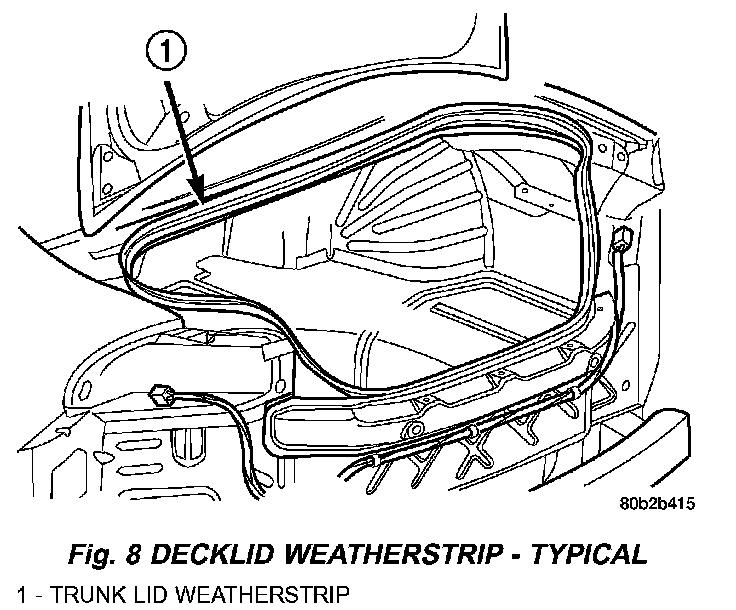

Fig. 8:

2. Pull decklid weatherstrip from decklid opening fence (Fig. 8).
3. Remove weatherstrip from vehicle.

INSTALLATION

1. Place weatherstrip in position on vehicle.
2. Push decklid weatherstrip onto decklid opening fence with molded joint at striker location.
3. Verify decklid operation and sealing.
