Connector Views

Body Control Module - C1:




Body Control Module - C2:

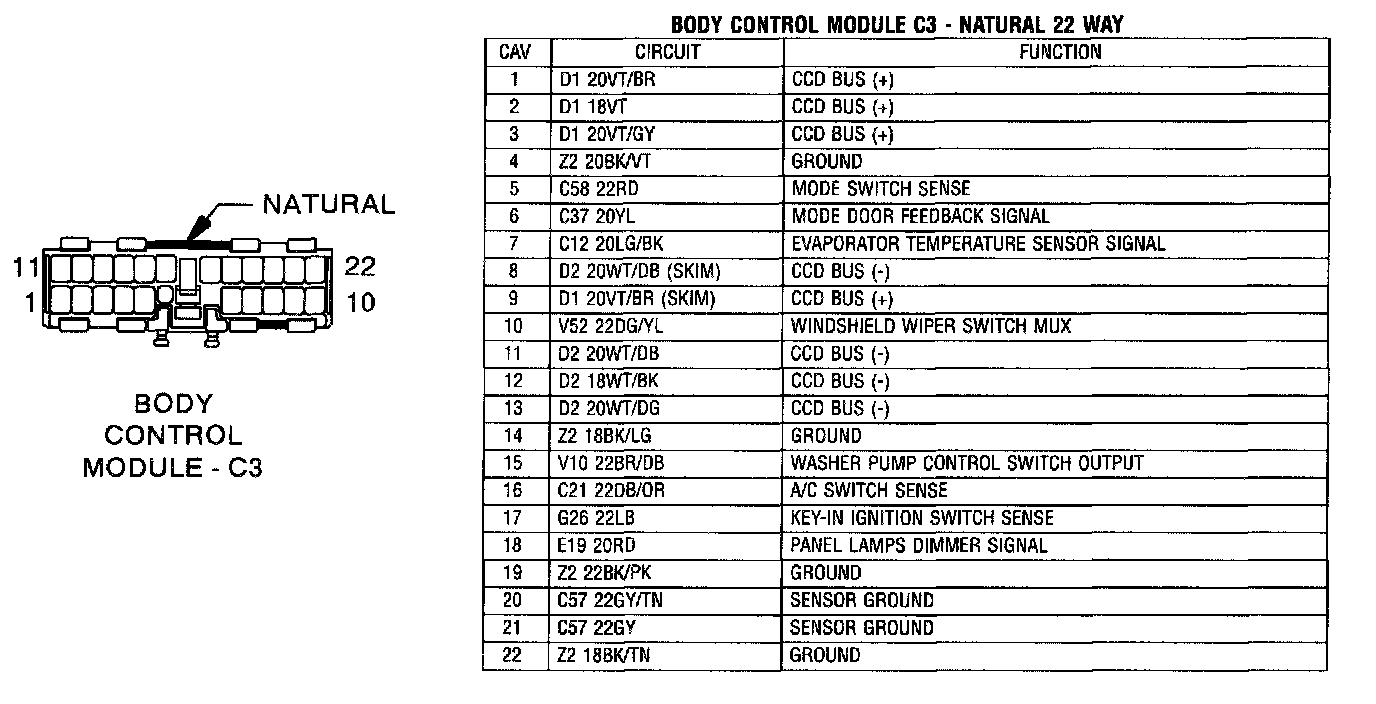

Body Control Module - C3:




Body Control Module - C4:

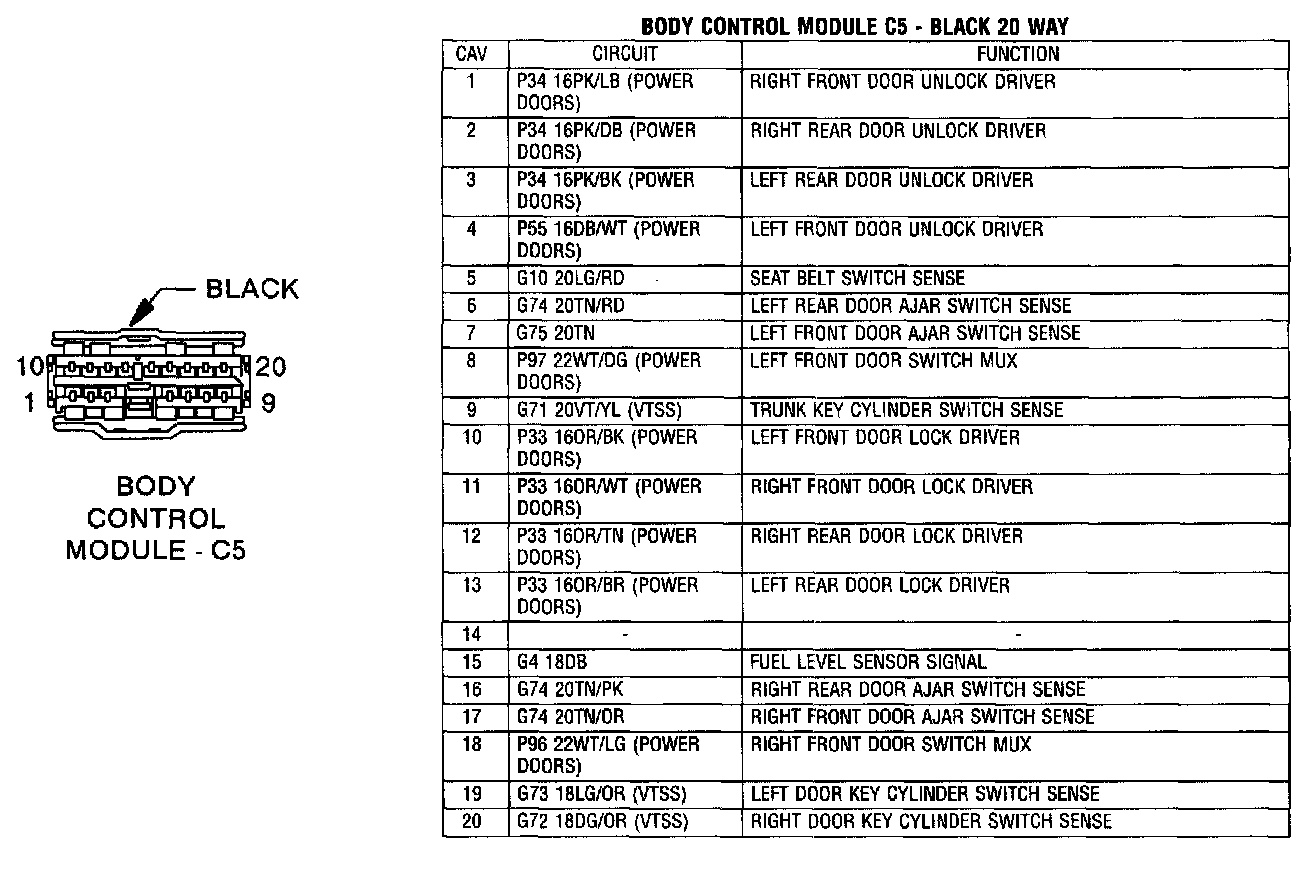

Body Control Module - C5:

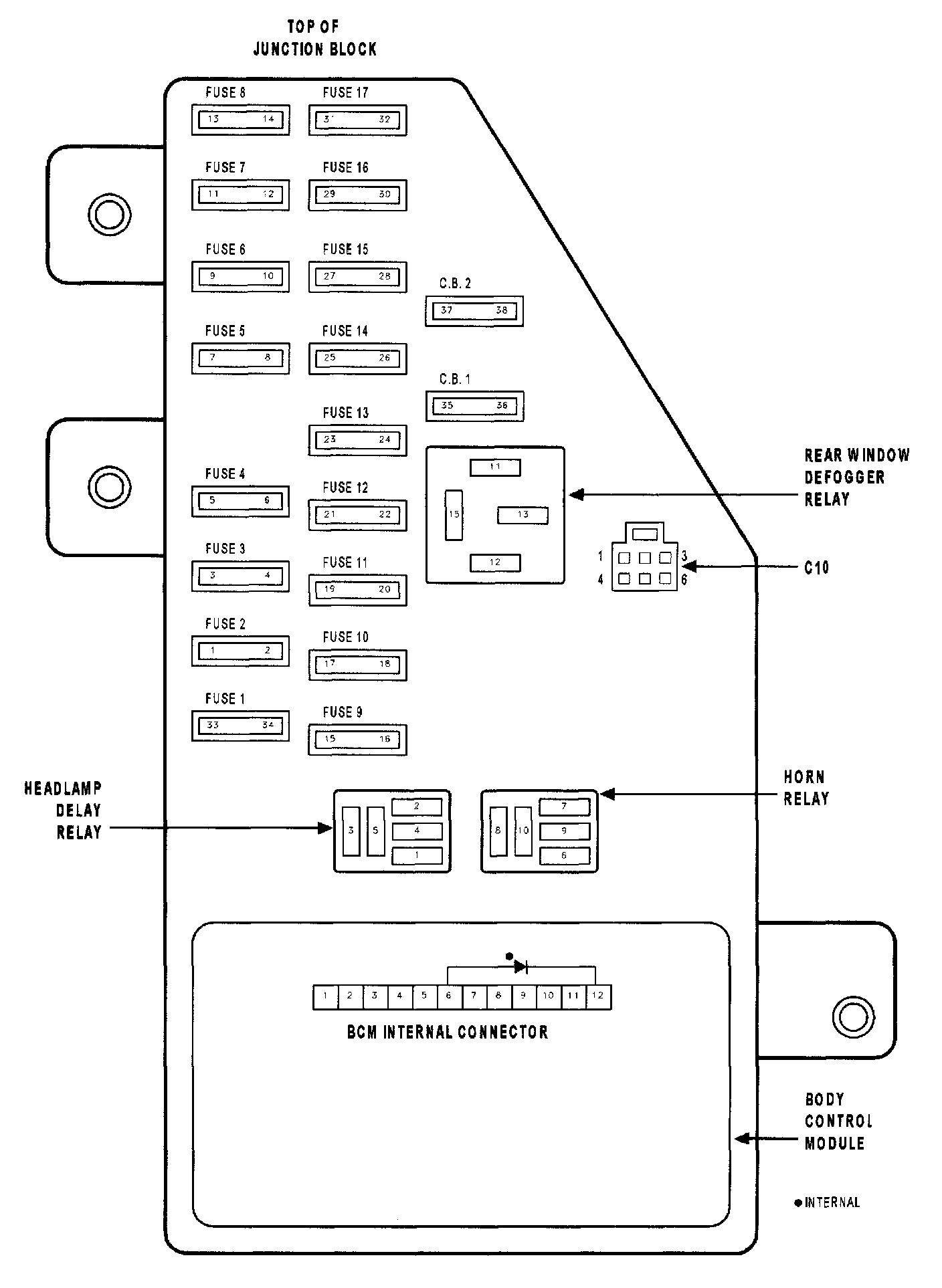

Junction Block:




J/B - Body Control Module:
