Transmission Control Systems: Locations

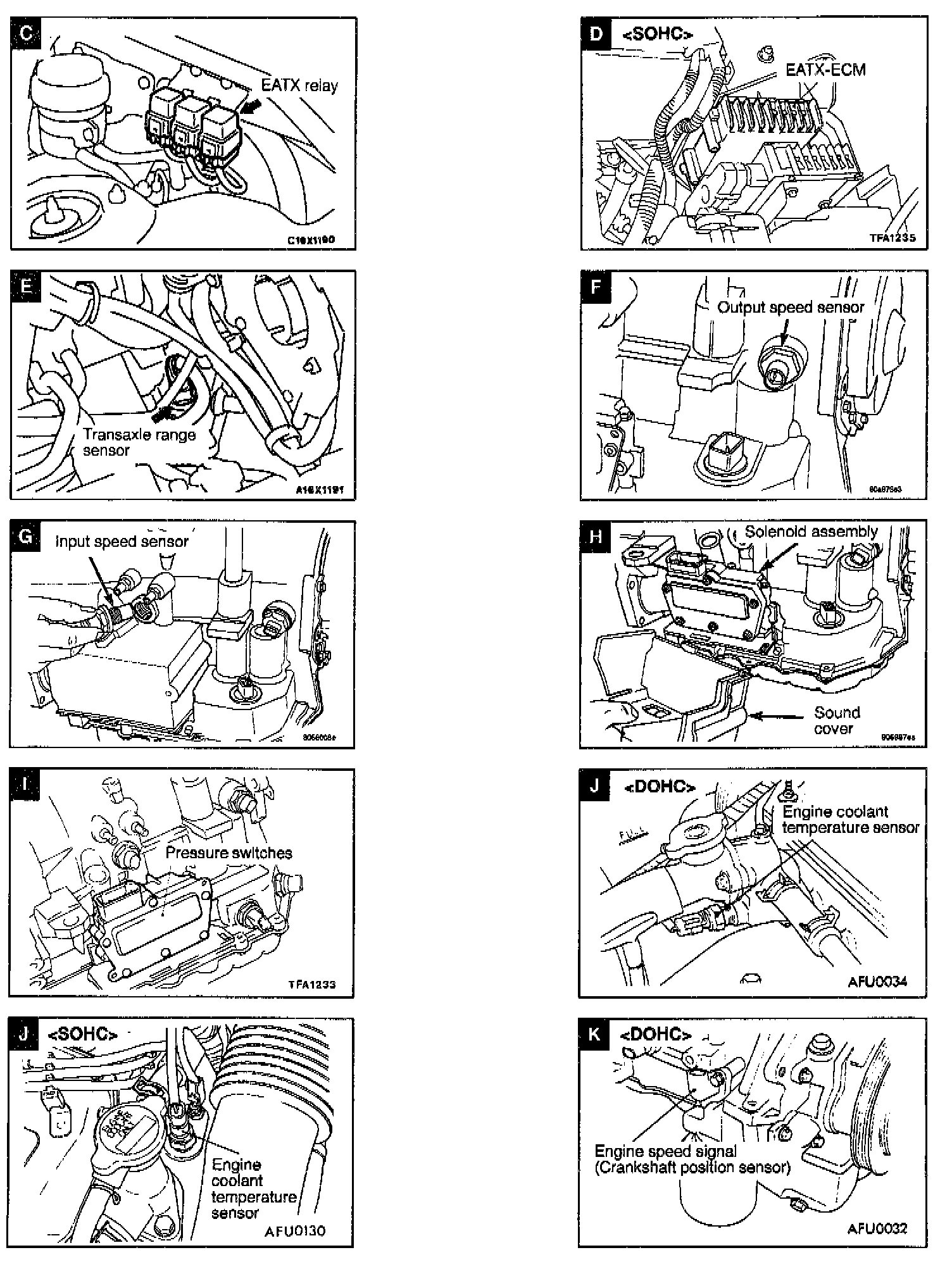

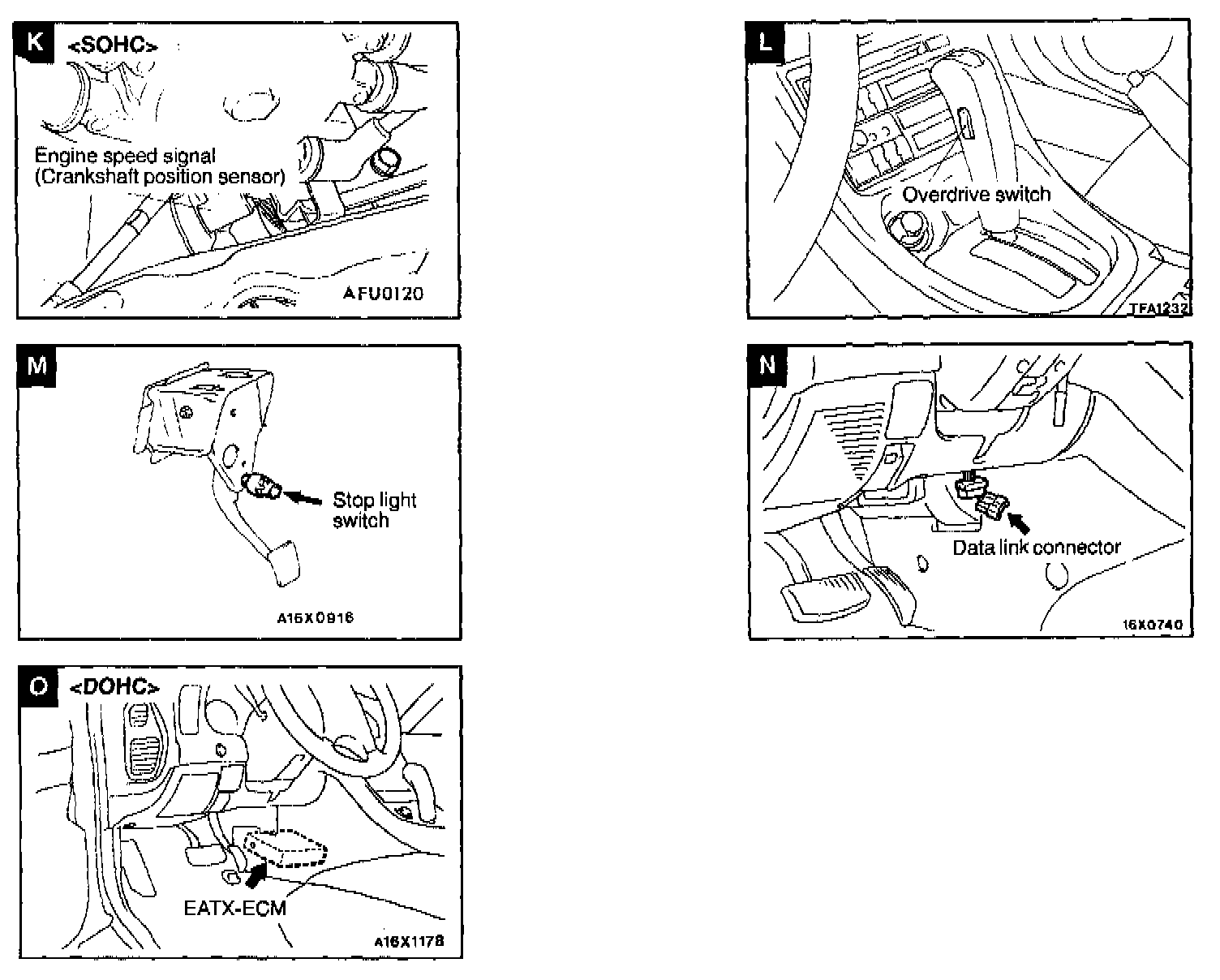

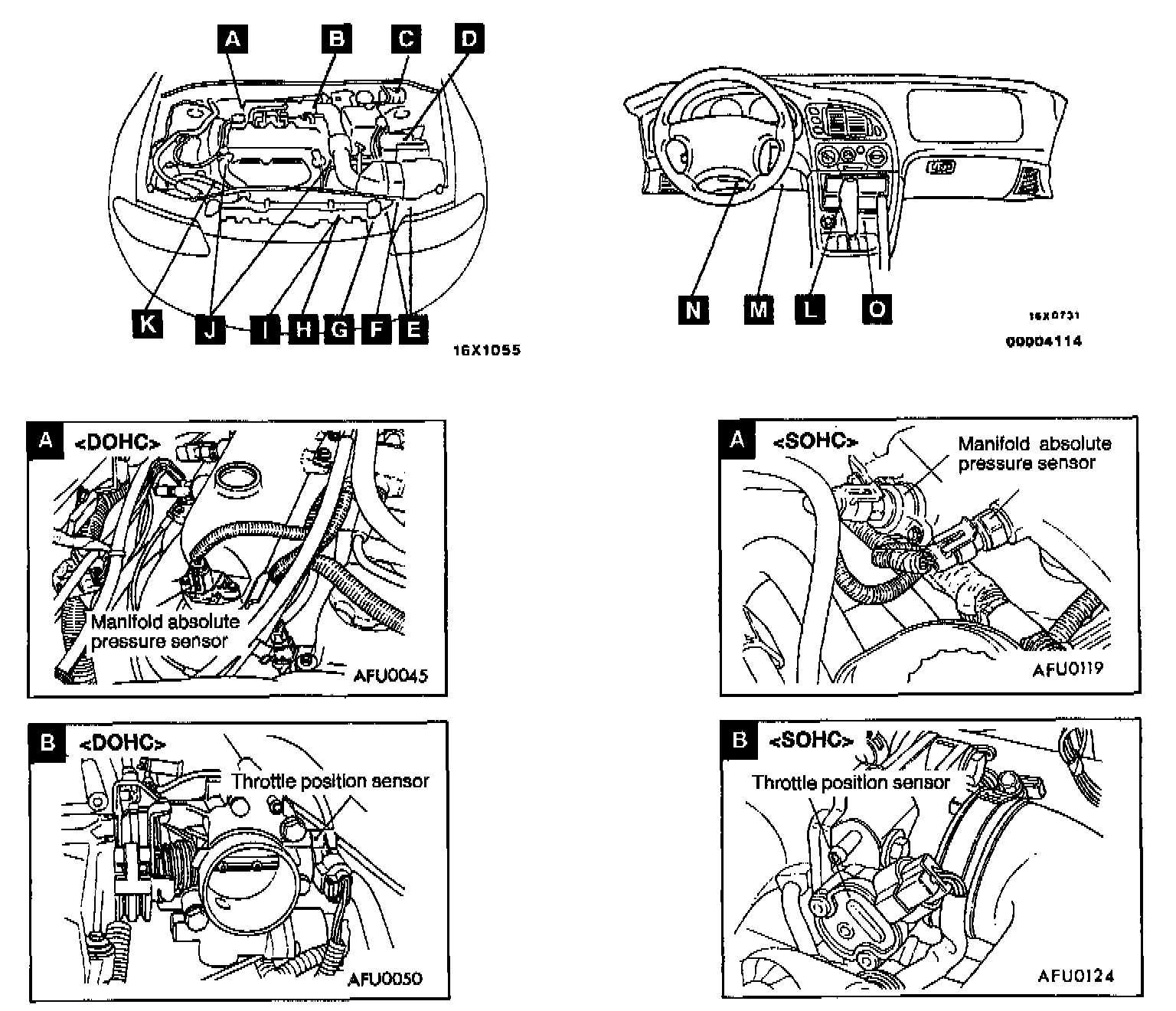

Refer to the following illustrations for Transaxle Control Component locations.

Part 1 Of 4:





Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:
