Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

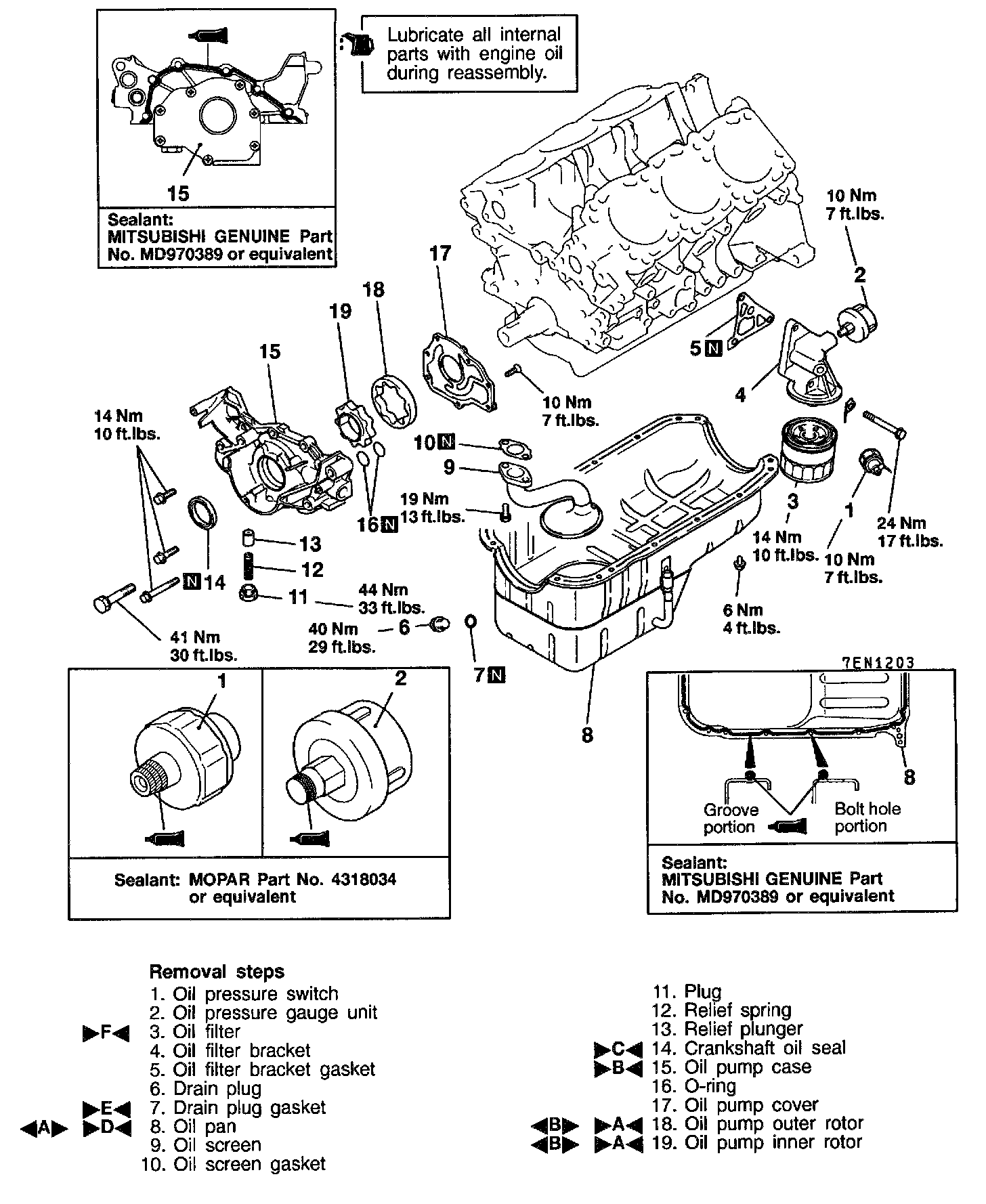

Oil Pump, Engine
