A/C - Wiring Diagram Revision
NUMBER: 26-01-00GGROUP: Miscellaneous
DATE: January, 2000
SUBJECT:
Service Manual Revisions
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1999 Concorde, Intrepid, LHS, 300 M
Service Manual - Publication Number 81-270-9140
DESCRIPTION OF CHANGES

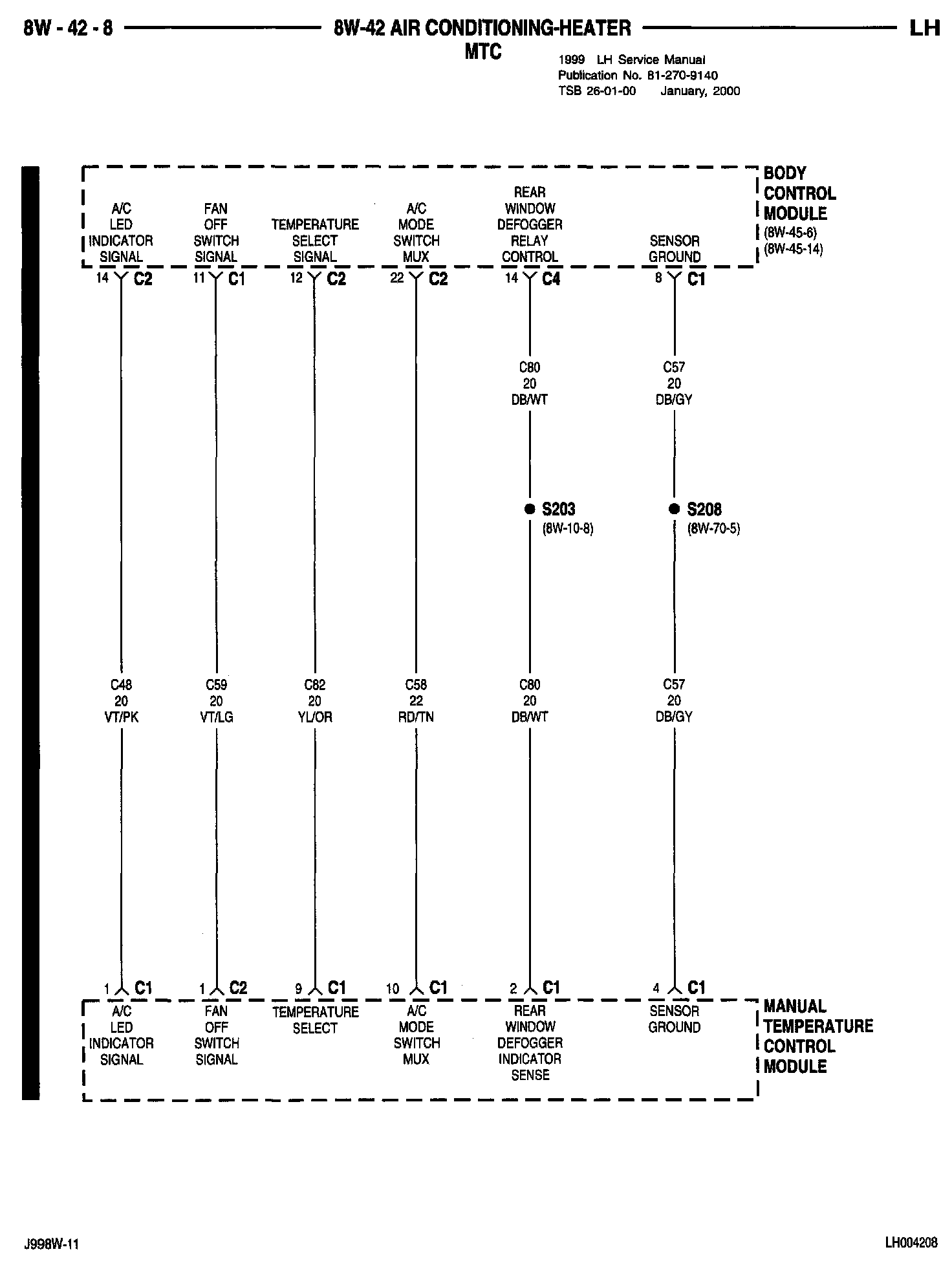

Revision to the wiring schematic
PAGES
8WA2-8
