Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Component Locations >> Centralized Junction >> Multi-Purpose Fuse

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Multi-Purpose Fuse

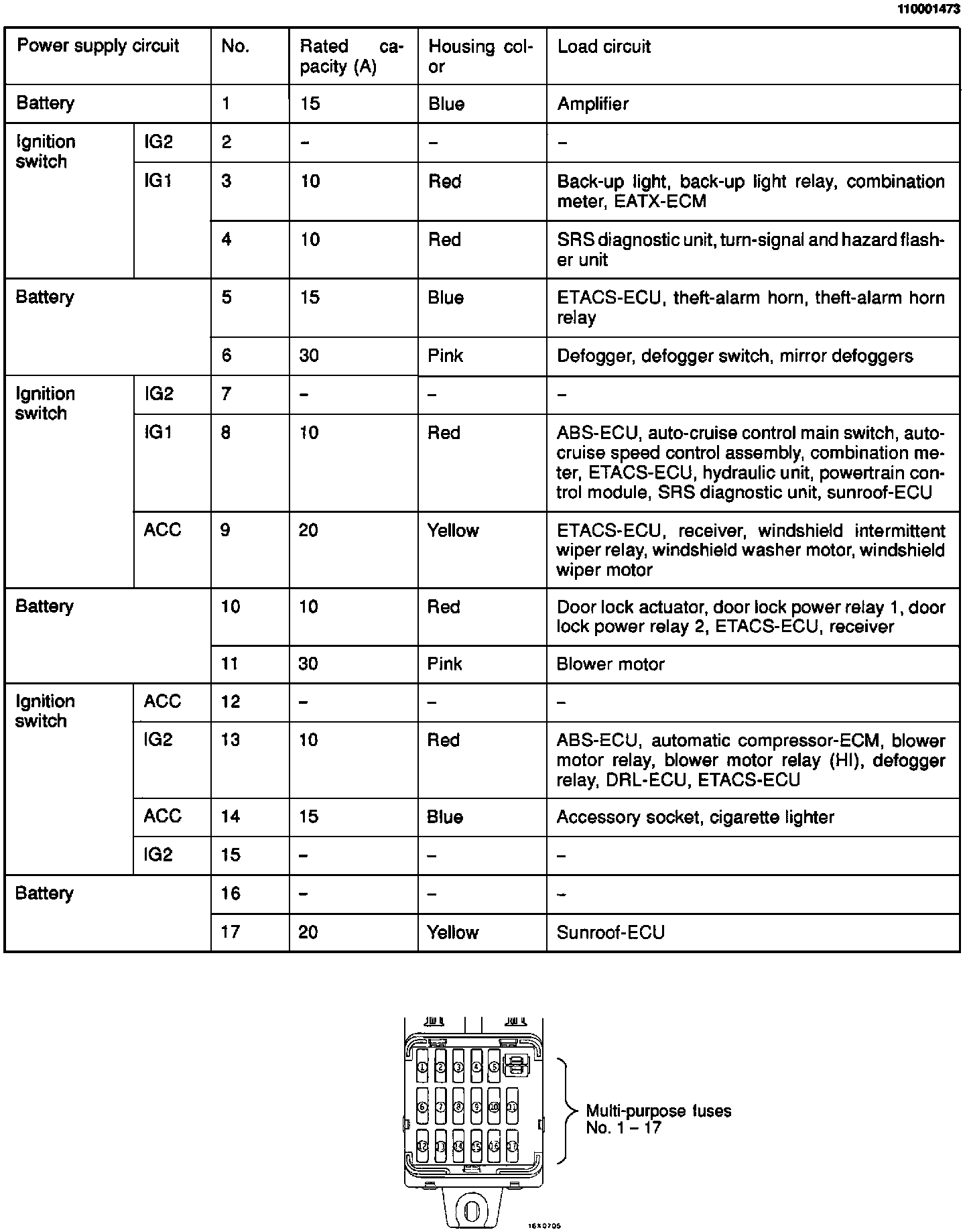

Multi-Purpose Fuse (In Junction Block):
