Fuse Block Relays

The location and identification of fuse block relays can be found on the inside of the instrument panel end cover.

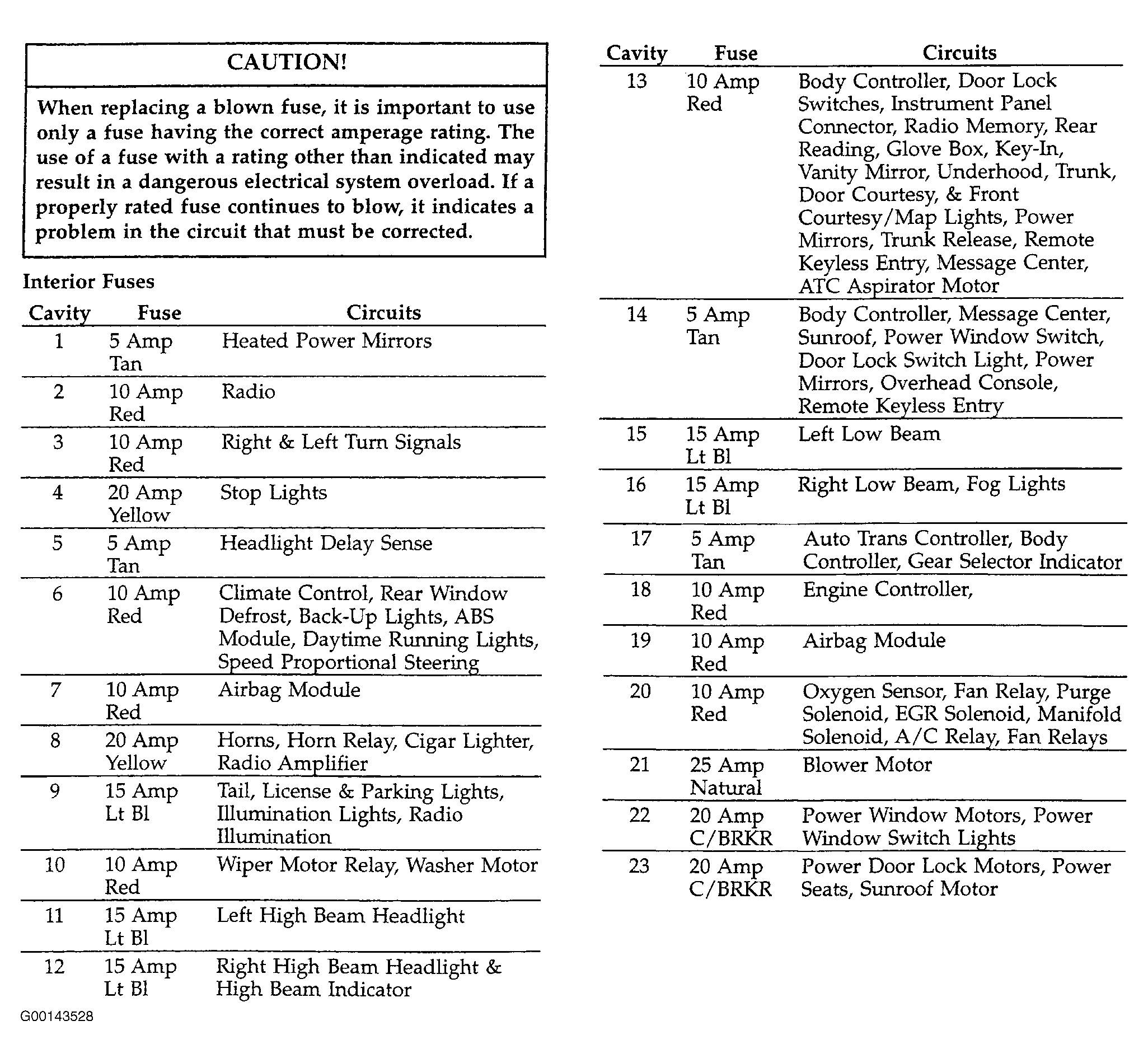

Fig 1: Identifying Junction Block & Fuses

Courtesy of CHRYSLER CORP.

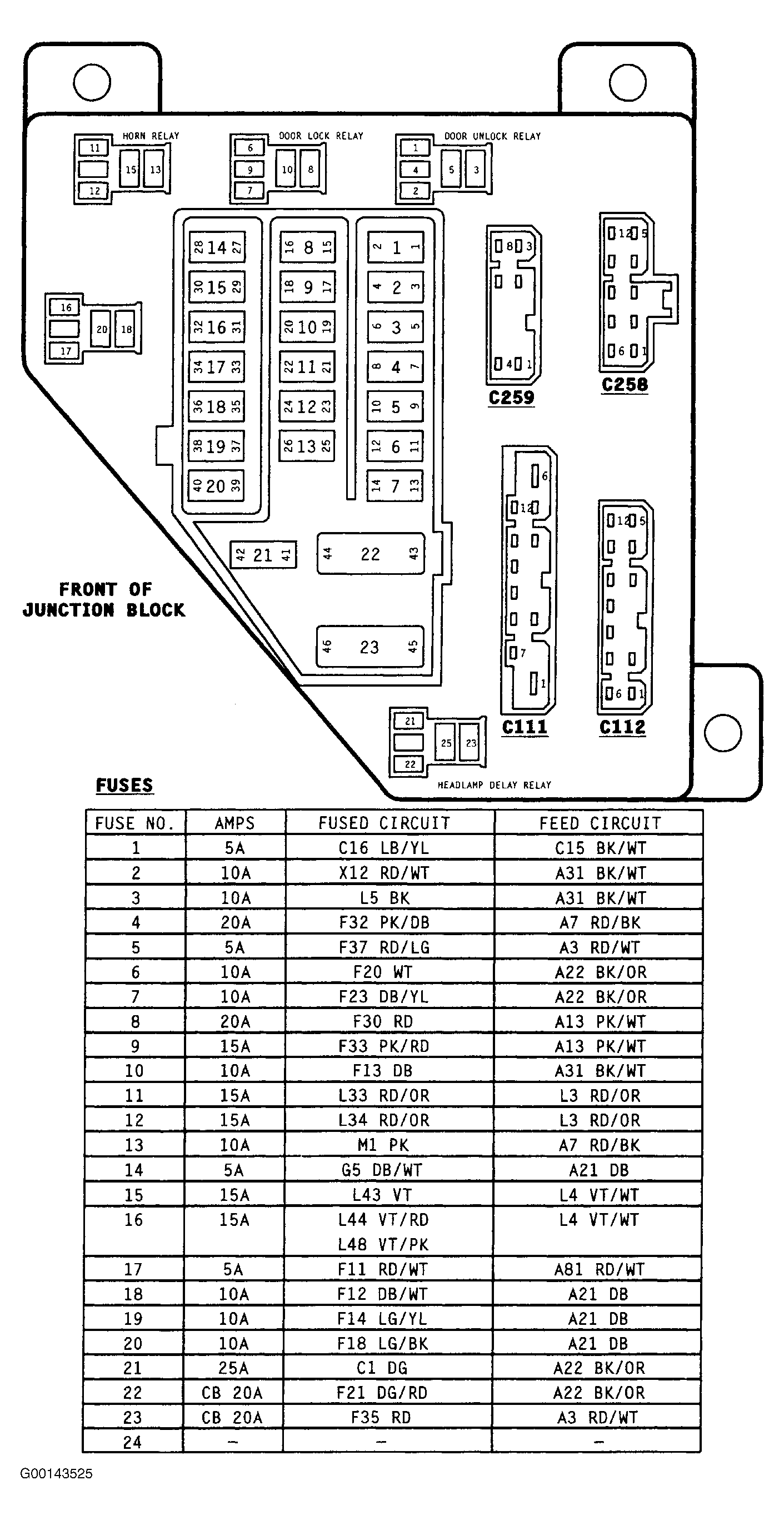

Fig 2: Identifying Junction Block Fuses & Circuits

Courtesy of DAIMLERCHRYSLER CORP.
