Connector Identification
CONNECTOR IDENTIFICATION
Connector
See Fig.
Body Control Module
2
Data Link Connector
3
Powertrain Control Module
4
Remote Keyless Entry Module
5
Trunk Key Cylinder Switch
6
VTSS Indicator Light
7
Fig 1: Identifying Body Control Module (BCM) Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 2: Identifying Data Link Connector Terminals
Courtesy of CHRYSLER CORP.

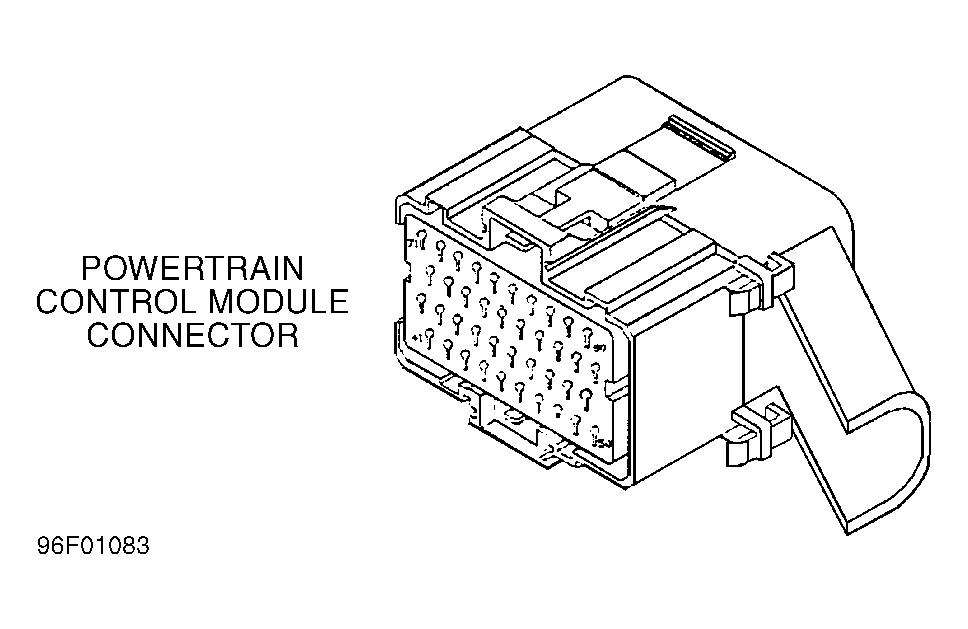

Fig 3: Powertrain Control Module Connector Terminal Identification
