Audio Diagnostic Flow
>>
Without Infinity System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Without Infinity System

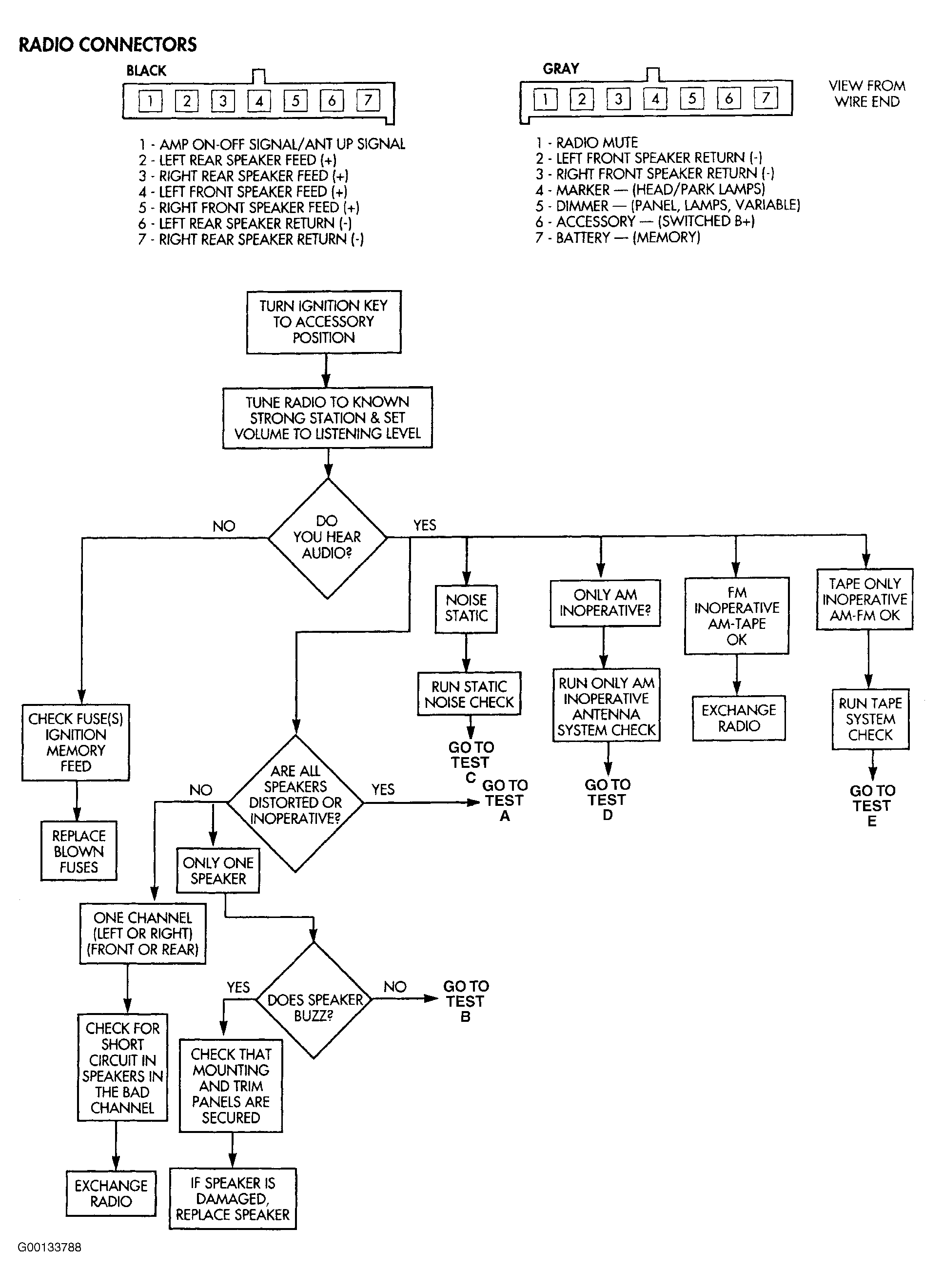

Fig 1: Audio Diagnostic Flow Chart (Without Infinity)
Courtesy of CHRYSLER CORP.
