Power Mirror Switch Test
- Remove power mirror switch from its mounting position. Disconnect switch from wiring harness. In case of memory mirrors (Green 8-pin mirror switch connector and memory switch in driver's door panel), wiring disconnects from cowl top harness rather than mirror harness.
- Place mirror selector in appropriate position. See appropriate POWER MIRROR SWITCH CONTINUITY SPECIFICATIONS

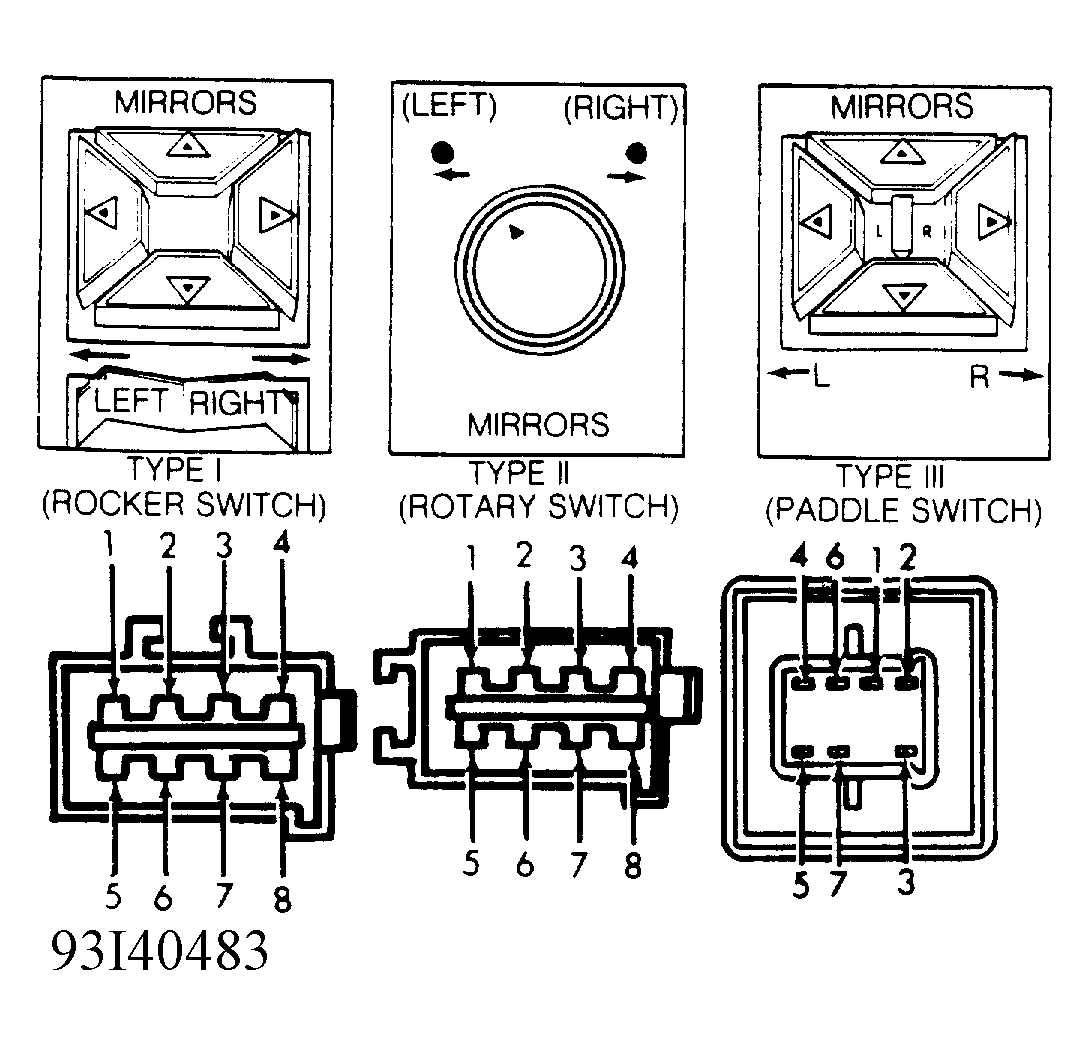

table. Check for continuity between specified switch pins with mirror in position indicated. See Figure
. If continuity is not as specified, replace switch.
