Test 7A - Identifying Faulty Warning Indicator

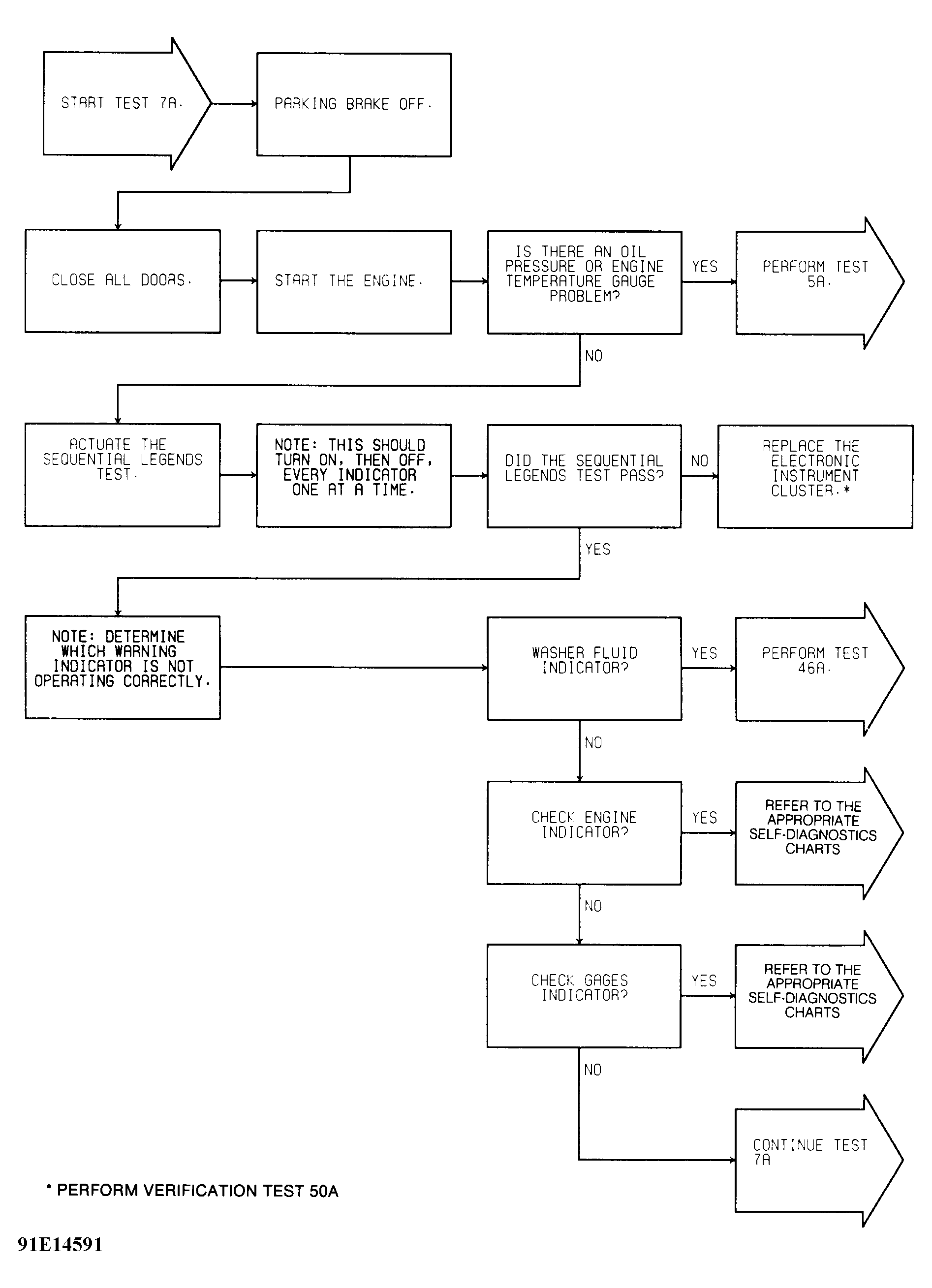

Fig 1: Test 7A (1 of 2) - Identifying Faulty Warning Indicator
G91E14591

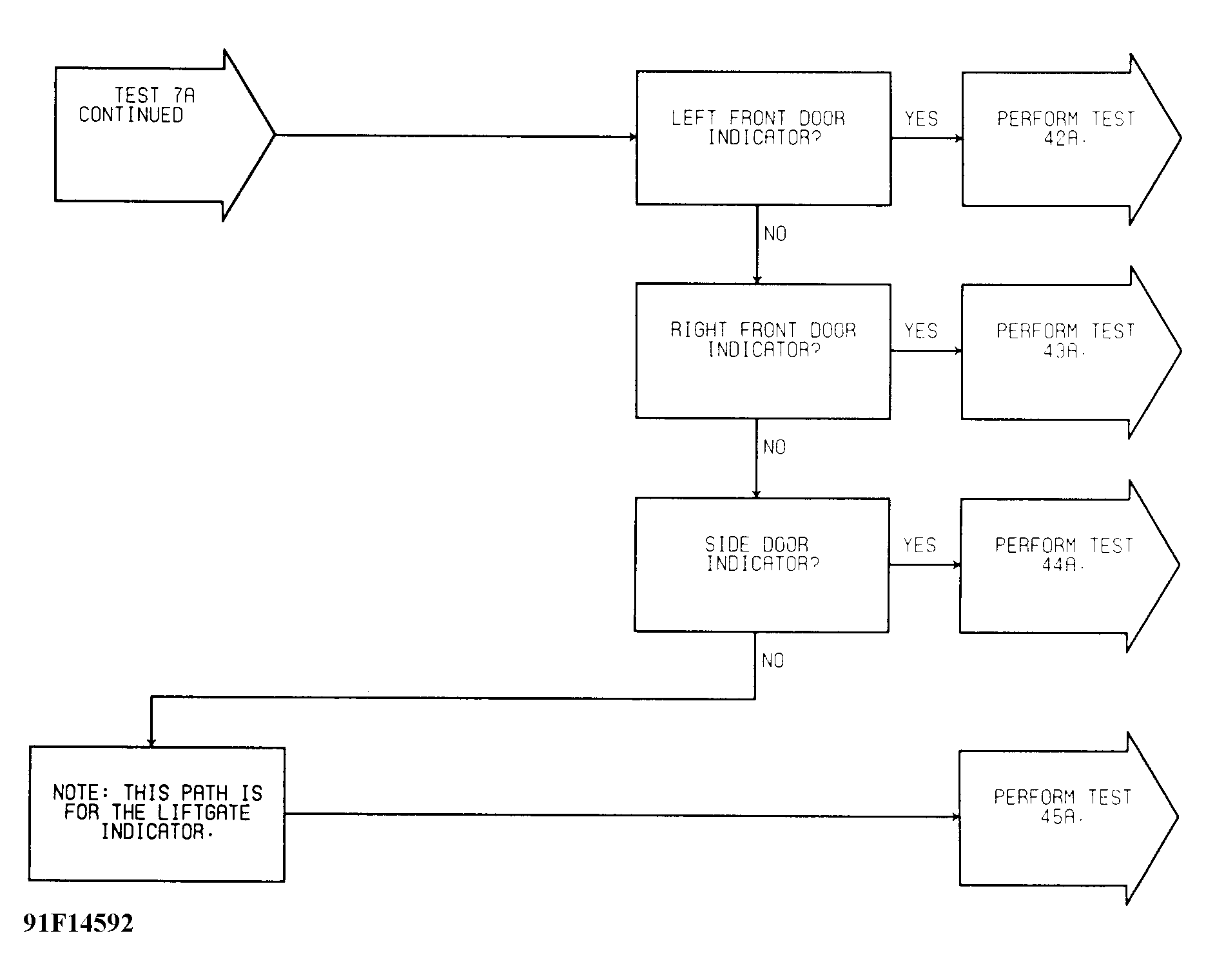

Fig 2: Test 7A (2 of 2) - Identifying Faulty Warning Indicator
G91F14592
