Test 58B - Testing For Bus Bias Level Too Low

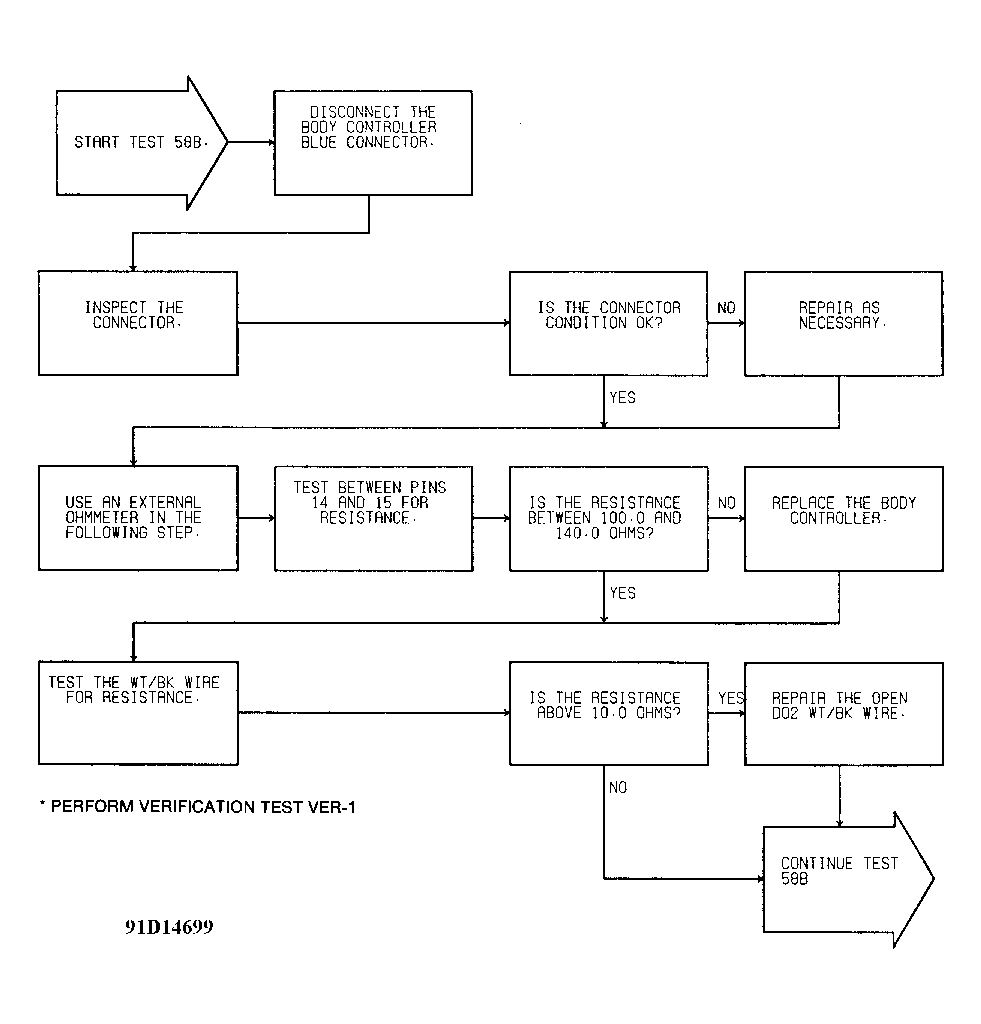

Fig 1: Test 58B (1 of 2) - Testing For Bus Bias Level Too Low
G91D14699

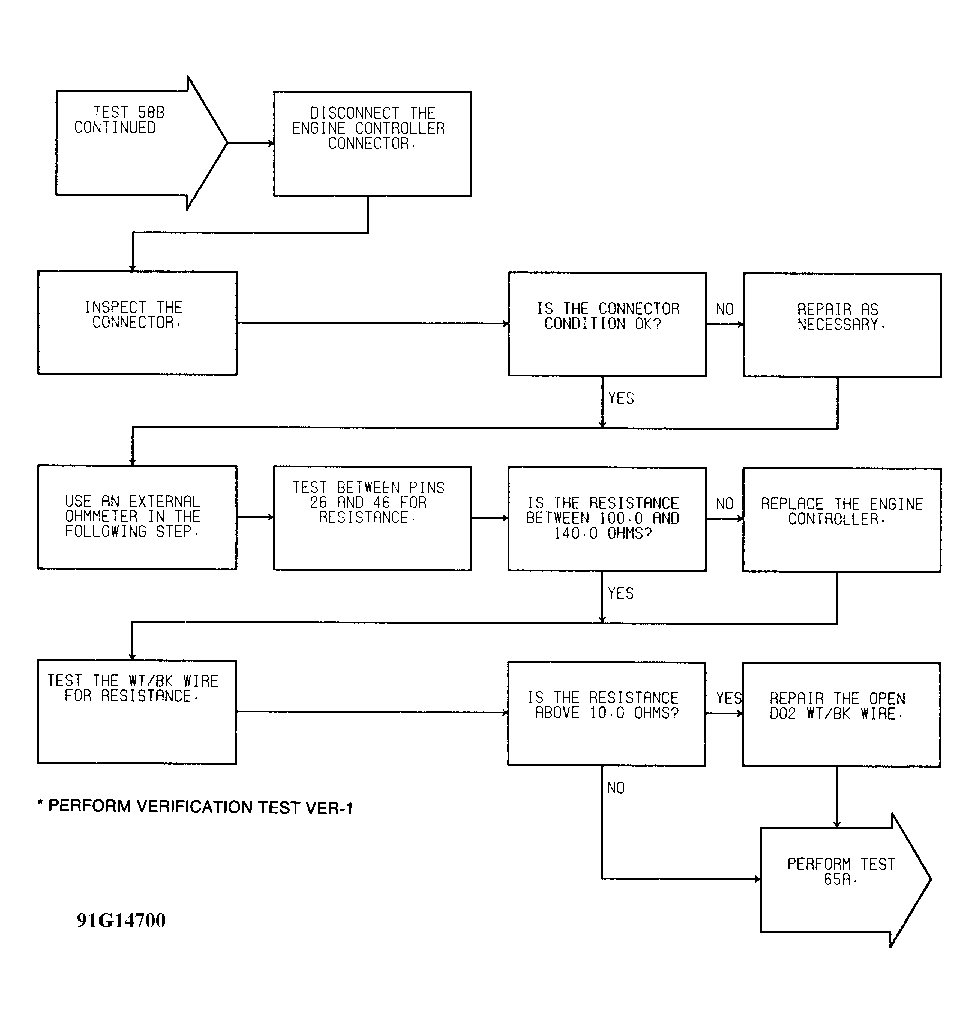

Fig 2: Test 58B (2 of 2) - Testing For Bus Bias Level Too Low
G91G14700
