Test 58A - Testing For Bus Bias Level Too Low

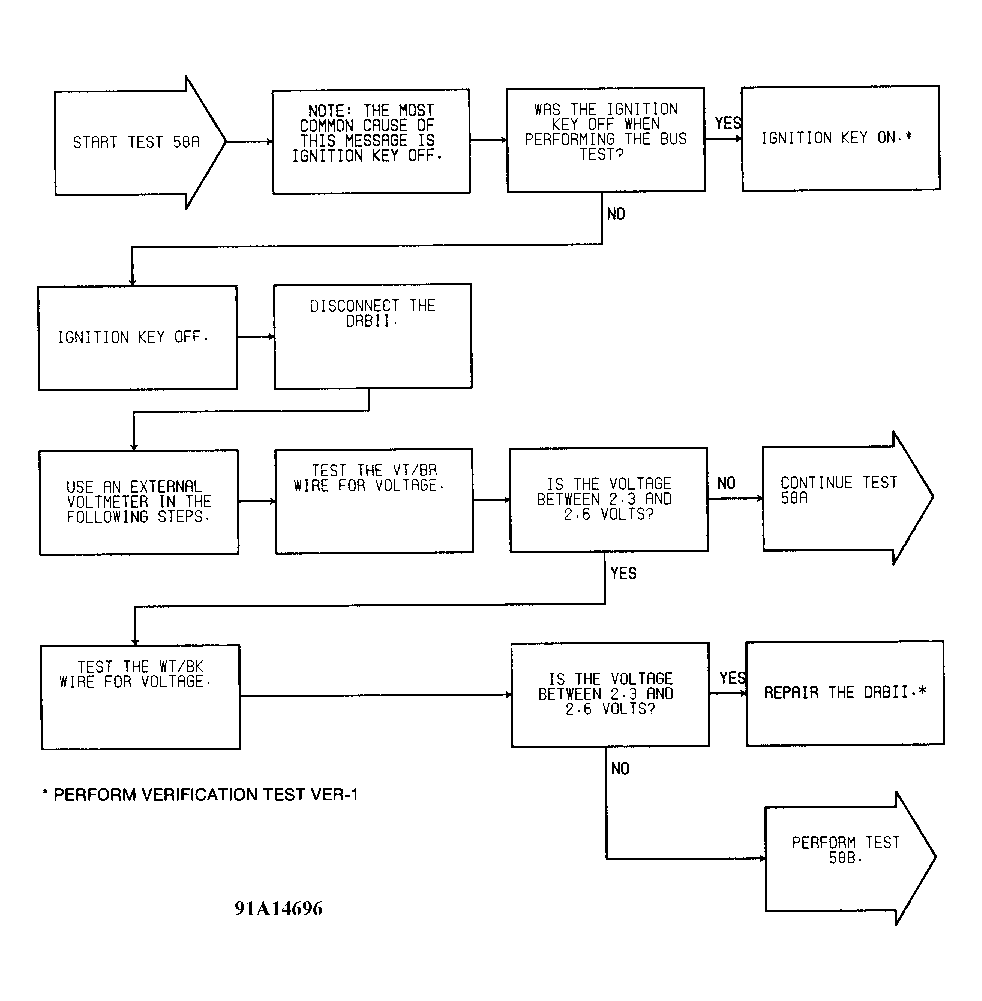

Fig 1: Test 58A (1 of 3) - Testing For Bus Bias Level Too Low
G91A14696

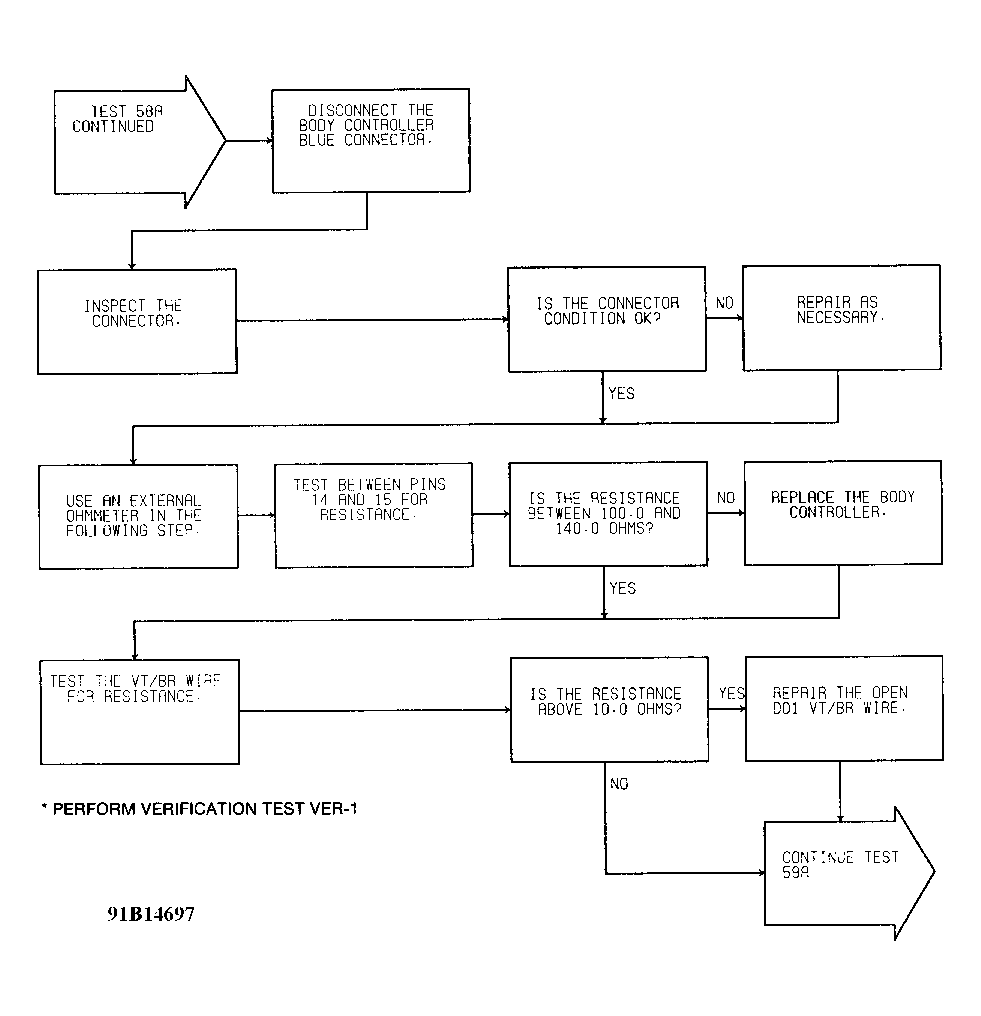

Fig 2: Test 58A (2 of 3) - Testing For Bus Bias Level Too Low
G91B14697

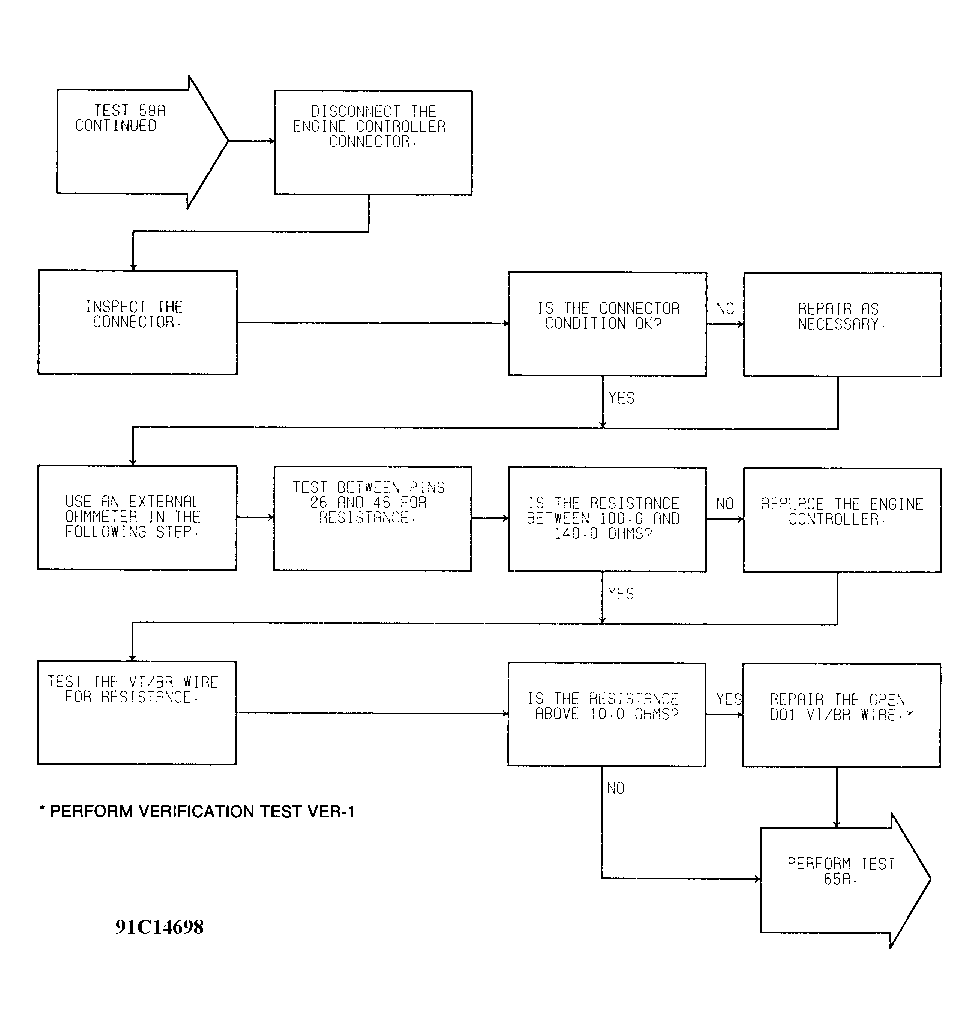

Fig 3: Test 58A (3 of 3) - Testing For Bus Bias Level Too Low
G91C14698
