LeBaron Base, 2D Convertible, 2.2 C
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Controls - Tests W/O Codes - BCC
>>
Compass/Temp Module Test 90: Finding Problem With Compass/Temp Module Not Covered By Fault Codes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Compass/Temp Module Test 90: Finding Problem With Compass/Temp Module Not Covered By Fault Codes

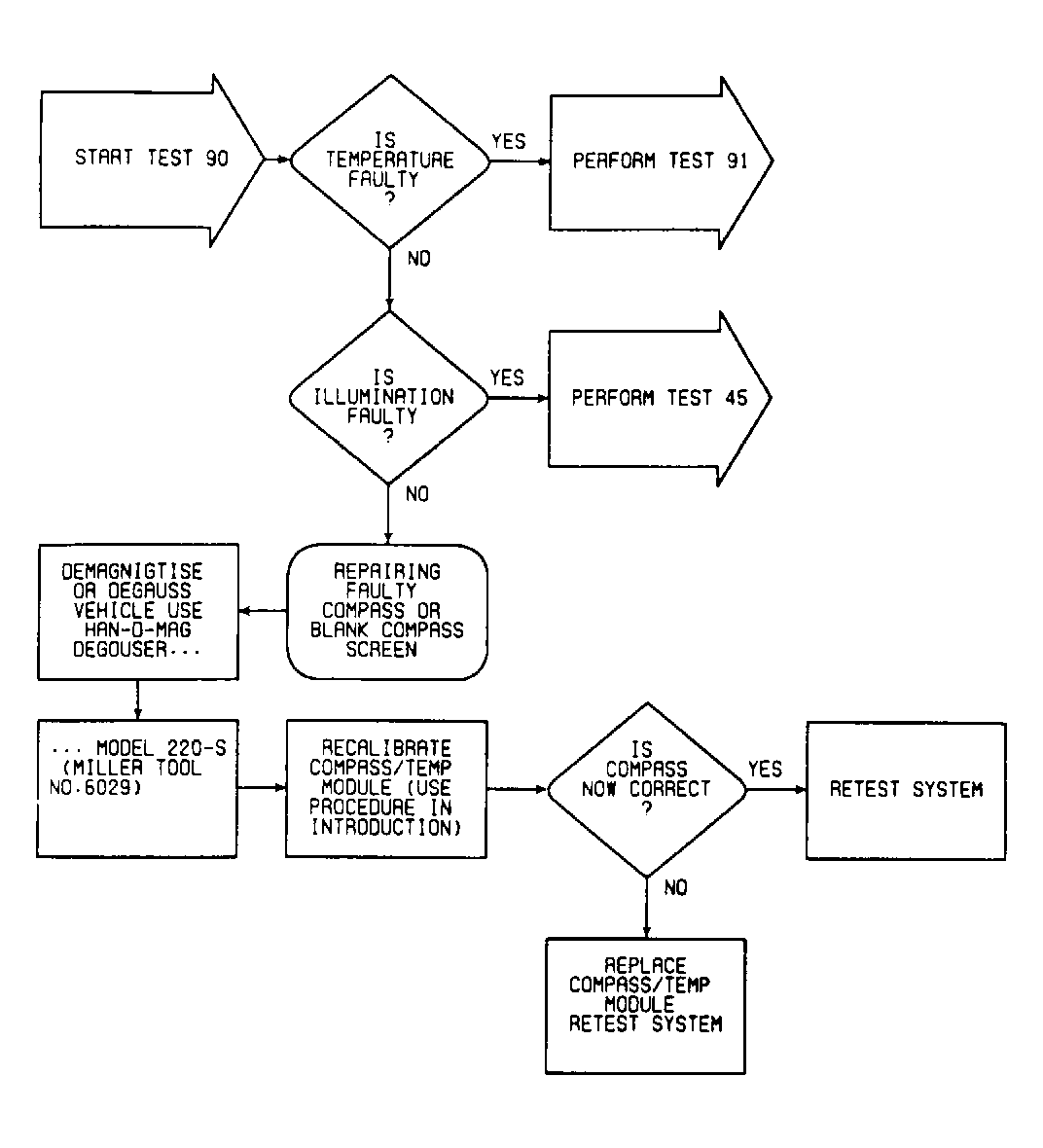

Fig 1: Test 90: Flow Chart
