Engine Controls - Tests W/O Codes - BCC
>>
Test 116: Check For No Response At Body Controller
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 116: Check For No Response At Body Controller

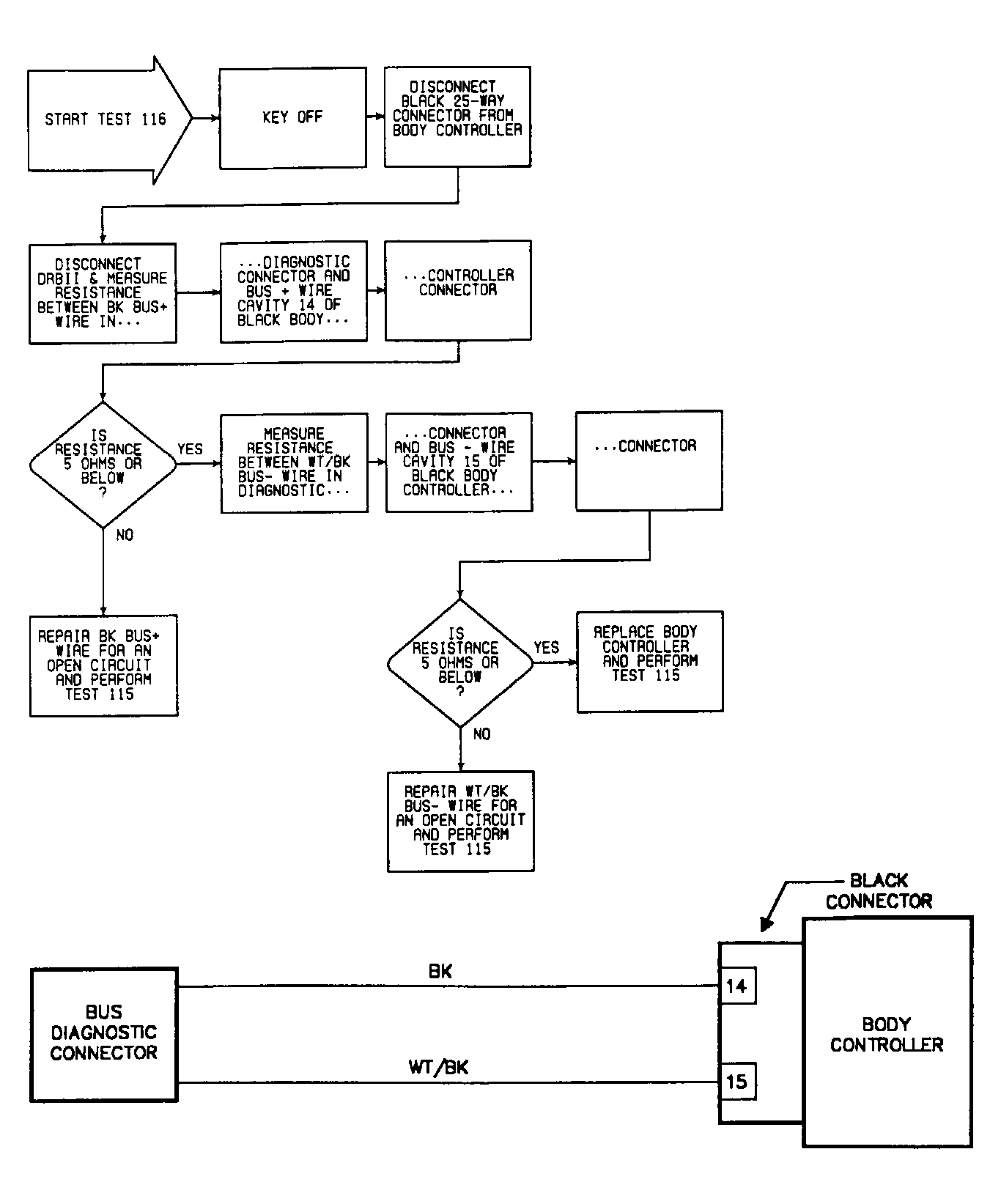

Fig 1: Test 116: Circuit Diagram & Flow Chart
