Dr-1 - Checking System For Faults

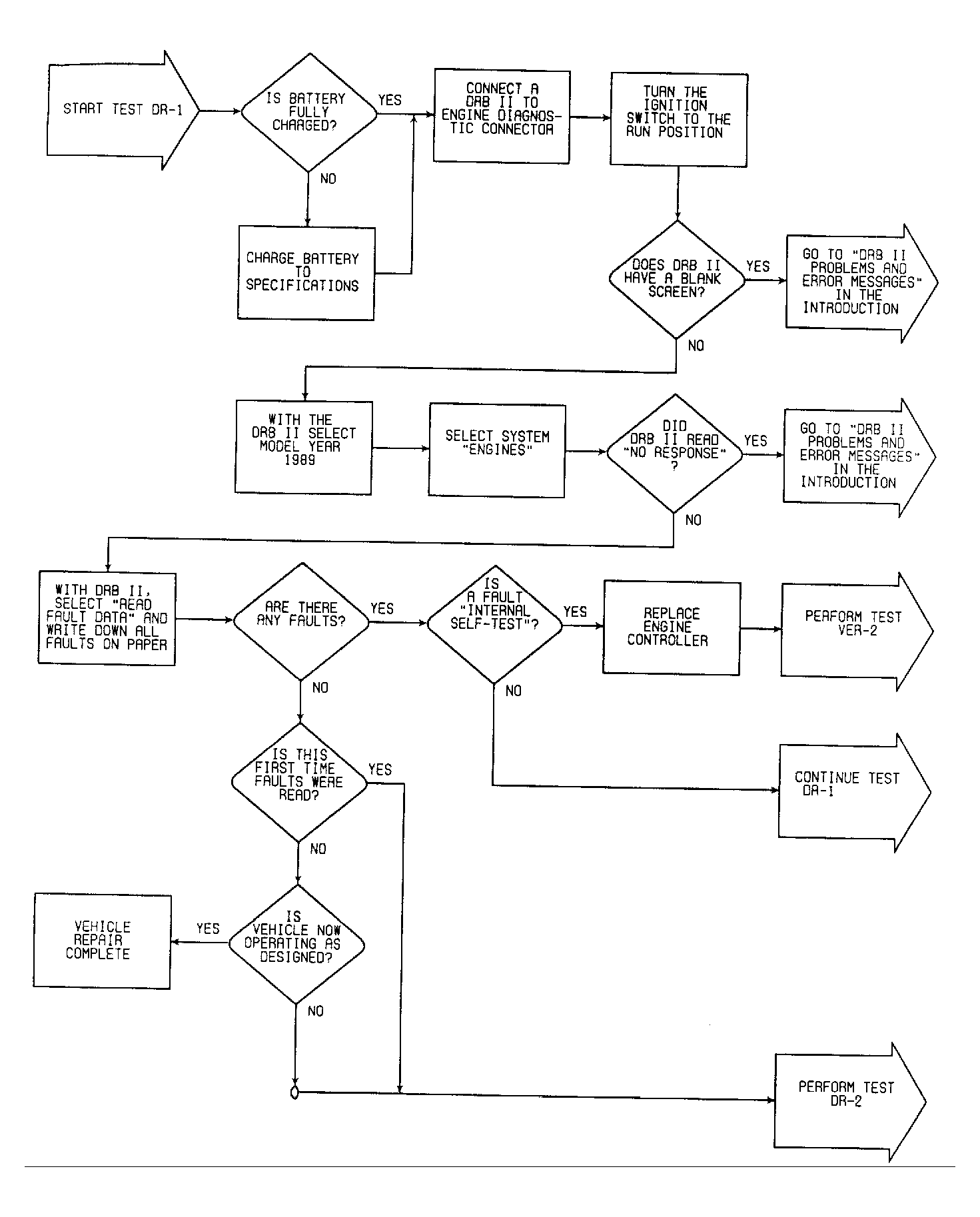

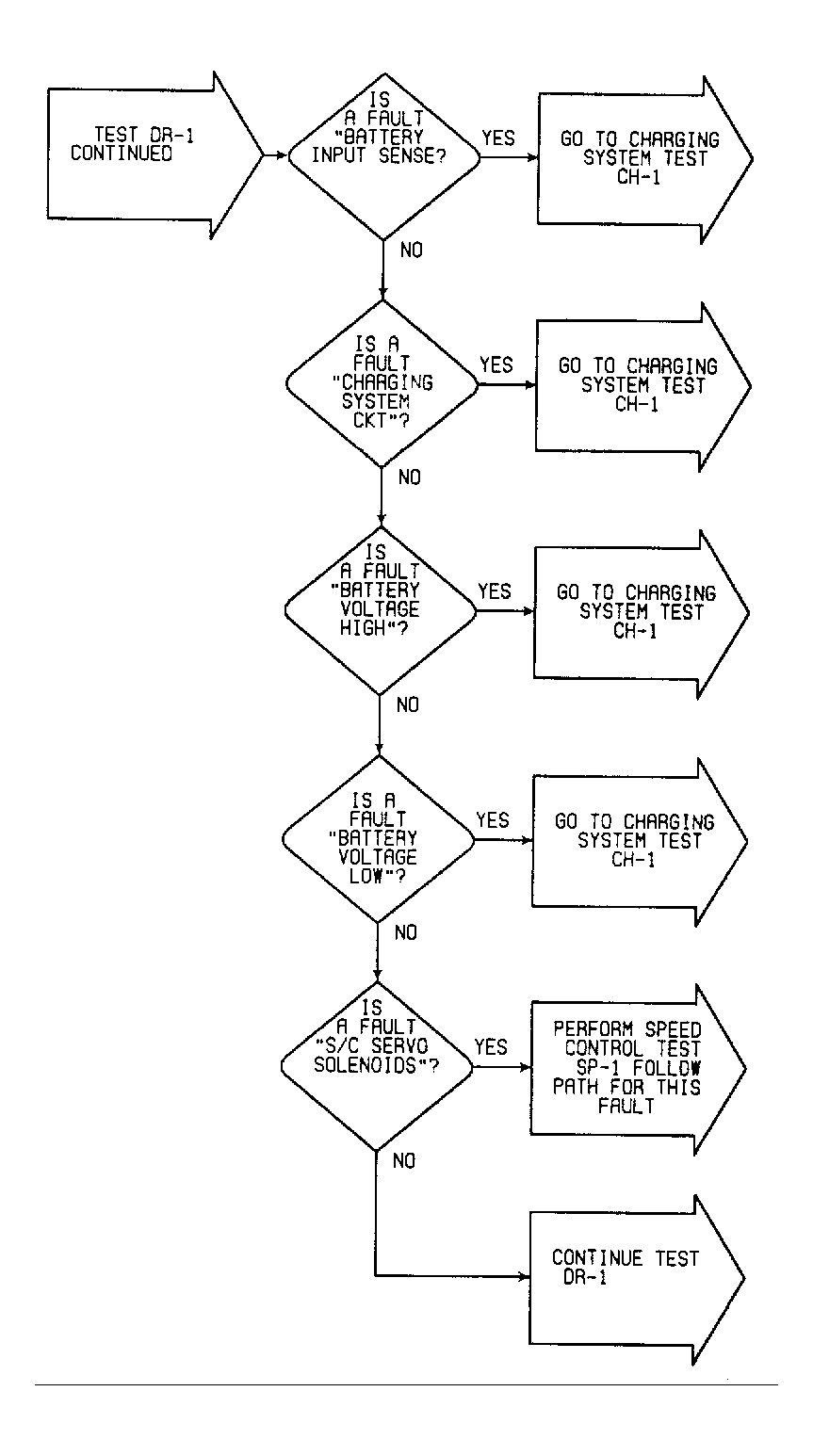

Fig 1: DR-1 - FC (1 of 11), Checking System For Faults

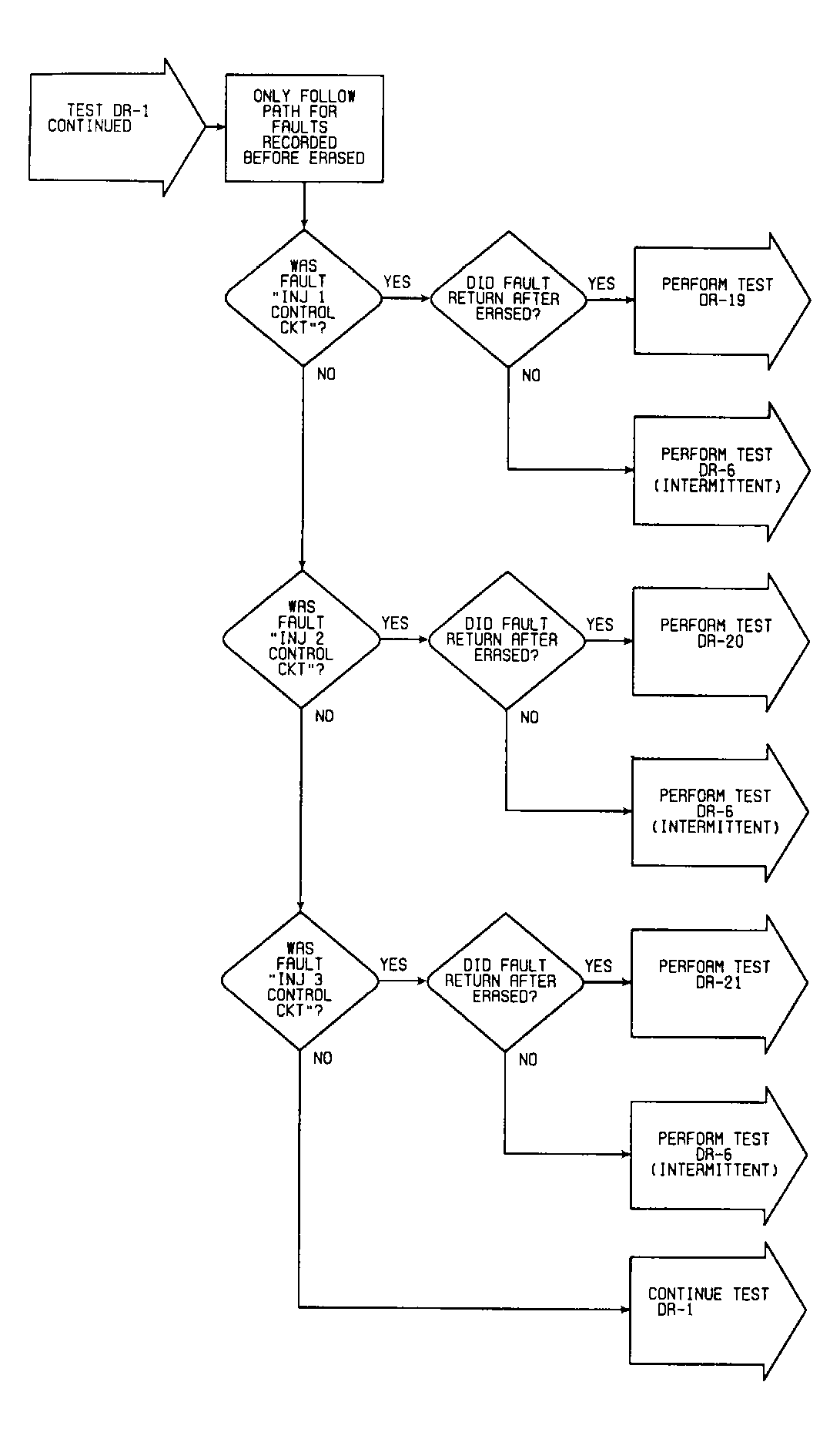

Fig 2: DR-1 - FC (2 of 11), Checking System For Faults

Fig 3: DR-1 - FC (3 of 11), Checking System For Faults

Fig 4: DR-1 - FC (4 of 11), Checking System For Faults

Fig 5: DR-1 - FC (5 of 11), Checking System For Faults

Fig 6: DR-1 - FC (6 of 11), Checking System For Faults

Fig 7: DR-1 - FC (7 of 11), Checking System For Faults

Fig 8: DR-1 - FC (8 of 11), Checking System For Faults

Fig 9: DR-1 - FC (9 of 11), Checking System For Faults

Fig 10: DR-1 - FC (10 of 11), Checking System For Faults

Fig 11: DR-1 - FC (11 of 11), Checking System For Faults
