2.2L/2.5L SPFI Tests/Code
>>
DRIVEABILITY Tests
>>
Dr-7, Checking For Fault Message "Map Pneumatic Signal"
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Dr-7, Checking For Fault Message "Map Pneumatic Signal"

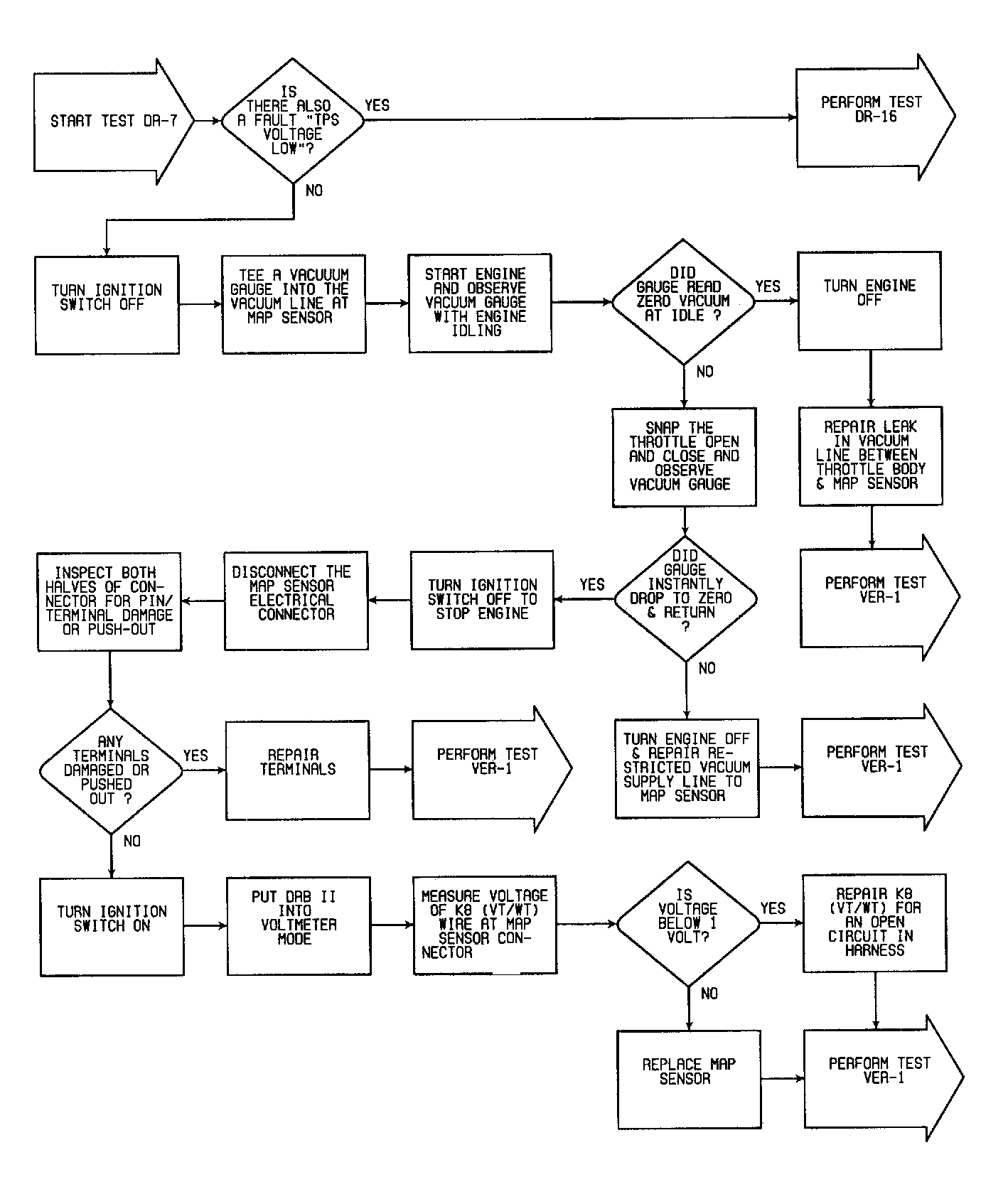

Fig 1: DR-7, Checking For Fault Message "MAP Pneumatic Signal"
