Emission Control Systems: Locations

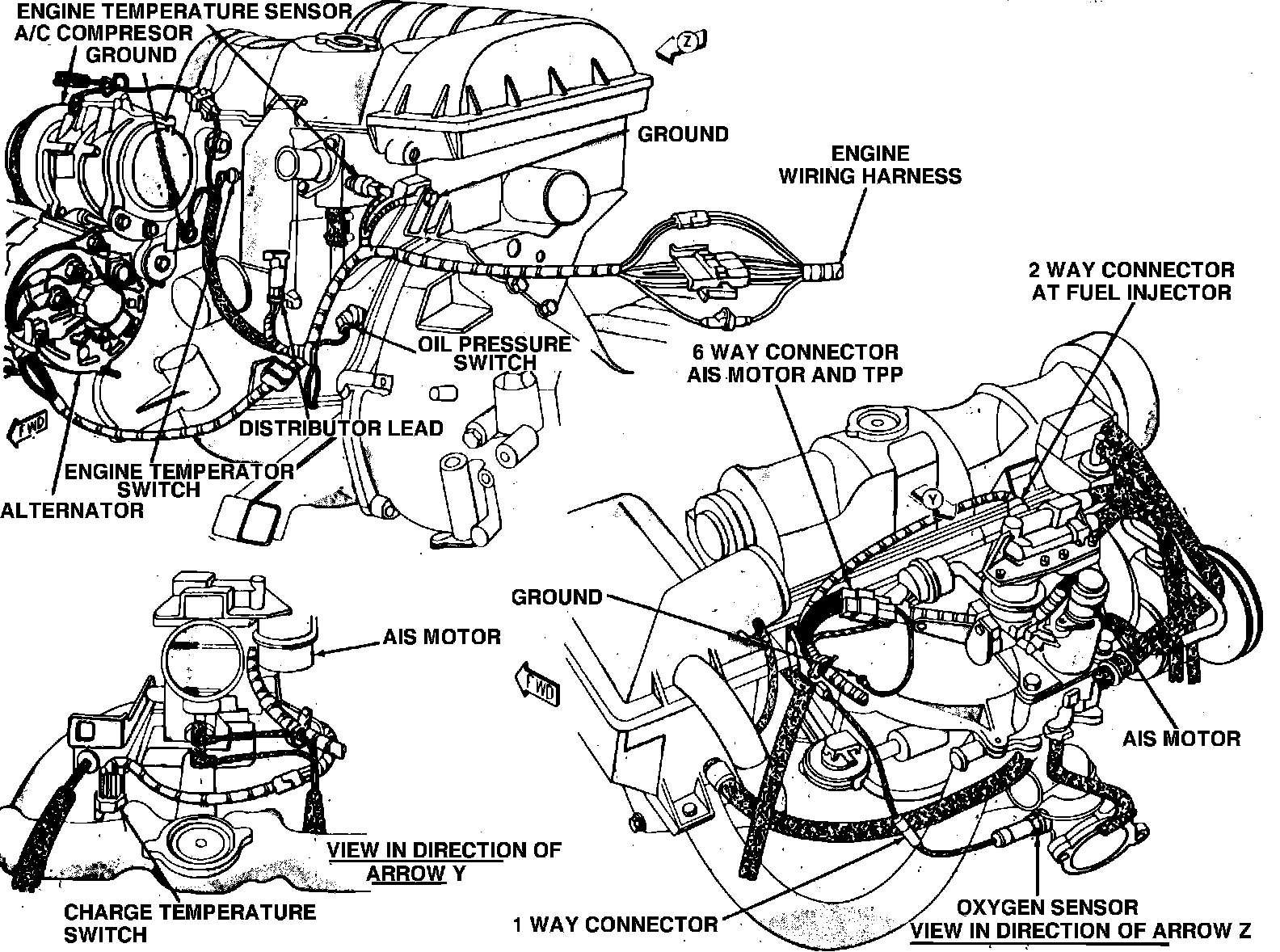

Compartment location. 1983 - 85 front wheel drive models w/EFI:

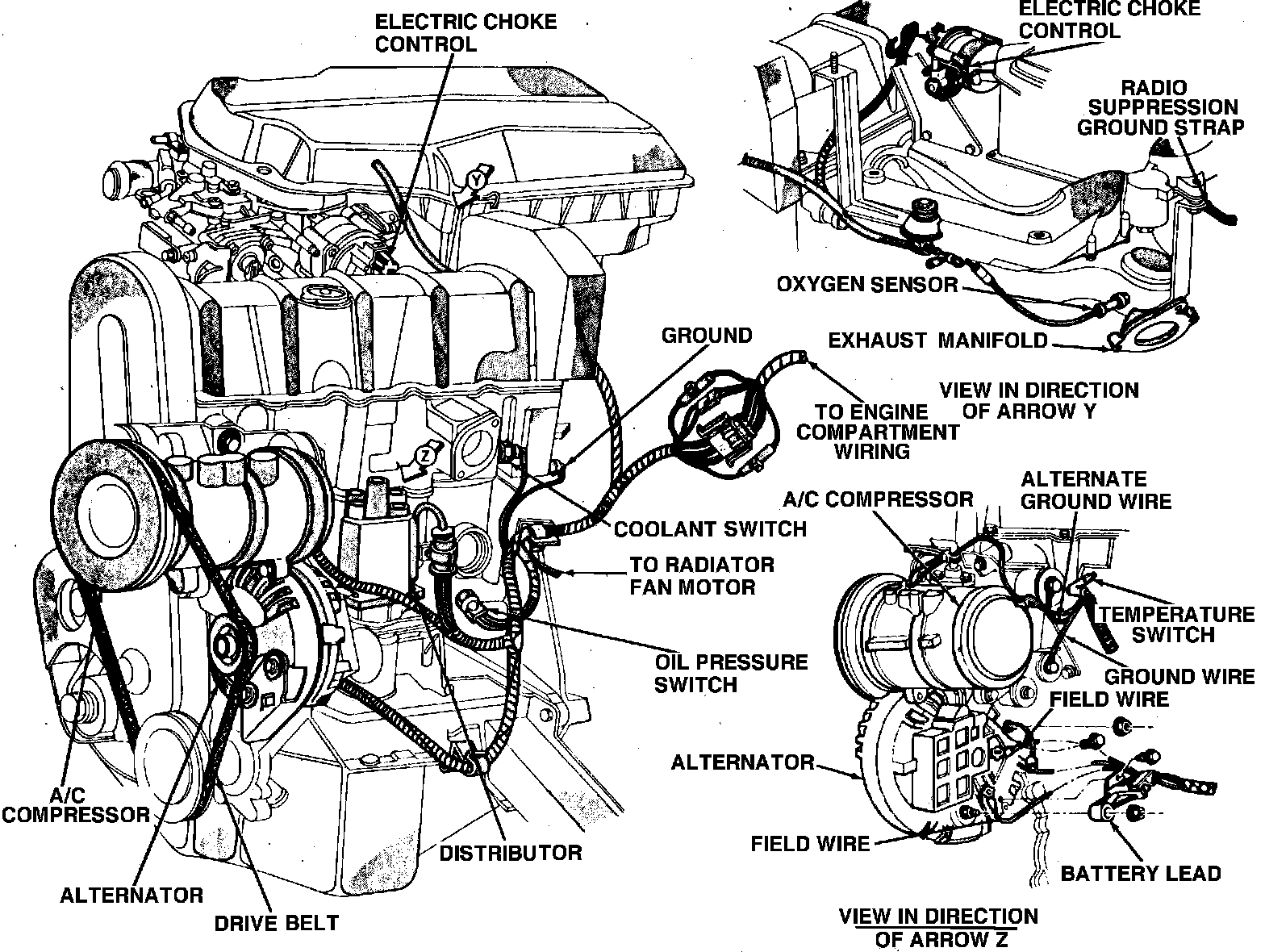

Compartment location. 1982 - 86 4-135/2.2L non-turbocharged engine:
