Fuel Evaporation System: Maintenance

The only service that is required is to check the filter located on the bottom of the charcoal canister every 30,000 miles.

Replacement is only required if the vehicle is frequently driven in dusty areas or the filter is dirty or clogged. All hoses should be inspected periodically and replaced if cracked or leaking.

Fig 1: Evaporation Control System (2.6L)

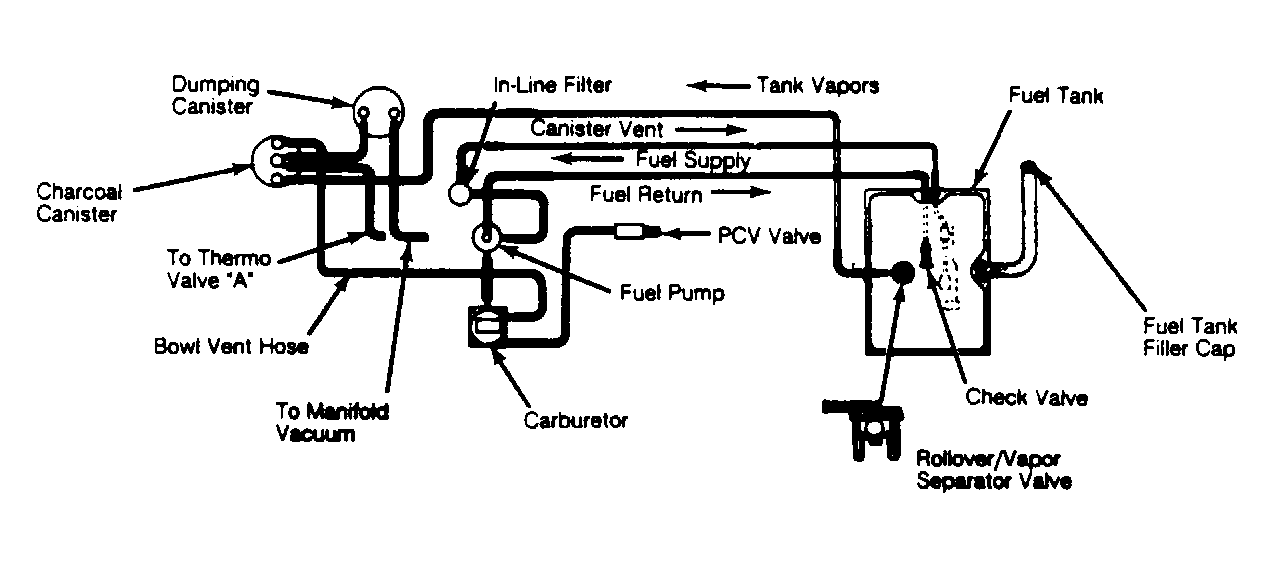

Fig 2: Evaporation Control System (Except 2.6L)
